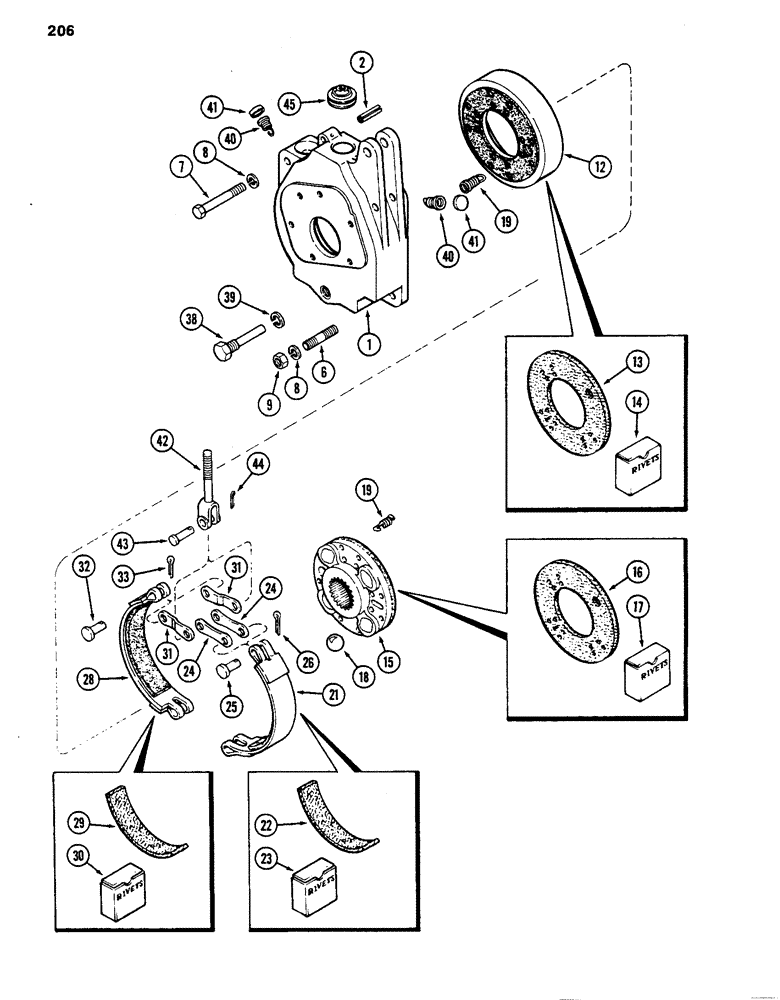

Запчасти Case 480D (206) - DIFFERENTIAL BRAKE HOUSING AND BRAKE, TRANSAXLE, PRIOR TO TRANSMISSION S/N 16270319 (33) - BRAKES & CONTROLS

1

A152924

COVER

HOUSING - brake, right-hand

1шт.

1

A152923

BRAKE

HOUSING - brake, left-hand

2шт.

2

138-2068

PIN,3/8" x 2 1/2", Coiled

2шт.

6

A27637

STUD

- brake housing, 2-5/8 inch

4шт.

7

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex, 1/2 NC x 3-3/4 inch

2шт.

7

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

9

25-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

4шт.

A157157

BRAKE

ASSEMBLY - differential (Replaces A156383) Includes: Ref. 12 - 33

2шт.

12

A47886

BRAKE DRUM

DRUM ASSEMBLY - brake, with lining, Includes: Ref. 13 - 14

1шт.

A44720

LINING

KIT - brake, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

LINING KIT - brake drum (Reference No. A44718)

2шт.

14

A41553

RIVET

- lining retaining, brass alloy (Package of 35)

16шт.

15

A47885

BRAKE DISC

DISC ASSEMBLY - brake, with lining, Includes: Ref. 16 and 17

1шт.

A44720

LINING

KIT - brake, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

LINING KIT - brake disc (Reference No. A44718) Includes: Ref. 17

2шт.

17

A41553

RIVET

- lining retaining, brass alloy (Package of 35)

16шт.

18

211-21

BALL

- 1 inch diameter (25 mm)

4шт.

19

A47524

SPRING

- disc return

2шт.

A48374

BAND ASSEMBLY - brake, inner (Order Components) Includes: Ref. 21 - 26

1шт.

21

A48376

BAND - brake, with lining (Order A48372)

1шт.

A47683

BAND

LINING KIT - brake, Includes: Ref. 22 and 23

2шт.

22

NSS

NOT SOLD SEPARAT

LINING - brake band (Reference No. A44719) Includes: Ref. 23

2шт.

23

A47682

RIVET

- lining retaining, steel (Package of 18)

8шт.

24

G46345

LINK

- inner band actuating

2шт.

25

G49082

PIN,14.22mm OD x 40.03mm L

- clevis, Serial Range: link-band

1шт.

26

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

A48375

BAND ASSEMBLY - brake, outer (Order Components) Includes: Ref. 28 - 33

1шт.

28

A48376

BAND - brake, with lining (Order A48372)

1шт.

A47683

BAND

LINING KIT - brake, Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

LINING - brake band (Reference No. A44719)

1шт.

30

A47682

RIVET

- lining retaining, steel (Package of 18)

8шт.

31

G46344

LINK

- outer band actuating

2шт.

32

G49082

PIN,14.22mm OD x 40.03mm L

- clevis, Serial Range: link-band

1шт.

33

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

38

G15801

BOLT

ANCHOR - brake bands

2шт.

39

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

40

A157705

SPRING

- brake band return (Replaces G156105)

4шт.

41

41-13

GUARD,Exp, 13/16"

- expansion, 13/16 inch (21 mm)

4шт.

42

A154737

ROD

- brake actuating

2шт.

42

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - clevis rod to brake links

2шт.

44

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

45

A135946

DUST CAP

SEAL - dust, brake housing

2шт.
