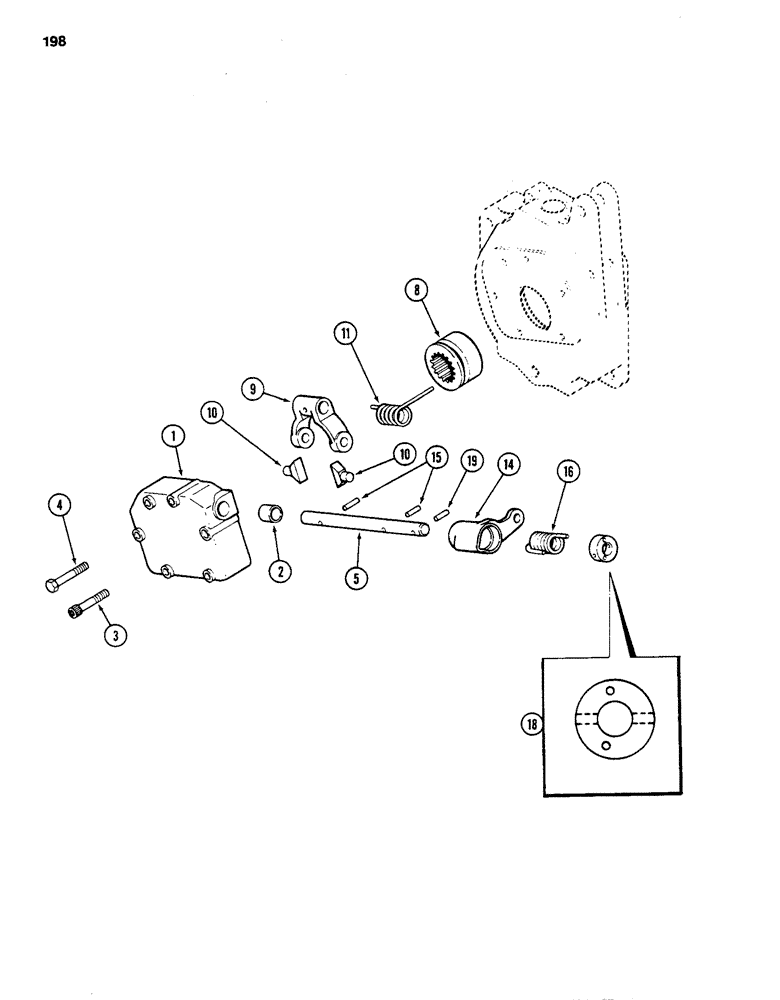

Запчасти Case 480D (198) - DIFFERENTIAL LOCK, TRANSAXLE, PRIOR TO TRANSMISSION S/N 16270319 (27) - REAR AXLE SYSTEM

1

A155606

COVER

ASSEMBLY - lock (on right hand brake housing) Includes: Ref. 2

1шт.

2

A35925

BUSHING

- cover

1шт.

3

61-536

HEX SOC SCREW,5/16"-18 x 2 1/4"

SCREW - hex socket head, 5/16 NC x 2-1/4 inch

1шт.

4

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

5шт.

5

A158384

SHAFT

- actuating (Replaces A148547)

1шт.

8

A156677

COLLAR

- differential lock (Replaces A142029)

1шт.

9

A168524

LEVER

- collar throw-out (Replaces A38749)

1шт.

10

A65101

FINGER

S -, Serial Range: lever-collar

2шт.

11

A156559

SPRING

- throw-out lever (Replaces A35933)

1шт.

14

A148426

LEVER

- actuating

1шт.

15

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

16

A36446

SPRING

- actuating lever

1шт.

18

A154215

RETAINER

- actuating lever spring

1шт.

19

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.
