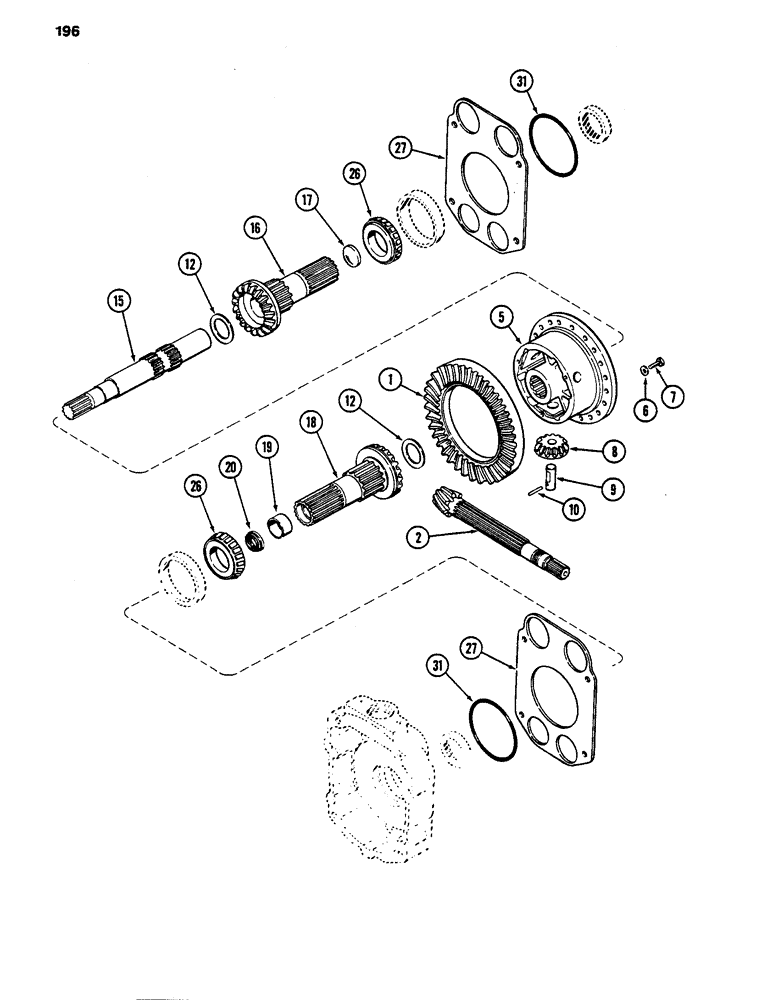

Запчасти Case 480D (196) - TRANSAXLE DIFFERENTIAL, TRANSMISSION S/N 16270319 AND AFTER (27) - REAR AXLE SYSTEM

A168883

GEAR, BEVEL

PINION AND RING GEAR - differential (Matched Set) Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring (Reference No. A168100)

1шт.

2

NSS

NOT SOLD SEPARAT

PINION - bevel (Reference No. A168824)

1шт.

5

A179986

HUB

WHEEL - center

1шт.

6

A155847

WASHER

- wheel bolt

20шт.

7

28-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8, Full Thd

BOLT - hex, 3/8 NF x 7/8 inch

20шт.

8

A179762

PINION

GEAR - pinion

3шт.

9

A153711

PIN,22.16mm OD x 62.74mm L

- pinion gear

3шт.

10

A140705

PIN

- groove, 3/16 x 2 inch

3шт.

12

A154141

WASHER

- thrust, center wheel, 0.079 inch (2.01 mm)

1шт.

12

A153717

WASHER

- thrust, center wheel, 0.084 inch (2.13 mm)

1шт.

12

A153712

WASHER

- thrust, center wheel, 0.089 inch (2.26 mm)

1шт.

12

A153713

WASHER

- thrust, center wheel, 0.094 inch (2.40 mm)

1шт.

12

A153714

WASHER

- thrust, center wheel, 0.099 inch (2.52 mm)

1шт.

12

A153715

WASHER

- thrust, center wheel, 0.104 inch (2.66 mm)

1шт.

12

A153716

WASHER

- thrust, center wheel, 0.109 inch (2.78 mm)

1шт.

15

A156376

SHAFT

- cross (Replaces A153706)

1шт.

16

A158745

GEAR

ASSEMBLY - side, left-hand, Includes: Ref. 17

1шт.

17

41-1028

PLUG,Cup, 1 3/4"

- expansion, 1-3/4 inch (44 mm)

1шт.

18

A158744

GEAR

ASSEMBLY - side, right-hand, Includes: Ref. 19 and 20

1шт.

19

A153719

BUSHING,38.16mm ID x 44.55mm OD x 20.65mm L

Gear

1шт.

20

A179053

OIL SEAL

- oil, right-hand side gear

2шт.

26

A7891

ROLLER BEARING

CONE - bearing, 2-1/2 inch ID (64 mm)

2шт.

27

A179076

SHIM,.007" Thk

Bearing carrier (0.20 mm) .007" Thk

1шт.

27

A179075

SHIM,.005" Thk

Bearing carrier (0.14 mm) .005" Thk

1шт.

27

A179077

SHIM

- bearing carrier, 0.010 inch (0.26 mm)

1шт.

31

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

- housing

2шт.
