Запчасти Case 480D (186) - SHIFTER MECHANISM, TRANSAXLE (27) - REAR AXLE SYSTEM

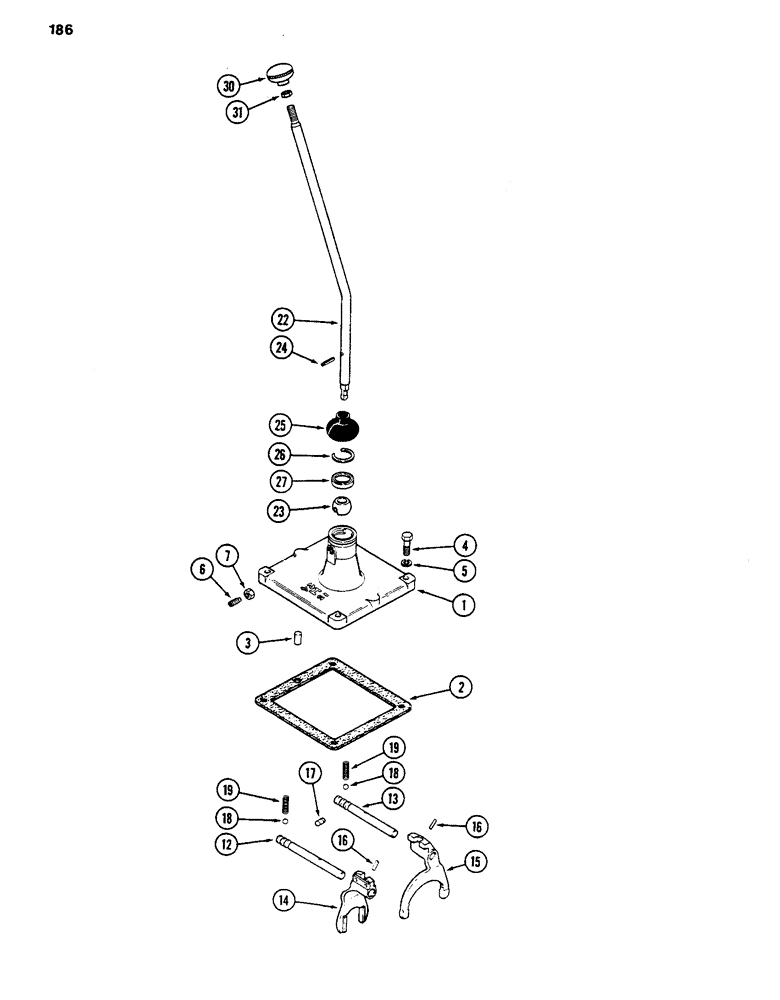

Схема запчастей Case 480D - (186) - SHIFTER MECHANISM, TRANSAXLE (27) - REAR AXLE SYSTEM

Артикул

Название

Примечание

Количество

1

A138312

COVER

- shift control

1шт.

2

G10342

GASKET

- cover to transmission housing

1шт.

3

138-245

LOCK PIN,1/2" x 7/8", Slotted

Pin, 1/2" x 7/8", Slotted

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

G15468

SET SCREW,5/16" - 18 x 3/4"

- set, 5/16 inch NC

1шт.

7

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex jam lock, 5/16 inch NC

1шт.

12

A138313

RAIL ASSY.

RAIL - shifter, first and second gear

1шт.

13

A140578

RAIL ASSY.

RAIL - shifter, third and fourth gear

1шт.

14

A51964

FORK

ASSEMBLY - shift, first and second gear

1шт.

15

A150726

FORK

- shifter, third and fourth gear

1шт.

16

138-2009

PIN,3/16" x 1", Coiled

2шт.

17

A29060

PLUG

- interlock, shifter rails

1шт.

18

211-28

BALL,13/32" Dia

- detent, 13/32 inch diameter (10 mm)

2шт.

19

G47039

SPRING

- tension, detent ball

2шт.

22

A154286

LEVER

ASSEMBLY - shift, transmission, Includes: Ref. 23, 24

1шт.

23

A144397

BALL

- lever

1шт.

24

A156515

PIN

- groove, lever ball

1шт.

25

A26956

DUST CAP

CAP - dust

1шт.

26

A26836

RING, SNAP

RING - snap

1шт.

27

A7923

SEAT

- lever, shift

1шт.

30

D69105

KNOB

- lever, shift

1шт.

31

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

Выбрано товаров: 23
