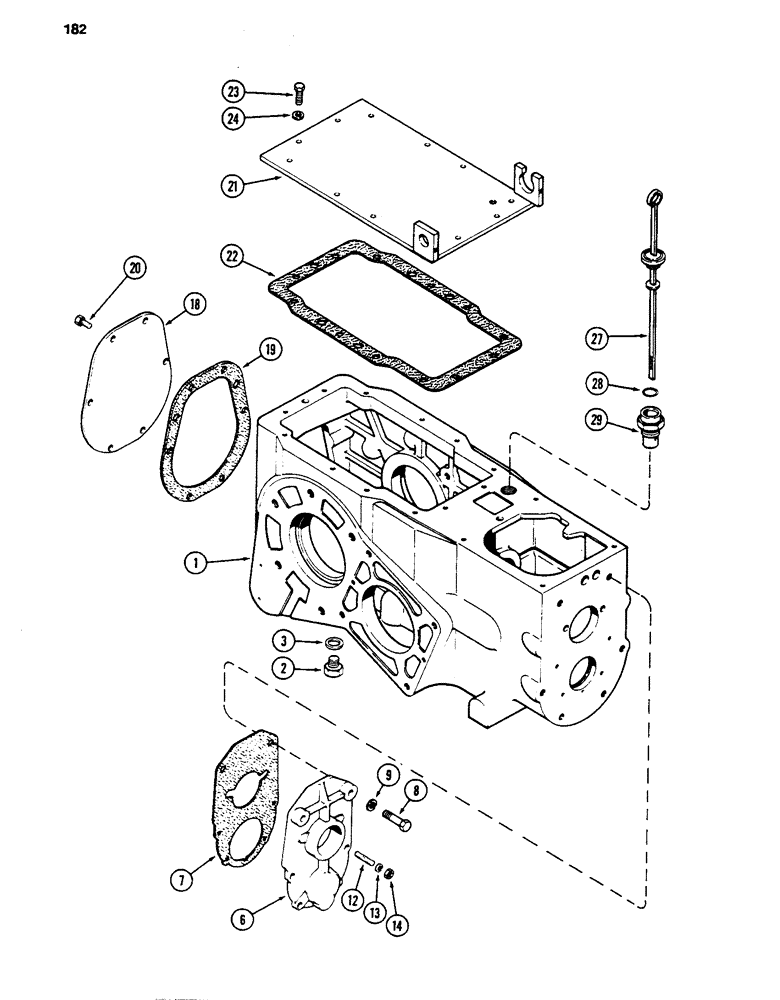

Запчасти Case 480D (182) - TRANSMISSION HOUSING, TRANSAXLE, PRIOR TO TRANSMISSION S/N 16270319 (27) - REAR AXLE SYSTEM

1

A157661

HOUSING

- transmission (Replaces A156247)

1шт.

2

A140222

PLUG

- drain, transmission housing

1шт.

3

A58608

GASKET

- drain plug

1шт.

6

A51953

COVER

- transmission housing, front

1шт.

Seal for top hole in cover is A155950.

1шт.

7

G46849

GASKET

- front cover to transmission housing

1шт.

8

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

12

A29717

STUD

- center, 3/8 NC - NF x 1-1/2 inch

2шт.

12

G10710

STUD

- bottom, 3/8 NC - NF x 1-3/4 inch

2шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8 inch NF

4шт.

18

A39105

COVER

- transmission housing, rear

1шт.

19

G10447

GASKET

- rear cover to transmission housing

1шт.

J I Case installed housing may not have a cover gasket. If rear housing cover is removed, install a gasket before reassembly.

1шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

21

A155700

COVER

- transmission housing, top rear

1шт.

22

1342370C1

GASKET

- top cover to transmission housing; Replaces A152450

1шт.

23

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch (Grade 8)

10шт.

24

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

10шт.

27

A154967

DIPSTICK

- oil gauge, Includes: Ref. 28

1шт.

28

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- dipstick

1шт.

29

A154850

TUBE

- dipstick and oil filler

1шт.
