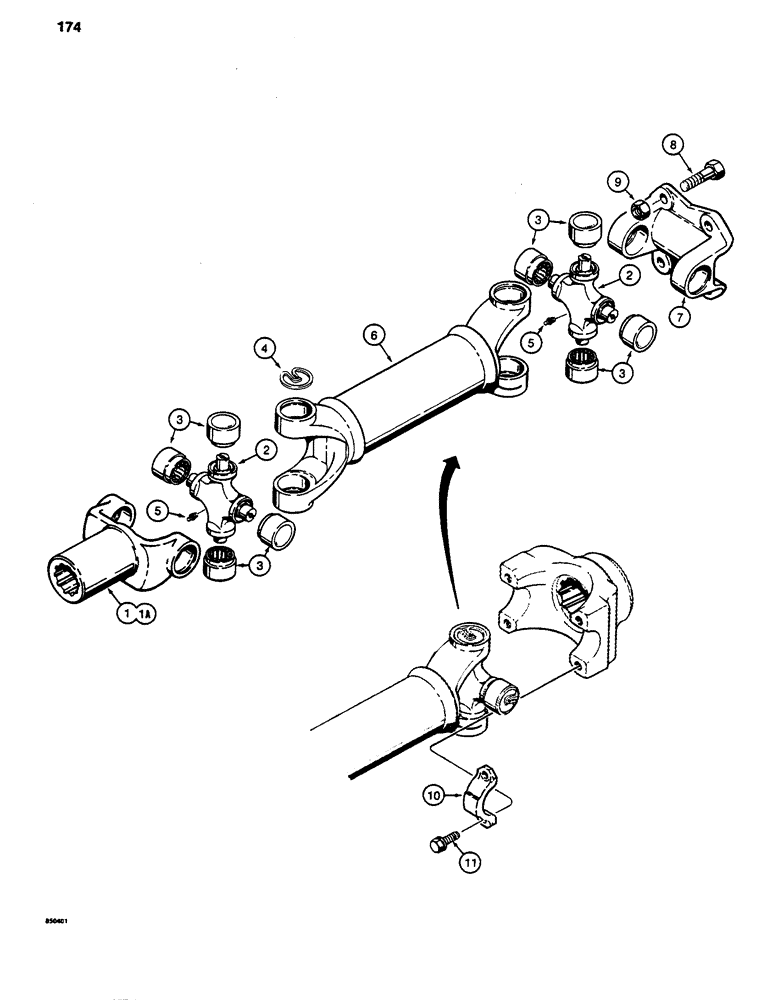

Запчасти Case 480D (174) - DRIVE SHAFT, POWER SHUTTLE TO TRANSAXLE (21) - TRANSMISSION

D75785

DRIVE SHAFT

ASSEMBLY - to transaxle, mounts to power shuttle with W13668 bracket, Ref. 7, Includes: Ref. 1 - 7

1шт.

D128557

DRIVE SHAFT

ASSEMBLY - to transaxle, mounts to power shuttle with D124146 strap, Ref. 10, Includes: Ref. 1 - 7

1шт.

1

D75847

YOKE

- end, to transaxle, used with D75785 drive shaft only, Includes: Ref. 1B

1шт.

1a

N9815

YOKE

- end, to transaxle, used with D128557 drive shaft only, Includes: Ref. 1B

1шт.

1b

N13653

PLUG

- grease, N9815 yoke, not shown

1шт.

D70629

U-JOINT SPIDER

KIT - universal joint, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - center cross

1шт.

3

NSS

NOT SOLD SEPARAT

NEEDLE BEARING - universal joint

4шт.

4

11256

SNAP RING

- retaining

4шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF, taper

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - drive

1шт.

7

W13668

YOKE

BRACKET - flanged, front, to power shuttle, used with D75785 drive shaft only

1шт.

8

114-266

BOLT,Hex, 3/8" - 24 x 1", Gr 8, Full Thd

Special thread length, used with W13668 bracket Hex, 3/8"-24 x 1", G8, Full Thd

4шт.

9

80855

NUT,Hex, 3/8" - 24

NUT - hex, self-locking, 3/8" - 24 NF, used with W13668 bracket

4шт.

10

D124146

CLAMP

STRAP - bearing, used with D128557 drive shaft only

2шт.

11

D124151

BOLT

- special, used with D124146 strap

4шт.
