Запчасти Case 480D (160) - POWER SHUTTLE MOUNTING AND DIPSTICK (21) - TRANSMISSION

1

REF

INSTRUCTION

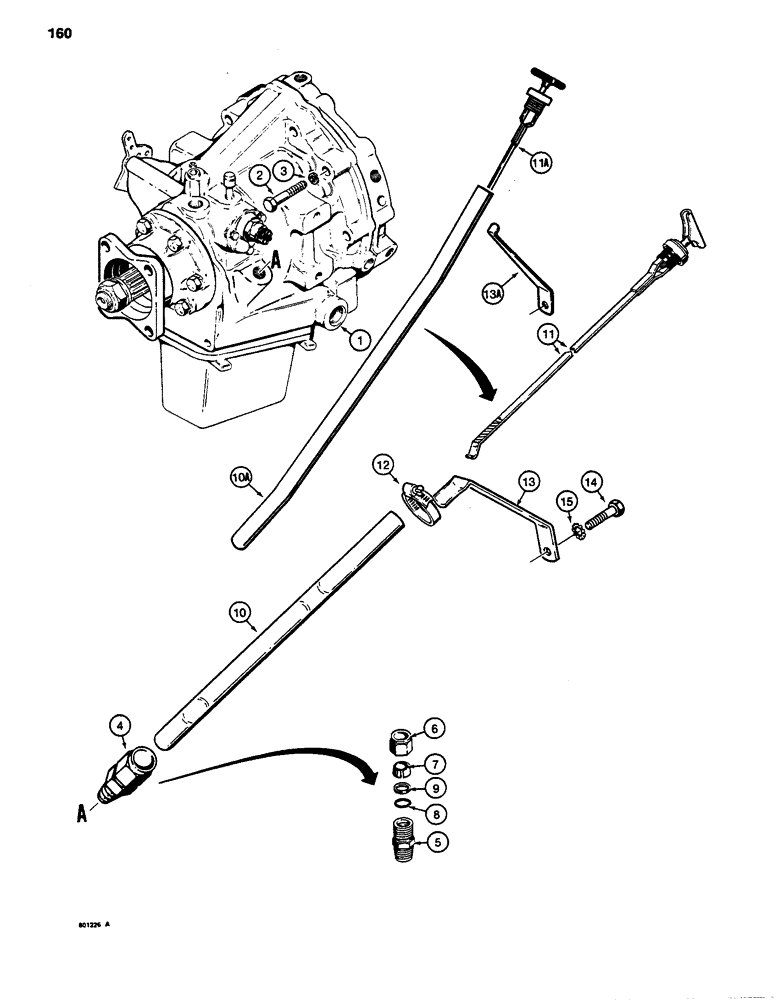

POWER SHUTTLE - for correct assembly and components, see parts list Figures 162 - 170

1шт.

2

113-329

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

- hex head, 7/16" - 14 NC x 3-1/4", plated

6шт.

3

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

4

222-3006

FITTING,1 1/2"-12 x 3/4" NPT

CONNECTOR ASSEMBLY - straight, power shuttle to dipstick tube, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

6

222-3111

TUBE NUT,1"-12

NUT - connector

1шт.

7

222-3105

SLEEVE,1" Tube

- connector

1шт.

8

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- connector

1шт.

9

D54295

RING

BACKUP RING - connector O-ring

1шт.

10

D76129

TUBE,1" OD x 9.746, 13.852" L

- filler, power shuttle, used with Ref. 11 only

1шт.

10a

D88410

TUBE,25.4 mm OD x 219, 441 mm L

- filler, power shuttle, used with Ref. 11A only

1шт.

11

D78855

DIPSTICK,653.8mm L

- power shuttle, 23-7/8" long, used with Ref. 10 only

1шт.

11a

D88856

DIPSTICK,721.2mm L

- power shuttle, 26-1/2" long, used with Ref. 10A only

1шт.

12

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- tube #16, 0.81/1.50 Type F Worm

1шт.

13

D76474

BRACKET

SUPPORT - filler tube, used with Ref. 10 only

1шт.

13a

D88857

BRACKET

SUPPORT - filler tube, used with Ref. 10A only

1шт.

14

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

15

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

1шт.
