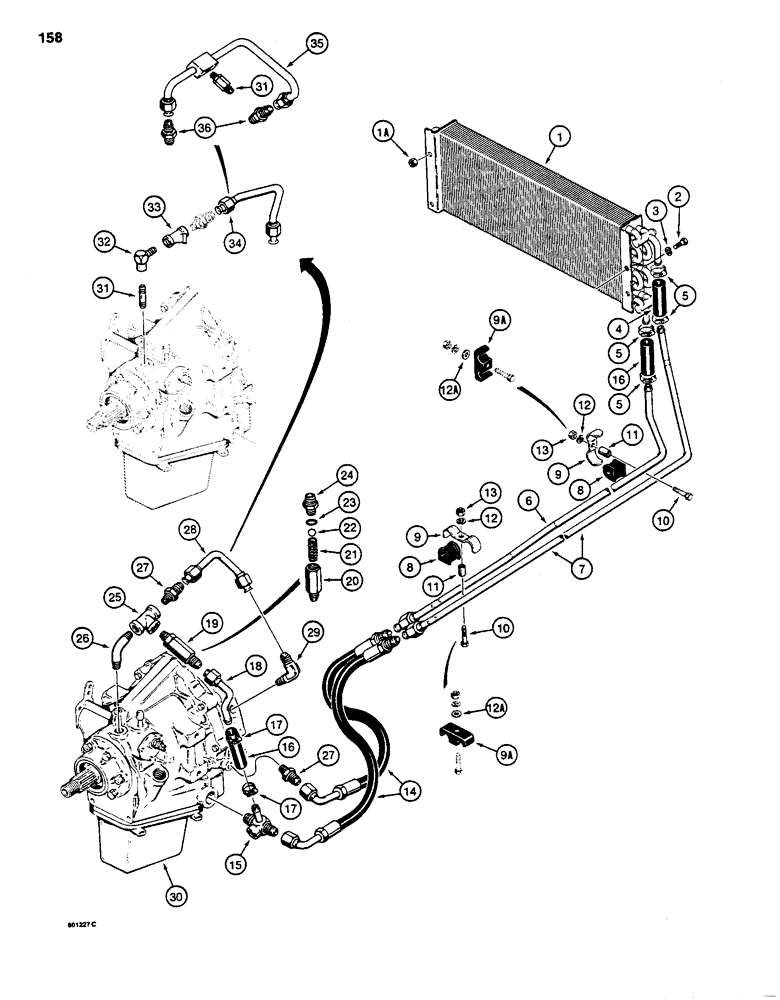

Запчасти Case 480D (158) - POWER SHUTTLE COOLING SYSTEM (21) - TRANSMISSION

1

D76097

COOLER

OIL COOLER - power shuttle

1шт.

1a

9635082

NUT,5/16" - 18, Gr 5

LH side only, if used 5/16"-18, G5

2шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

4

L59112

HOSE,0.50" ID x 8.00", SAE 100R3

Cooler to Tube 0.50" ID x 8.00", SAE 100R3

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

6

D99828

TUBE,12.7 mm OD x 746, 143 mm L

- cooler inlet

1шт.

7

D99826

TUBE,12.7 mm OD x 809, 102 mm L

- cooler outlet

1шт.

8

D67296

GROMMET

INSULATOR - tube, if used

4шт.

9

D68646

CLAMP

- tube, metal, if used

2шт.

9a

D120679

CLAMP,Tube, 1/2"

- tube, plastic, replaces metal tube clamp on some models

2шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

11

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp, if used

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12a

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, used with plastic tube clamp

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

D69051

HOSE

- 18" (457 mm) long, power, Serial Range: shuttle-tubes

2шт.

15

D68972

CONNECTOR, ELEC

FITTING - four-way

1шт.

16

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

Inlet 12.7 mm ID x 101.60 mm, SAE 100R3

2шт.

17

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

18

D68973

HYD TUBE,0.5" OD x 4.84, 2.51" L

TUBE - outlet

1шт.

19

D48540

VALVE POPPET

RELIEF VALVE ASSEMBLY - power shuttle, Includes: Ref. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

21

S73472

SPRING

- relief valve

1шт.

22

211-212

BALL

- 7/16", grade 25, chrome alloy steel

1шт.

23

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- seat

1шт.

24

S73469

SEAT, VALVE

SEAT - spring

1шт.

25

221-423

TEE,3/8" NPT

- , if used 3/8" NPT

1шт.

26

D48539

FITTING

ELBOW - 75 degree, special, if used

1шт.

27

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, male

1-2шт.

28

D48523

TUBE

- inlet, if used

1шт.

29

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, male, if used

1шт.

30

REF

INSTRUCTION

POWER SHUTTLE ASSEMBLY - for correct assembly and components, see Figures 162 - 170

1шт.

31

221-164

FITTING,Nipple, 3/8" NPT x 2"

NIPPLE - 3/8" NPT x 2", if used

1шт.

32

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

STREET ELBOW - 90 degree, 3/8" NPT, if used

1шт.

33

221-823

FITTING

Y-TYPE FITTING - 3/8" NPT, if used

1шт.

34

D125845

TUBE ASSY.

TUBE - inlet, if used

1шт.

D135703

PIPE ASSY.

TUBE - power shuttle, Ref. 19 - 24, 35 and 36 are included in D135731 power shuttle assembly and may replace Ref. 25 - 29 and 31 - 34

1шт.

35

NSS

NOT SOLD SEPARAT

TUBE - power shuttle

1шт.

36

NSS

NOT SOLD SEPARAT

CONNECTOR - with sleeve and nut

2шт.
