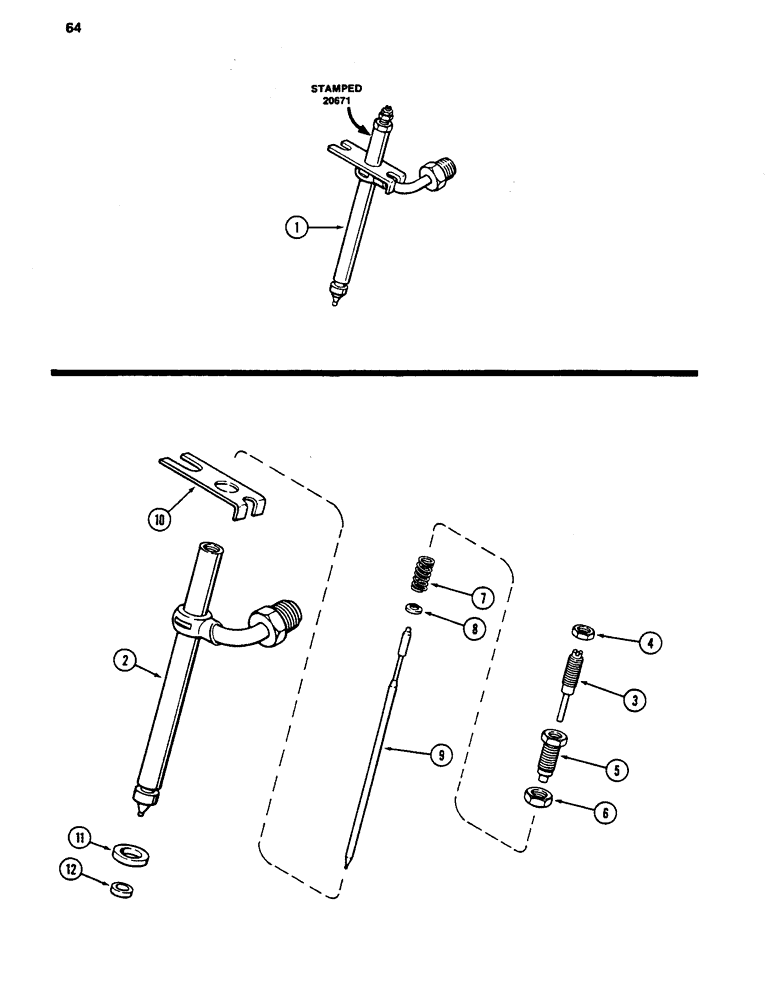

Запчасти Case 480D (064) - INJECTION NOZZLE, 188 DIESEL ENGINE (10) - ENGINE

1

AR140829

REMAN-INJECT NOZZLE

NOZZLE ASSEMBLY - injector (Remanufactured)

1шт.

1

AC140829

CORE-NOZZLE, INJECT

RETURN NUNBER - injector (Use this number when returning injector for credit)

1шт.

1

A140829

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injector (New) (Stamped 20671 on body) (White code) Includes: Ref. 2 - 12

4шт.

Whenever a nozzle is removed from the head, A41403 washer and A41402 seal must be replaced before the nozzle is installed back into the head.

1шт.

A140829R

REMAN-INJECT NOZZLE

480LL, 480D

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A43733

SPRING

- pressure, 9/16 inch free length with red stain (14 mm)

1шт.

8

A44369

SEAT

- pressure spring

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A43506

PLATE ASSY.

PLATE - nozzle hold down

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
