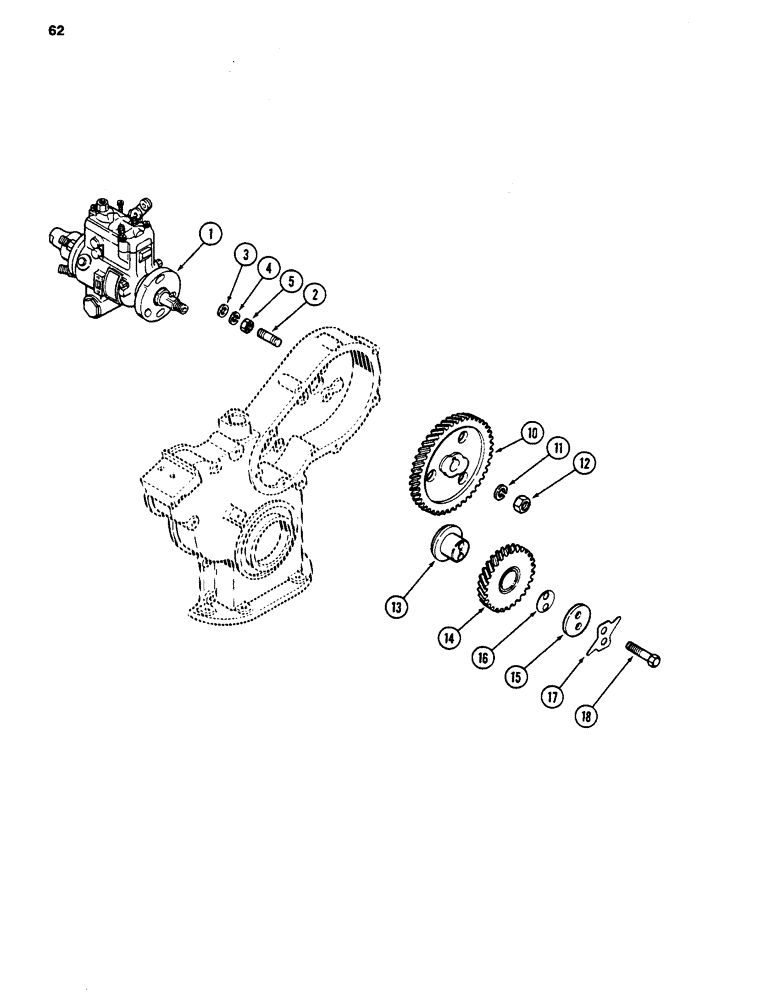

Запчасти Case 480D (062) - INJECTION PUMP DRIVE, 188 DIESEL ENGINE (10) - ENGINE

1

REF

INSTRUCTION

PUMP ASSEMBLY - injection (See Figure 60)

1шт.

2

G11204

STUD

- pump mounting, 1-7/16 inch (Order G102128)

3шт.

3

A30043

WASHER

- mounting

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

3шт.

10

G2076

GEAR

- drive, injection pump

1шт.

11

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

12

25-159

JAM NUT,Jam, 9/16"-18, G5

- hex jam, 9/16 inch NF

1шт.

13

G11726

HUB

- idler gear

1шт.

14

G11852

GEAR

ASSEMBLY - idler (Includes bushing)

1шт.

15

G11732

PLATE

- thrust, idler gear

1шт.

16

G11728

SHIM,.005" Thk

Idler gear (0.13 mm) .005" Thk

1шт.

16

G11729

SHIM,.006" Thk

Idler gear (0.15 mm) .006" Thk

1шт.

16

G11730

SHIM,.007" Thk

Idler gear (0.18 mm) .007" Thk

1шт.

16

G11731

SHIM,.009" Thk

Idler gear (0.23 mm) .009" Thk

1шт.

17

G11746

PLATE

- lock, idler gear

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
