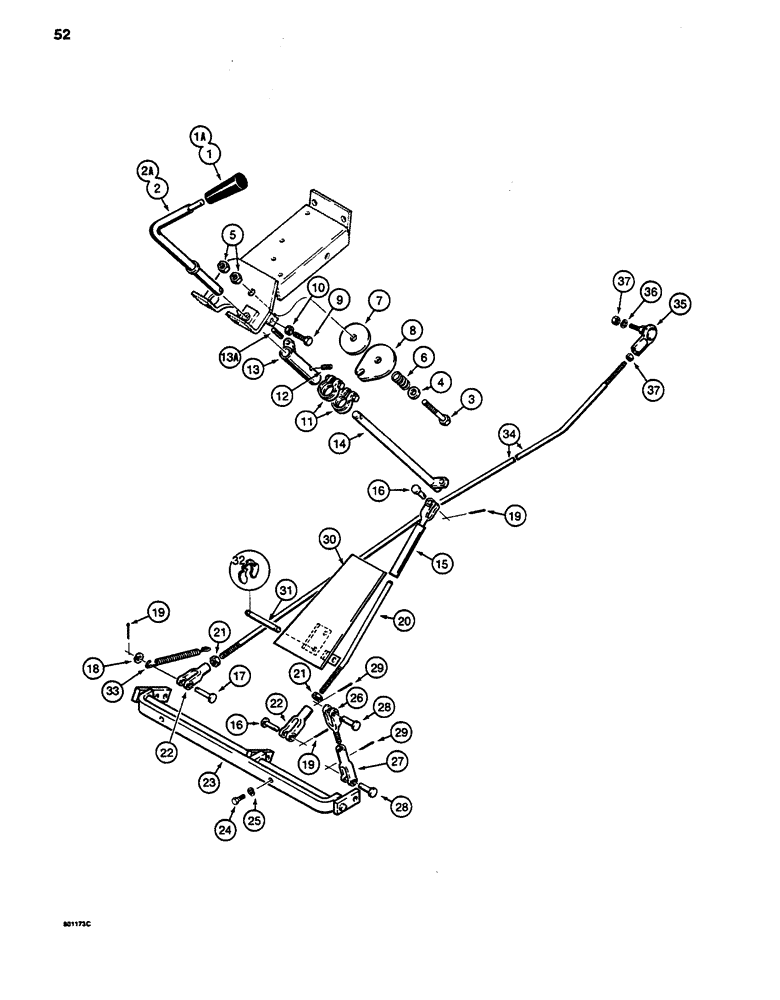

Запчасти Case 480D (052) - THROTTLE CONTROL LINKAGE (10) - ENGINE

1

A37247

KNOB

- hand throttle, 3-7/8" long, used with D76429 lever, if used

1шт.

1a

D86694

KNOB

- hand throttle, 4-1/4" long, used with D135055 lever

1шт.

2

D76429

LEVER

CONTROL LEVER - hand throttle, used with A37247 3-7/8" long knob, no longer available, order D135055 lever and D86694 knob

1шт.

2a

D135055

LEVER

CONTROL LEVER - hand throttle, used with D86694 4-1/4" long knob

1шт.

3

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

1шт.

4

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

6

A34113

SPRING

- detent

1шт.

7

R15071

DISC

- friction

1шт.

8

D66096

LARGE PLATE

PLATE - throttle linkage

1шт.

9

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

11

D71880

CLAMP,22.23mm

- throttle linkage

2шт.

12

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

2шт.

13

D71815

CLAMP

RETAINER - control lever, Includes: Ref. 13A

1шт.

13a

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, 1/4" x 5/8", Slotted

1шт.

14

D71820

SHAFT

- throttle

1шт.

15

D66655

ROD

SLEEVE - throttle

1шт.

16

141-53

CLEVIS PIN,5/16" x .940"

plated, rod ends 5/16" x .940"

2шт.

17

141-60

CLEVIS PIN,5/16" x 1 1/8"

- 5/16", special length, throttle control rod

1шт.

18

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

19

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

20

D68266

ROD

- throttle

1шт.

21

129-122

NUT,5/16"-24, G5

2шт.

22

H44198

YOKE

CLEVIS - rod end, metal, plated, replaces fiberglass clevis on some models

2шт.

23

D75201

SHAFT

- throttle

1шт.

24

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

D68186

YOKE

CLEVIS - special male

1шт.

27

H44198

YOKE

CLEVIS - female, metal, plated, replaces fiberglass clevis on some models

1шт.

28

141-53

CLEVIS PIN,5/16" x .940"

plated, at pedal and shaft 5/16" x .940"

2шт.

29

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

30

D99879

PEDAL

- foot throttle

1шт.

31

D66055

PIN,9.53mm OD x 79.25mm L

- pivot

1шт.

32

D95093

RING

SNAP RING - retaining

2шт.

33

D93823

SPRING

- throttle return

1шт.

34

D75463

ROD

- throttle control

1шт.

35

D63154

JOINT,1/4" - 28 x 1-1/3"

BALL JOINT - 1/4"

1шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

37

129-121

NUT,1/4"-28, G5

2шт.
