Запчасти Case 480D (050) - FUEL TANK AND FUEL LINES (10) - ENGINE

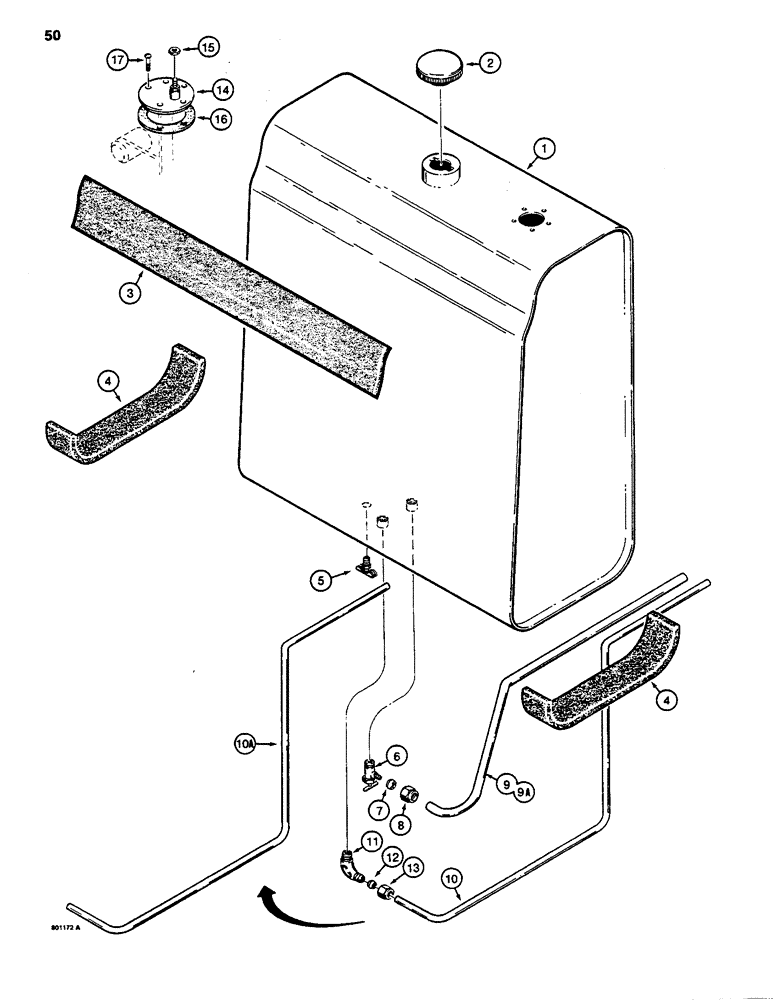

Схема запчастей Case 480D - (050) - FUEL TANK AND FUEL LINES (10) - ENGINE

Артикул

Название

Примечание

Количество

1

D87871

FUEL TANK

- diesel fuel

1шт.

2

A51390

CAP

- fuel tank

1шт.

3

D86157

RUBBER

STRIP - sponge rubber, rear, for front strip see Figure 16, Ref. 13

1шт.

4

D93351

FOAM

STRIP - sponge rubber, bottom

2шт.

5

217-81

VALVE

- fuel tank drain

1шт.

D74027

VALVE

SHUTOFF VALVE ASSEMBLY - fuel tank outlet, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - shutoff valve

1шт.

7

222-654

FERRULE,3/8" Tube, Comp

- compression fitting

1шт.

8

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - compression fitting

1шт.

9

D99133

FUEL TUBE,9.53 mm OD x 459, 147 mm L

TUBE - fuel supply, 3/8", used before tractor SN 9071028

1шт.

9a

D123057

LINE

TUBE - fuel supply, 3/8", used on tractor SN 9071028 and after

1шт.

10

D99134

TUBE

- fuel return, 1/4", used before tractor SN 9071028, no longer available, order D123058 tube, when replacing this tube, must order both D123057 fuel supply tube and D123058 fuel return tube

1шт.

10a

D123058

TUBE

- fuel return, 1/4", used on tractor SN 9071028 and after

1шт.

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - 90 degree, compression fitting, inlet, Includes: Ref. 11 -13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

12

222-102

SLEEVE,1/4" Tube

Compression fitting 1/4" Tube

1шт.

13

87017024

TUBE NUT,1/2"-24

NUT - compression fitting

1шт.

14

D83480

TRANSMITTER

SENDER - fuel level gauge

1шт.

15

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER - No. 10 - 32 NF, plated

1шт.

16

A11822

GASKET

- fuel sender

1шт.

17

D75465

SCREW,#10 - 32 x 5/8"

- special sealing

5шт.

Выбрано товаров: 21
