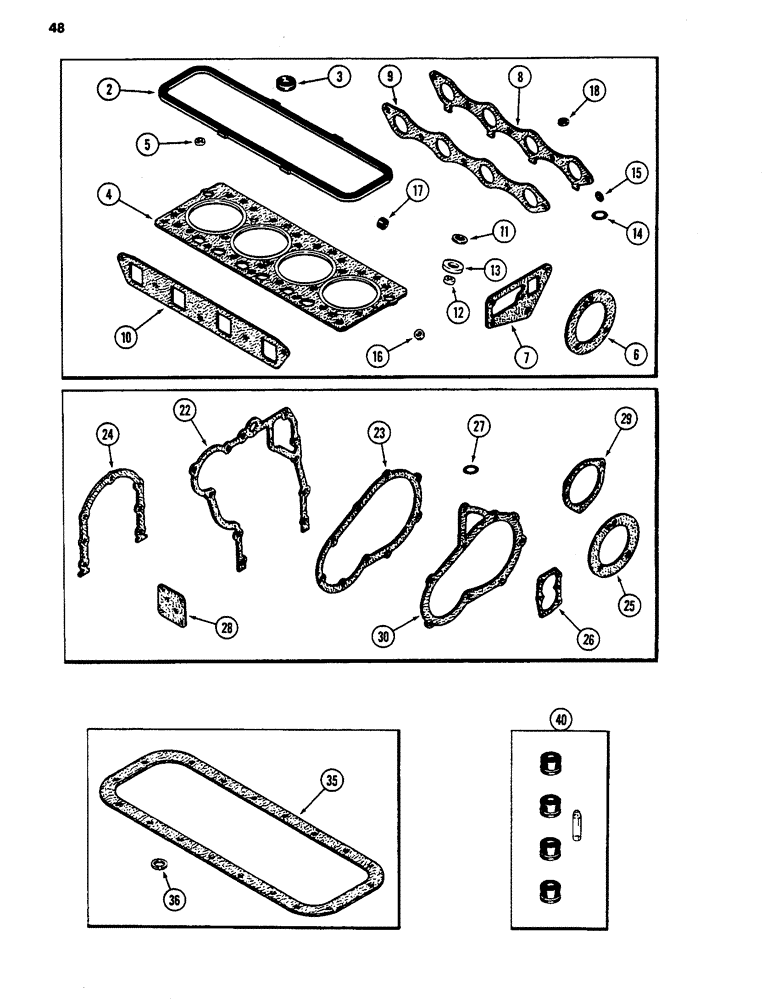

Запчасти Case 480D (048) - ENGINE GASKET KITS, 188 DIESEL ENGINE/VALVE GRIND KIT/CYLINDER BLOCK KIT/OIL PAN KIT (10) - ENGINE

A155589

GASKET KIT

- valve grind (Replaces A143000) Includes: Ref. 2 - 18

1шт.

For complete engine overhaul, order 1-A155589, 1-A43198 and 1-A44758 gasket kits.

1шт.

2

A43030

GASKET,3.05mm Thk

- valve cover

1шт.

3

A142098

GROMMET

- valve cover studs (Rubber)

2шт.

4

A148745

CYLINDER HEAD GASKET

- cylinder head

1шт.

5

G46851

SEAL

- valve stem (Rubber) (See Ref. 40)

8шт.

6

A38083

GASKET

- water, Serial Range: pump-body

1шт.

7

A38084

GASKET,1.27mm Thk

- water pump body to cylinder head

1шт.

8

A155137

GASKET

- exhaust manifold, with turbocharger (Not used this application)

1шт.

9

G46872

MANIFOLD GASKET

- exhaust manifold, without turbocharger

1шт.

10

G46871

GASKET

- intake manifold

1шт.

11

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - fuel injection, Serial Range: lines-pump

8шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injector nozzles

4шт.

13

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- seat, injector nozzles

4шт.

14

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- water pump body

1шт.

15

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- manifold studs

3шт.

16

G49068

GASKET

- injector nozzle seat (Not used this application)

4шт.

17

222-101

SLEEVE,3/16" Tube

- for 3/16 inch tube (Not used this application)

4шт.

17

222-103

SLEEVE,5/16" Tube

(Not used this application) 5/16" Tube

4шт.

18

A50694

DISC

WASHER - seal

3шт.

A43198

GASKET

KIT - cylinder block, Includes: Ref. 22 - 30

1шт.

For complete engine overhaul, order 1-A155589, 1-A43198 and 1-A44758 gasket kits.

1шт.

22

A51529

GASKET

- timing gear cover

1шт.

23

A39925

GASKET

- injection pump drive cover

1шт.

24

A39188

GASKET

- rear oil seal retainer

1шт.

25

A38083

GASKET

- water pump

1шт.

26

G46852

GASKET

- oil pump cover

1шт.

27

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- water pump body to cover

1шт.

28

G46854

GASKET

- (Not used this application)

1шт.

29

A30042

GASKET

- (Not used this application)

1шт.

30

G46859

GASKET

- (Not used this application)

1шт.

A44758

GASKET

KIT - oil pan, Includes: Ref. 35 and 36

1шт.

For complete engine overhaul, order 1-A155589, 1-A43198 and 1-A44758 gasket kits.

1шт.

35

A51891

OIL PAN GASKET SET

- oil pan

1шт.

36

A58608

GASKET

- drain plug, 3/4 x 1 x 1/16 inch nylon (19 x 25 x 2 mm)

1шт.

36

A34827

GASKET

- drain plug, 7/8 x 1-1/8 x 3/64 inch copper (22 x 29 x 1 mm)

1шт.

40

M20611

SEAL KIT

SEAL KIT - valve (Includes 4 seals and installation sleeve), oil pan

1шт.
