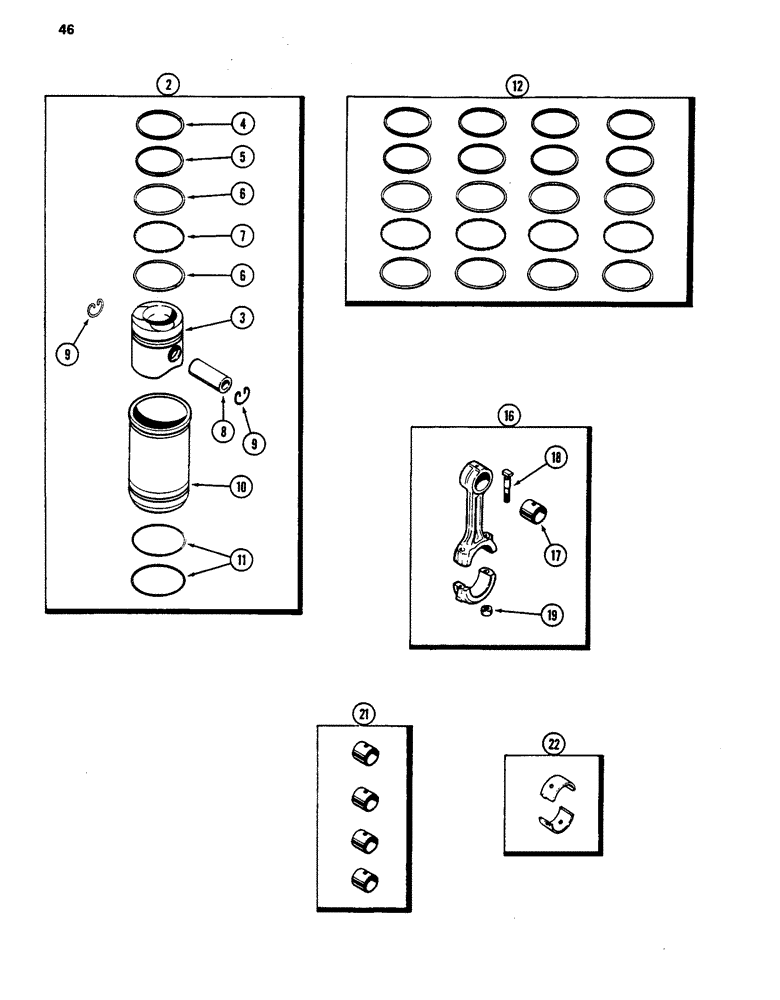

Запчасти Case 480D (046) - PISTONS, 188 DIESEL ENGINE/CONNECTING RODS (10) - ENGINE

2

A151995

SLEEVE ASSY

PISTON KIT - engine (Set of 1) Includes: Ref. 3 - 11

4шт.

3

A38424

PISTON

- engine

1шт.

4

A51189

RING

- compression, top groove (See Ref. 12)

1шт.

5

G4817

RING

- compression, second groove (See Ref. 12)

1шт.

6

G47155

RAIL

- oil control, third groove (See Ref. 12)

2шт.

7

G47174

SPRING

SPACER - oil control rail (See Ref. 12)

1шт.

8

A35770

PISTON PIN,31.75mm OD x 80.44mm L

PIN - piston

1шт.

9

G46702

RING, LOCKING

RING - piston pin retaining

2шт.

10

A39006

SLEEVE

- piston

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

- sleeve packing

2шт.

12

A151857

PISTON RING SET

RING KIT - single piston re-ring (Set of 1)

4шт.

16

A182011

ROD

ASSEMBLY - connecting (Includes: Ref. 17, 18, 19) (With yellow color code) 1205 to 1229 Grams (33 to 43 Ounces)

1шт.

16

A182012

ROD, CONNECTING

ROD ASSEMBLY - connecting (Includes: Ref. 17, 18, 19) (With red color code) 1229 to 1253 Grams (43 to 44 Ounces)

1шт.

16

A182013

ROD, CONNECTING

ROD ASSEMBLY - connecting (Includes: Ref. 17, 18, 19) (With blue color code) 1253 to 1277 Grams (44 to 45 Ounces)

1шт.

16

A182014

ROD, CONNECTING

ROD ASSEMBLY KIT - connecting (Set of 4 with no color code) within 1/4 Ounce (7.86 Grams) of each other, Includes: Ref. 16 (A136931) - 19

1шт.

16

A136931

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 17 - 19

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref. 21), connecting rods

1шт.

18

G49064

STEP BOLT

BOLT - connecting rod bearing cap

2шт.

19

A51904

NUT

NUT - bearing cap bolt, connecting rods

2шт.

21

A44083

KIT

BUSHING SET - piston pin (Set of 4), connecting rods

1шт.

22

A46050

BEARING LINER,53.66mm ID x 56.82mm OD x 26.67mm W

INSERT - connecting rod bearing, (Standard) (Set of 2)

4шт.

22

A46051

BEARING LINER

INSERT - connecting rod bearing, 0.002 inch undersize (0.06 mm) (Set of 2)

4шт.

22

A46052

BEARING LINER,53.4mm ID x 56.82mm OD x 26.67mm W

INSERT - connecting rod bearing, 0.010 inch undersize (0.26 mm) (Set of 2)

4шт.

22

A46053

BEARING LINER,53.15mm ID x 56.82mm OD x 26.67mm W

INSERT - connecting rod bearing, 0.020 inch undersize (0.50 mm) (Set of 2)

4шт.

22

A46054

BEARING LINER

INSERT - connecting rod bearing, 0.030 inch undersize (0.76 mm) (Set of 2)

4шт.
