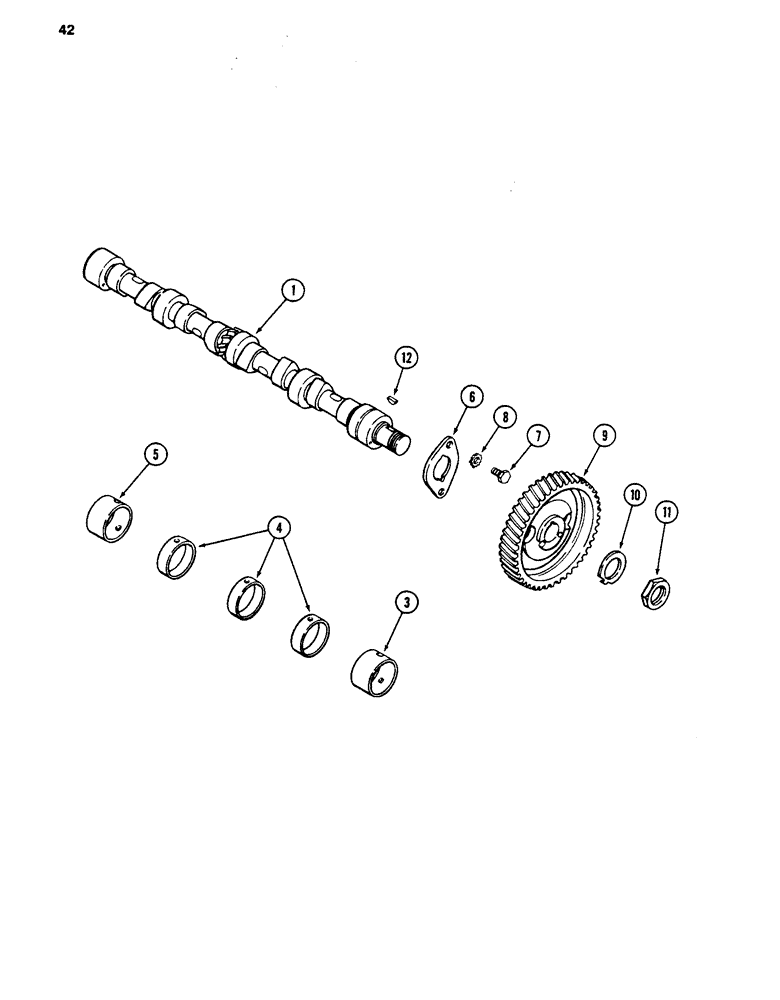

Запчасти Case 480D (042) - CAMSHAFT, 188 DIESEL ENGINE (10) - ENGINE

1

A153521

CAMSHAFT

(Replaces A39013)

1шт.

3

A41230

BUSHING,44.45mm ID x 47.75mm OD x 31.06mm L

- front, 1-7/32 inch wide (31 mm)

1шт.

4

A41231

BUSHING,44.5mm ID x 47.78mm OD x 12.45mm L

BUSHING - intermediate, 1/2 wide (13 mm)

3шт.

5

A151068

BUSHING,44.51mm ID x 47.92mm OD x 24.64mm L

- rear, 31/32 wide (25 mm)

1шт.

6

A29290

PLATE

- thrust, camshaft

1шт.

7

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - thrust plate

2шт.

8

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

9

A38931

GEAR

- camshaft

1шт.

10

A29438

LOCK NUT

WASHER - tab, gear nut lock

1шт.

11

A30063

NUT

- gear retaining

1шт.

12

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.
