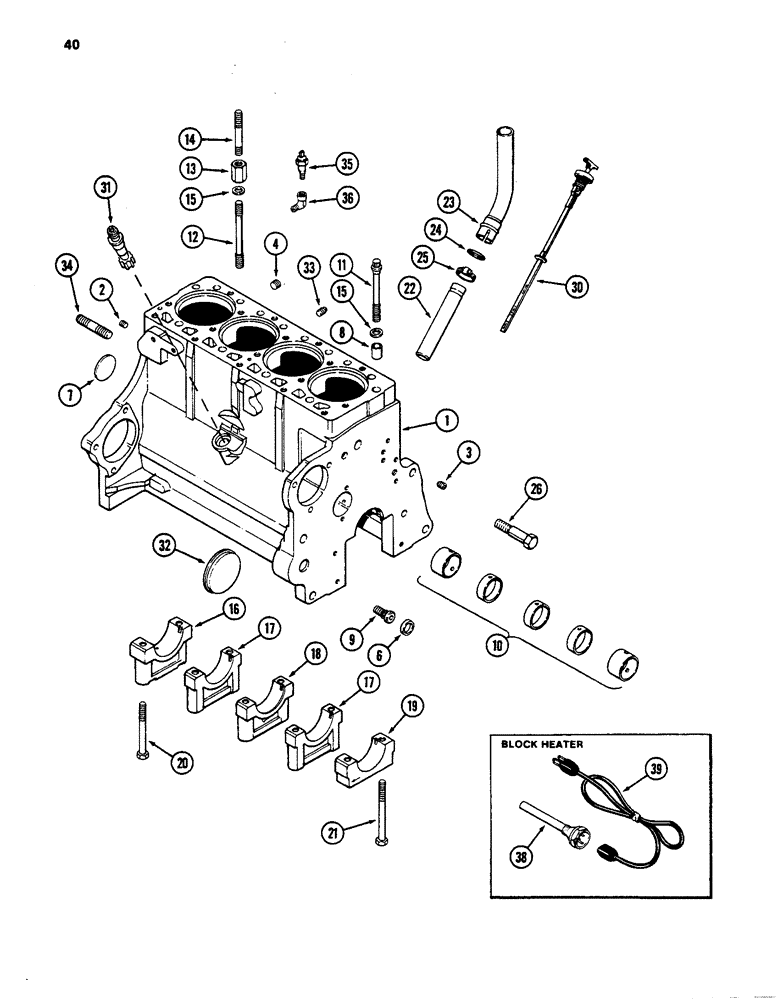

Запчасти Case 480D (040) - CYLINDER BLOCK, 188 DIESEL ENGINE/BLOCK HEATER (10) - ENGINE

A46352

CRANKCASE

BLOCK ASSEMBLY - short (Includes stripped block, crankshaft and bearings, connecting rods and bearings, piston assembly, camshaft, oil pump and timing gears) Includes: Ref. 1 - 26

1шт.

1

AR46351

ENGINE, EXCHANGE

BLOCK ASSEMBLY - stripped (Remanufactured)

1шт.

1

AC46351

CORE-ENGINE

RETURN NUMBER - stripped block (Use this number when returning block for credit)

1шт.

1

A46351

BASIC BLOCK

BLOCK ASSEMBLY - stripped (New) Includes: Ref. 2 - 26

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Rear oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

3

G49070

PLUG

- front oil gallery, 1/4 inch PT, drilled

1шт.

4

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - socket head, 3/8 inch PT

1шт.

A38534

PLUG

- tachometer drive hole, 1-1/16 inch cup type (Used for shipping purposes only) (Not illustrated)

1шт.

6

41-1016

PLUG,Cup, 1"

- adapter hole, 1 inch cup type (25 mm)

1шт.

7

41-1030

PLUG,Cup, 1 7/8"

- camshaft hole, 1-7/8 inch expansion (48 mm)

1шт.

8

G49608

RING

- dowel, head locating

2шт.

9

A153552

ADAPTER

- oil filter

1шт.

10

REF

INSTRUCTION

BUSHING - camshaft (See Figure 42)

1шт.

11

A39047

12 PT SCREW

BOLT - cylinder head, 12 point head 3-1/2 inch

4шт.

11

A39048

12 PT SCREW

BOLT - cylinder head, 12 point head 5-1/8 inch

11шт.

11

A39049

12 PT SCREW

BOLT - cylinder head, 12 point head 5-5/8 inch

2шт.

12

A36902

STUD

- cylinder head, lower 5-5/8 inch

2шт.

13

A51114

NUT

- head studs, 1/2 NC and 3/8 inch NC

2шт.

14

A51271

STUD

- cylinder head cover, 3-3/4 inch

2шт.

15

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- flat

19шт.

16

A38385

CAP

- main bearing, rear

1шт.

17

G2128

CAP

- main bearing, intermediate

2шт.

18

G2127

CAP

- main bearing, center

1шт.

19

G2126

CAP

- main bearing, front

1шт.

20

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch

8шт.

21

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

- hex, 1/2 NC x 5-1/8 inch

2шт.

22

A37149

TUBE

- oil filler and dipstick

1шт.

23

A37407

TUBE

EXTENSION - oil filler tube

1шт.

24

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- tube, 1-3/8 inch (35 mm)

1шт.

25

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - tube, 1-3/16 inch to 1-3/4 inch (30 to 44 mm)

1шт.

26

A38303

BOLT

BOLT - front support

1шт.

30

A39936

DIPSTICK

- engine oil level

1шт.

31

A137572

DRIVE

ASSEMBLY - tachometer

1шт.

32

41-1052

PLUG,Cup, 3 1/4"

COVER - auxiliary drive opening, 3-1/4 inch cup type (83 mm)

1шт.

33

221-662

PLUG,Hex Hd, 1/4"-18

- hex socket head, 1/4 inch PT

1шт.

34

A51793

STUD

- engine to torque tube

2шт.

35

A162297

SWITCH

- pressure

1шт.

36

217-15

ELBOW,45 Degree, 1/8"-27 NPTF, Fem x 1/8"-27 NPTF Male

- 45 degree, 1/8 inch PT

1шт.

38

A44815

HEATER

ASSEMBLY - cylinder block, Includes: Ref. 39

1шт.

39

A44814

ELECTRIC CABLE

CORD ASSEMBLY - heater, 12 inch long

1шт.
