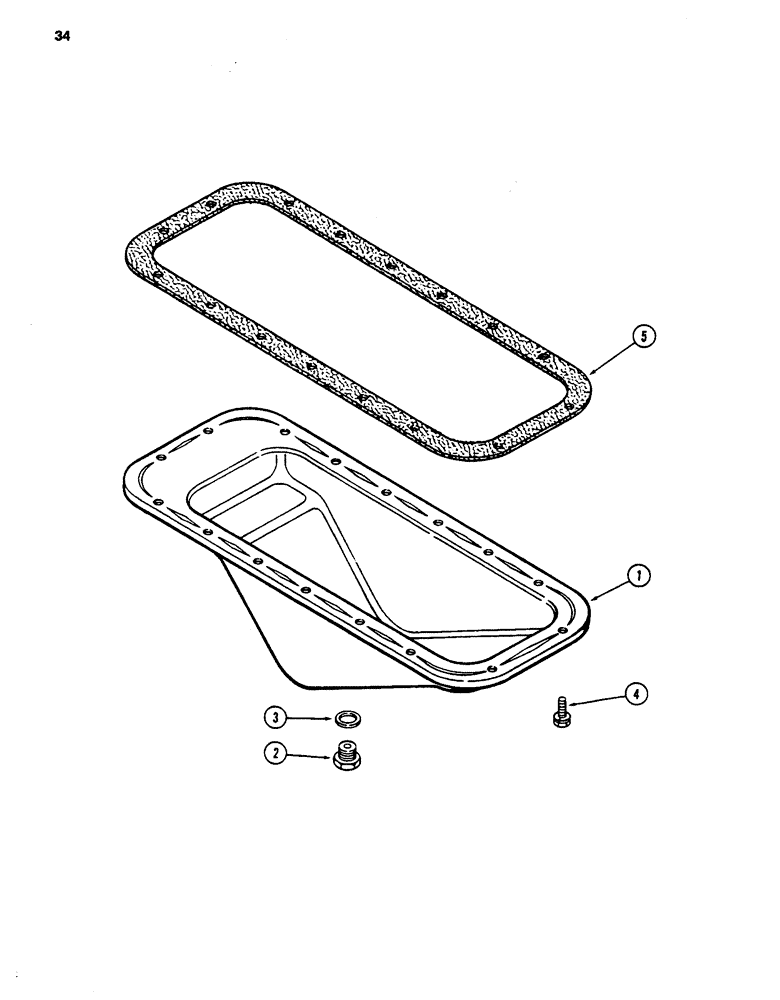

Запчасти Case 480D (034) - OIL PAN, 188 DIESEL ENGINE (10) - ENGINE

1

A36782

PAN

ASSEMBLY - oil, Includes: Ref. 2 and 3

1шт.

2

A140222

PLUG

- drain

1шт.

3

A58608

GASKET

- drain plug

1шт.

4

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT ASSEMBLY - hex sems, 5/16 NC x 3/4 inch

18шт.

5

REF

INSTRUCTION

GASKET - oil pan (See Figure 48)

1шт.
