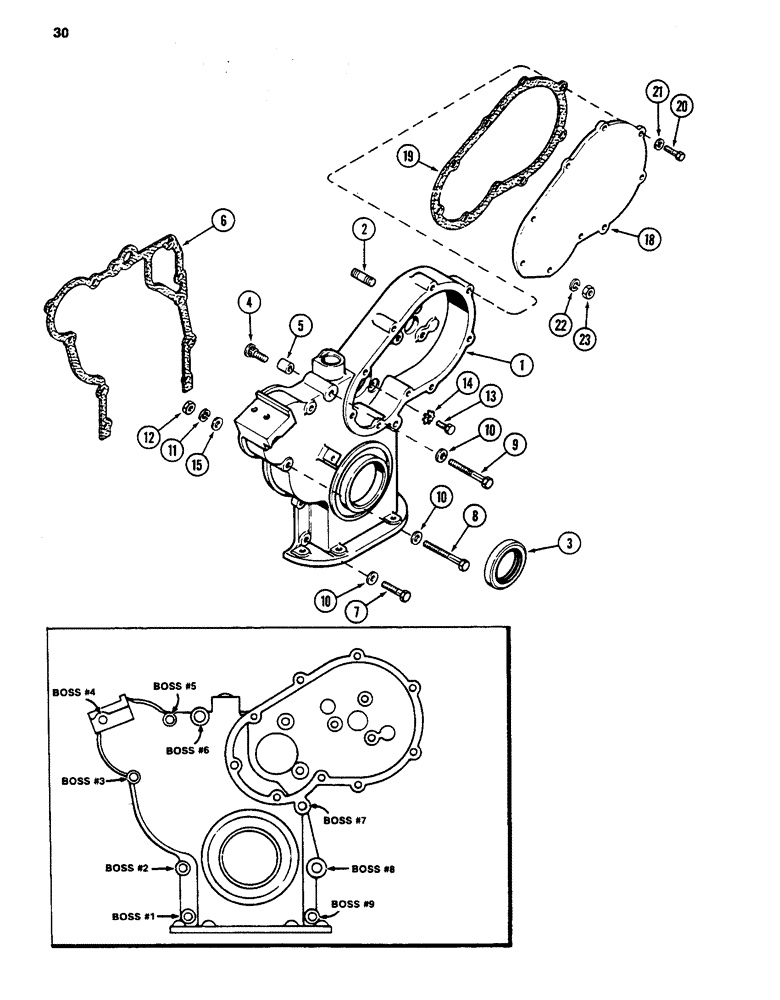

Запчасти Case 480D (030) - TIMING GEAR COVER, 188 DIESEL ENGINE (10) - ENGINE

1

A51981

COVER

ASSEMBLY - timing gear, Includes: Ref. 2 and 3

1шт.

2

G11204

STUD

- injection pump, 1-7/16 inch (Order G102128)

3шт.

3

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft front

1шт.

4

A51649

STUD

- timing gear cover

2шт.

5

A29442

RING

DOWEL - cover locating

2шт.

6

A51529

GASKET

-, Serial Range: cover-block

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Boss No. 1, 2, 9) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch (Boss No. 8)

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Boss No. 7)

1шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8 NC x 3 inch (Boss No. 6)

1шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch (Boss No. 3, 4, 5)

3шт.

10

A50820

WASHER

- cover bolt

9шт.

10

95-6

WASHER,3/8"

- flat, 7/16 x 1 x 1/16 inch (11 x 25 x 2 mm)

1шт.

10

195-22

WASHER

- flat, 3/8 x 3/4 x 1/16 inch (10 x 19 x 2 mm)

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC (Boss No. 3,4,5)

3шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

14

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

15

195-25

WASHER,3/8"

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

3шт.

18

A51908

COVER

COVER - injection pump gears

1шт.

19

A39925

GASKET

- cover, drive gear

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

20

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

21

A50820

WASHER

- gear cover

7шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

2шт.
