Запчасти Case 480D (028) - WATER PUMP AND THERMOSTAT, 188 DIESEL ENGINE (10) - ENGINE

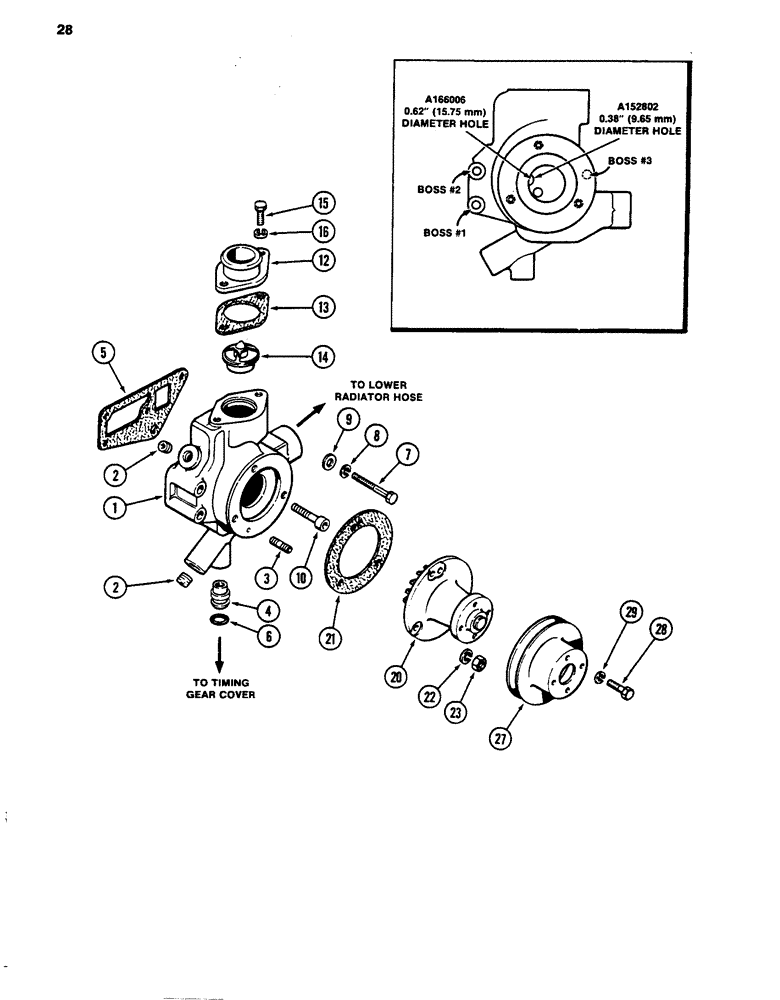

Схема запчастей Case 480D - (028) - WATER PUMP AND THERMOSTAT, 188 DIESEL ENGINE (10) - ENGINE

Артикул

Название

Примечание

Количество

1

A166006

BODY

BODY ASSEMBLY - water pump (Used with A155925 casting no. cylinder head, See Figure 36) Includes: Ref. 2 - 4

1шт.

1

A152802

PUMP

BODY ASSEMBLY - water pump (Used with A150384 casting no. cylinder head, See Figure 36) Includes: Ref. 2 - 4

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - body socket head, 3/8 inch PT

2шт.

3

A29433

STUD

STUD - water pump to body, 1 inch

3шт.

4

A152715

COUPLING

FITTING - body to cylinder head

1шт.

5

A38084

GASKET,1.27mm Thk

GASKET - body to cylinder head

1шт.

6

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING - body to cover

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

7

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT - hex, 3/8 NC x 3 inch

2шт.

8

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

9

A50820

WASHER

WASHER - hardened

3шт.

10

61-632

HEX SOC SCREW,3/8"-16 x 2"

BOLT - hex socket head, (Inside body) 3/8 NC x 2 inch

1шт.

12

G2144

FITTING

HOUSING - thermostat and water outlet

1шт.

13

G46907

GASKET

GASKET -, Serial Range: housing-body

1шт.

14

A57641

THERMOSTAT

THERMOSTAT - 180\(deF (82\(deC)

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

20

A146584

PUMP, WATER

PUMP ASSEMBLY - water (New) Includes: Ref. 21

1шт.

20

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

20

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assembly

1шт.

20

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

20

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

20

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

21

A38083

GASKET

GASKET -, Serial Range: pump-body

1шт.

22

92-6

LOCK WASHER,3/8"

LOCK WASHER, , pump stud 3/8"

3шт.

23

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8 inch NC

3шт.

27

G11339

PULLEY

PULLEY - fan drive

1шт.

28

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

4шт.

29

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.

Выбрано товаров: 29
