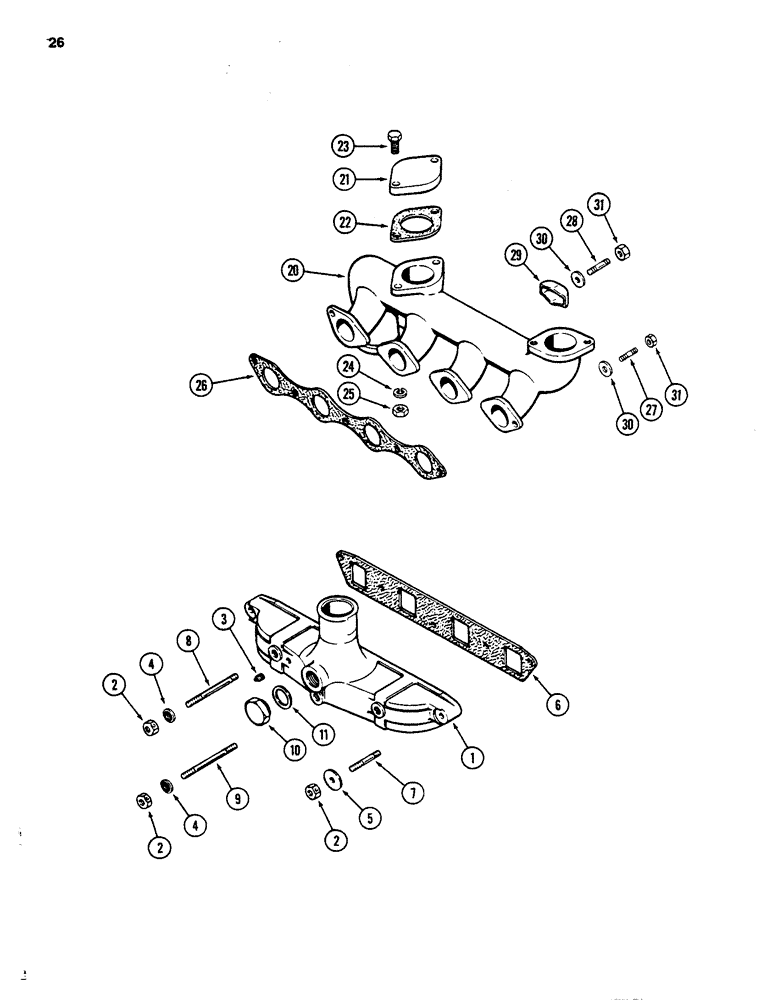

Запчасти Case 480D (026) - MANIFOLDS, 188 DIESEL ENGINE, INTAKE MANIFOLD/EXHAUST MANIFOLD (10) - ENGINE

1

A152536

MANIFOLD

ASSEMBLY - intake, Includes: Ref. 2 - 5

1шт.

2

25-166

NUT,3/8"-16, G5, Hvy

- 3/8 inch NC with nylon insert

5шт.

3

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8 inch PT

1шт.

4

A50694

DISC

WASHER - seal

3шт.

5

195-25

WASHER,3/8"

- flat, 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

2шт.

6

G46871

GASKET

-, Serial Range: manifold-head

1шт.

7

A140924

STUD

- end, 2-7/16 inch

2шт.

8

A153248

STUD

- intermediate, 4-13/16 inch

2шт.

9

A51500

STUD

- center, 5-5/16 inch

1шт.

10

A20917

PLUG

- manifold (Heater hole)

1шт.

11

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

20

A39233

MANIFOLD

ASSEMBLY - exhaust, Includes: Ref. 21 - 25

1шт.

21

A38188

PLATE

- cover, exhaust manifold

2шт.

22

G46853

MANIFOLD GASKET

- cover plate, exhaust manifold

2шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Exhaust manifold Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

24

195-25

WASHER,3/8"

Exhaust manifold 3/8"

4шт.

25

131-903

NUT,3/8"-16

NUT - Seez-Pruf, 3/8 inch NC, exhaust manifold

4шт.

26

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

27

A29431

STUD

- end, 1-3/4 inch, exhaust manifold

2шт.

28

A140924

STUD

- clamp, 2-1/16 inch (Replaces A39129), exhaust manifold

3шт.

29

A35028

CLAMP

- manifold, exhaust

3шт.

30

195-25

WASHER,3/8"

- flat, 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm), exhaust manifold

5шт.

31

131-903

NUT,3/8"-16

NUT - Seez-Pruf, 3/8 inch NC, exhaust manifold

5шт.
