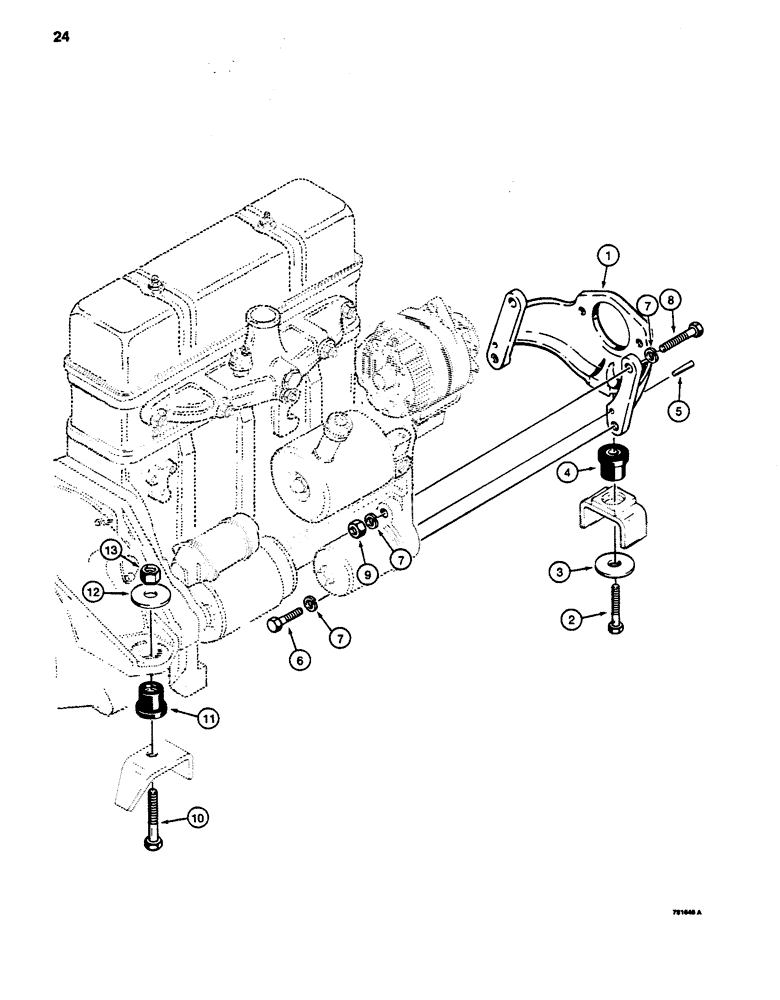

Запчасти Case 480D (024) - ENGINE MOUNTING (10) - ENGINE

1

D120867

SUPPORT ASSY.

SUPPORT - engine front

1шт.

2

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

3

D35009

WASHER

- flat, special, hardened

1шт.

4

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

INSULATOR - rubber mount

1шт.

5

139-64

PIN,1/8" x 1 1/2", Tapered

- taper, No. 5 x 1-1/2"

2шт.

6

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

7

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4-6шт.

8

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

2шт.

9

129-107

NUT,5/8"-11, G5

2шт.

10

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

11

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

INSULATOR - rubber mount

2шт.

12

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- flat, special, hardened

2шт.

13

129-107

NUT,5/8"-11, G5

2шт.
