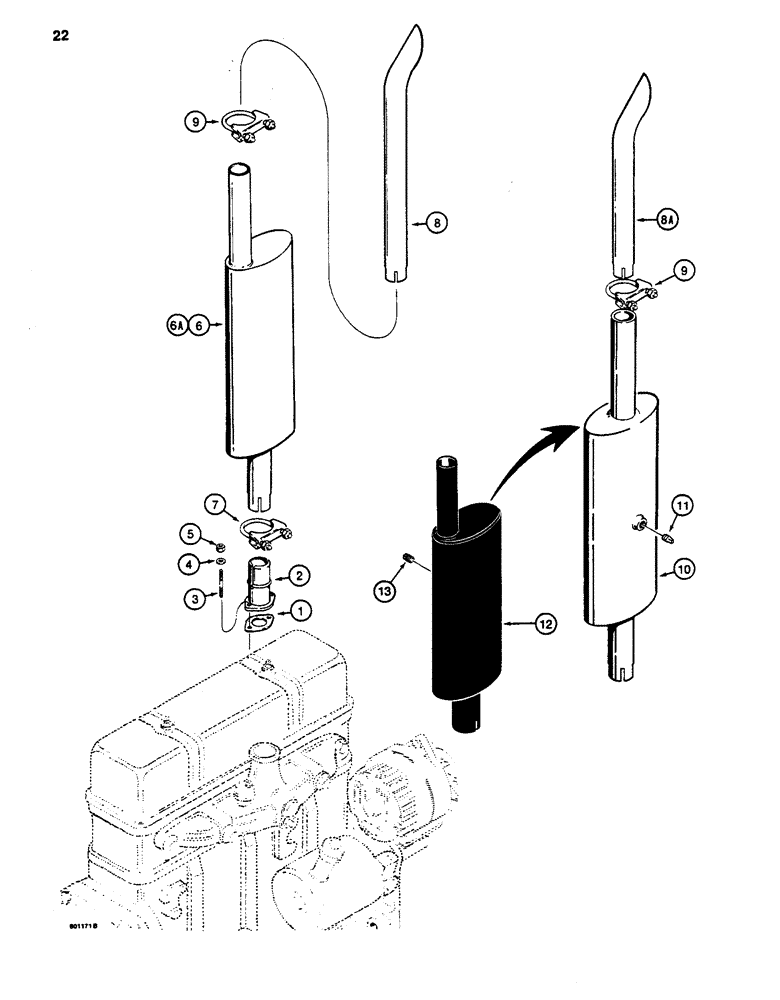

Запчасти Case 480D (022) - MUFFLER AND EXHAUST SYSTEM (10) - ENGINE

1

G46853

MANIFOLD GASKET

- manifold to exhaust pipe, no longer used, not required

1шт.

2

D73198

OUTLET

EXHAUST PIPE - muffler

1шт.

3

A59077

STUD

- 3/8" - 16 NC x 1-15/16"

2шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

5

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

6

A39561

MUFFLER

- standard engine exhaust, see Ref. 6A, 10 and 12 for optional mufflers

1шт.

6a

D55532

MUFFLER

- increased noise control, if used

1шт.

7

A13240

CLAMP,2-5/8" ID

- muffler

1шт.

8

D70514

PIPE, EXHAUST SYSTEM

PIPE - exhaust extension, used with Ref. 6 and 6A mufflers only

1шт.

8a

D121304

PIPE

- exhaust extension, used with Ref. 10 and 12 mufflers only

1шт.

9

L73301

CLAMP,51mm ID

- extension

1шт.

10

D65392

MUFFLER

- spark arrester, no longer available, order D120870 muffler, Includes: Ref. 11

1шт.

11

217-76

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG - square head, brass, 1/4" NPT

1шт.

12

D120870

MUFFLER

- spark arrester, if used, Includes: Ref. 13

1шт.

13

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

- hex head, brass, 3/8" NPT

1шт.
