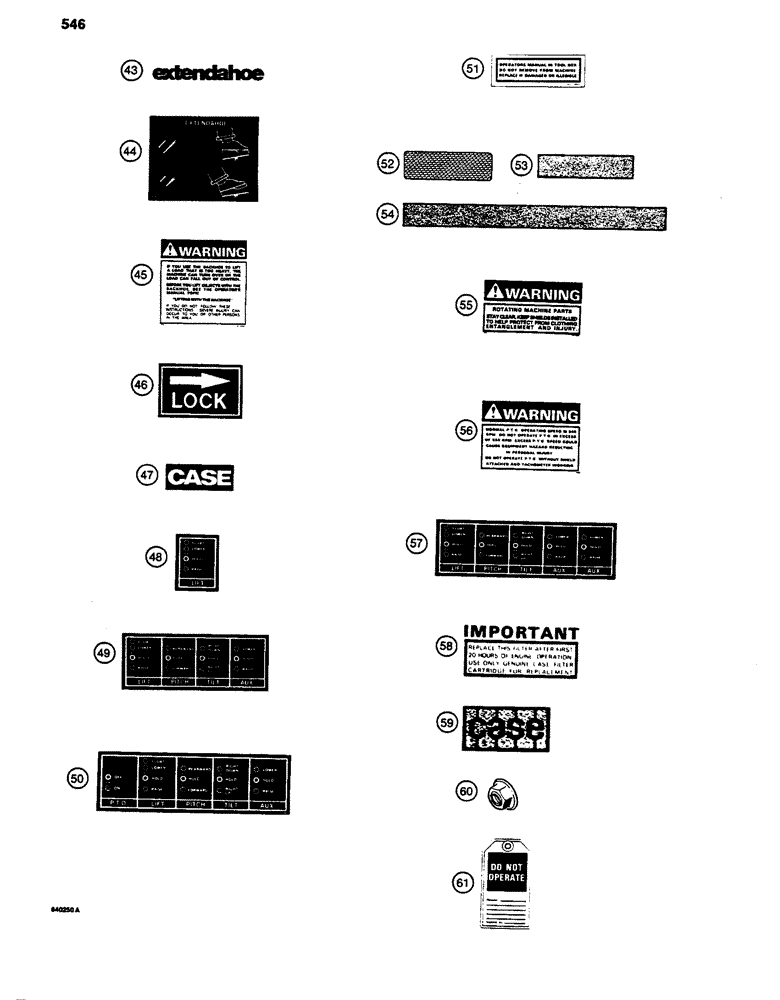

Запчасти Case 480D (546) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

REF

INSTRUCTION

KIT - decal, continued from Figures 542 and 544, Includes: Ref. 43 - 54

1шт.

43

321-3139

DECAL

- extendahoe, black, if used

2шт.

43

D123945

DECAL

- extendahoe, brown, if used

2шт.

43a

D120625

DECAL

- extendahoe, white color for use on dark painted tractors, not included in kit, must be ordered separately, not shown

2шт.

44

321-5595

DECAL

- Extendahoe, pedal control pattern, black, if used

1шт.

44

D123948

DECAL

- Extendahoe, pedal control pattern, brown, if used

1шт.

45

321-6046

WARNING DECAL

DECAL, WARNING, Backhoe lifting load

1шт.

46

321-5922

DECAL

- Lock, boom

1шт.

47

321-5361

KIT

DECAL - CASE, three-point hitch, black, if used

1шт.

47

D124115

DECAL

- CASE, three-point hitch, brown, if used

1шт.

48

321-6058

DECAL

- three-point hitch control pattern, one spool valve models

1шт.

49

321-6059

DECAL

- three-point hitch control pattern, four spool valve models

1шт.

50

321-6461

DECAL

- three-point hitch control pattern, five spool valve models, see D122156 decal for models with PTO

1шт.

51

321-6452

DECAL

- operators manual location, tool box, included in brown kits only

1шт.

52

D87870

DECAL

- reflector, red, rear

2шт.

53

D55216

PAD,2" x 9"

STRIP - anti-skid, steps, short, 4 used on 480D models, 1 used on 480LL models

1-4шт.

54

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID, Operators compartment, long, 480D models only

1шт.

55

321-3710

DECAL

- Warning, Rotating Machine Parts, PTO shield, used on models with PTO

1шт.

56

321-3888

DECAL

- Warning, PTO speeds, used on models with PTO

1шт.

57

D122156

DECAL

- PTO and three-point hitch control pattern, five spool valve models

1шт.

58

321-2101

DECAL

- Important, replace filter

1шт.

59

321-4739

EMBLEM

- case, on grille

1шт.

60

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push, attaches emblem to grille

2шт.

61

321-4614

TAG

- Do Not Operate

1шт.
