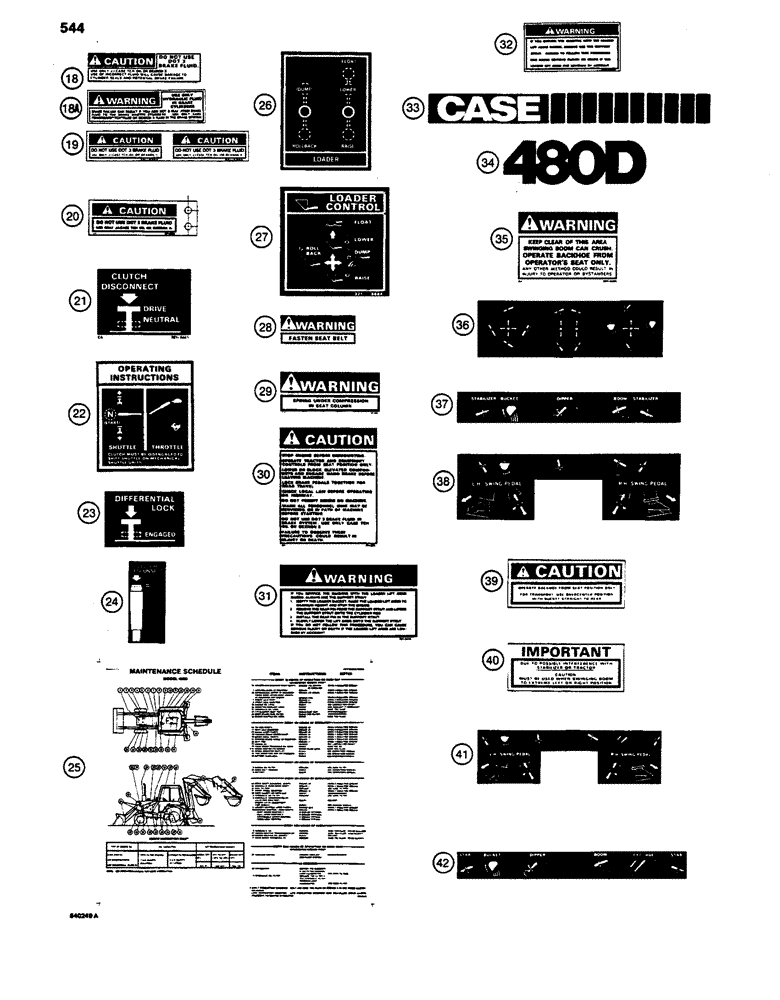

Запчасти Case 480D (544) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

REF

INSTRUCTION

KIT - decal, continued from Figure 542, Includes: Ref. 18 - 42

1шт.

18

321-6250

DECAL

- Caution, brake fluid, included in black kits only, no longer available, order 321-6708 decal, if used

1шт.

18a

321-6708

DECAL

- Warning, hydraulic fluid in brake cylinders, included in black kits only

1шт.

19

321-6398

DECAL

- Caution, brake fluid, on right-hand brake master cylinder, included in black kits only, if used

1шт.

20

D127086

PLATE ASSY.

DECAL - Caution, brake fluid, includes decal mounting plate, not included in kits, must be ordered separately

1шт.

21

321-5441

DECAL

- Clutch Disconnect control pattern, floor

1шт.

22

321-3025

DECAL

- Operating Instructions, shuttle and throttle control pattern

1шт.

23

321-1646

DECAL

- Differential Lock control pattern

1шт.

24

321-5797

DECAL

- Clutch Disconnect control pattern

1шт.

25

321-6431

DECAL

- Maintenance Schedule, black, if used

1шт.

25

D128939

DECAL

- Maintenance Schedule, brown, if used

1шт.

26

321-3580

DECAL

- dual lever loader control pattern, not included in 480LL kit

1шт.

27

321-5684

DECAL

- single lever loader control pattern

1шт.

28

321-3060

DECAL

- Warning, Fasten Seat Belt

1шт.

29

321-3055

DECAL

- Warning, seat spring, not used on 480LL models

1шт.

30

321-6262

DECAL

- Caution, safety warnings

1шт.

31

321-6413

DECAL

- Warning, left-hand, loader lift arm support strut usage

1шт.

32

321-6671

DECAL

- Warning, right-hand, loader lift arm support strut usage, included in brown kits only

1шт.

33

321-5066

DECAL

- CASE, with treads, rear, black, 480D models only, if used

1шт.

33

R48490

DECAL

- CASE, with treads, rear, brown, 480D models only, if used

1шт.

33a

321-6266

DECAL

- CASE, with treads, rear, white color for use on dark painted tractors not included in kit, must be ordered separately, not shown

1шт.

34

321-6103

DECAL

- 480D, backhoe dipper, black, if used

1шт.

34

D123979

DECAL

- 480D, backhoe dipper, brown, if used

1шт.

35

321-4481

DECAL

- Warning, swinging boom

2шт.

36

321-5571

DECAL

- backhoe control pattern, two lever, black, if used

1шт.

36

D123978

DECAL

- backhoe control pattern, two lever, brown, if used

1шт.

37

321-5569

DECAL

- standard backhoe control pattern, upper, black, if used

1шт.

37

D123977

DECAL

- standard backhoe control pattern, upper, brown, if used

1шт.

38

321-5568

DECAL

- standard backhoe control pattern, lower, black, if used

1шт.

38

D123976

DECAL

- standard backhoe control pattern, lower, brown, if used

1шт.

39

321-3056

DECAL

- Caution, backhoe transport

1шт.

40

321-3058

DECAL

- Important, swinging boom

1шт.

41

321-5572

DECAL

- extendahoe control pattern, upper, black, if used

1шт.

41

D123941

DECAL

- extendahoe control pattern, upper, brown, if used

1шт.

42

321-5573

DECAL

- extendahoe control pattern, lower, black, if used

1шт.

42

D123940

DECAL

- extendahoe control pattern, lower, brown, if used

1шт.
