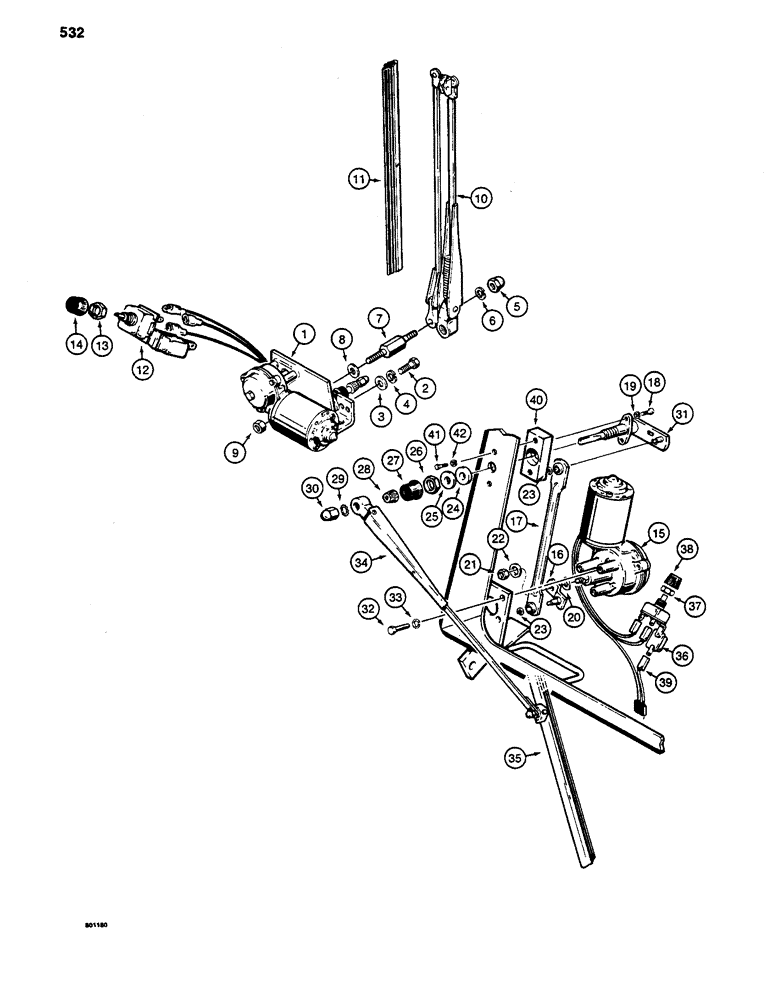

Запчасти Case 480D (532) - FRONT AND REAR WINDSHIELD WIPERS, 480D MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

MOTOR - windshield wiper, front, parts list Figure 534

1шт.

2

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

2шт.

3

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.

5

129-642

CROWN NUT,Crown, #10-24

DOME NUT - hex, No. 10, plated

1шт.

6

195-513

WASHER,#10

- lock, No. 10, plated

1шт.

7

F43960

STUD

- windshield wiper arm

1шт.

8

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

1шт.

9

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

10

L35260

ARM

- front windshield wiper, 20" (508 mm)

1шт.

11

F42706

WINDSHIELD WIPER

BLADE - front windshield wiper, 19" (483 mm)

1шт.

12

A42660

SWITCH

- windshield wiper, front

1шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- hex, switch

1шт.

14

A42578

KNOB

- switch

1шт.

15

REF

INSTRUCTION

MOTOR - rear windshield wiper, parts list Figure 534

1шт.

16

A36091

ARM

- drive

1шт.

17

D71412

LINK

- drive

1шт.

18

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 1/2", plated

2шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

20

D71411

WASHER

- wave

1шт.

21

F44452

LOCK NUT

- special lock

1шт.

22

A22431

WASHER

- spacer

2шт.

23

D71414

CLIP

- spring

2шт.

D71415

SHAFT

ASSEMBLY - pivot, Includes: Ref. 24 - 31

1шт.

24

D71417

SPECIAL WASHER

WASHER - fiber

1шт.

25

D71418

WASHER

- steel

1шт.

26

D71419

NUT

- shaft

1шт.

27

D71420

CAP

- shaft

1шт.

28

D71421

TOOL

DRIVE - knurled

1шт.

29

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

30

D71422

NUT

- cap

1шт.

31

NSS

NOT SOLD SEPARAT

SHAFT - pivot

1шт.

32

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

3шт.

33

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

34

A165060

WIPER ARM

ARM - rear windshield wiper, 18" (457 mm)

1шт.

35

F43938

WIPER BLADE

BLADE - rear windshield wiper, 22" (559 mm)

1шт.

36

A42660

SWITCH

- rear windshield wiper

1шт.

37

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- hex, switch mounting

1шт.

38

A42578

KNOB

- switch

1шт.

39

F93877

ELECTRICAL WIRE

WIRE - rear windshield wiper

1шт.

40

R37439

BLOCK

- mounting, rear windshield wiper

1шт.

41

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

42

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.
