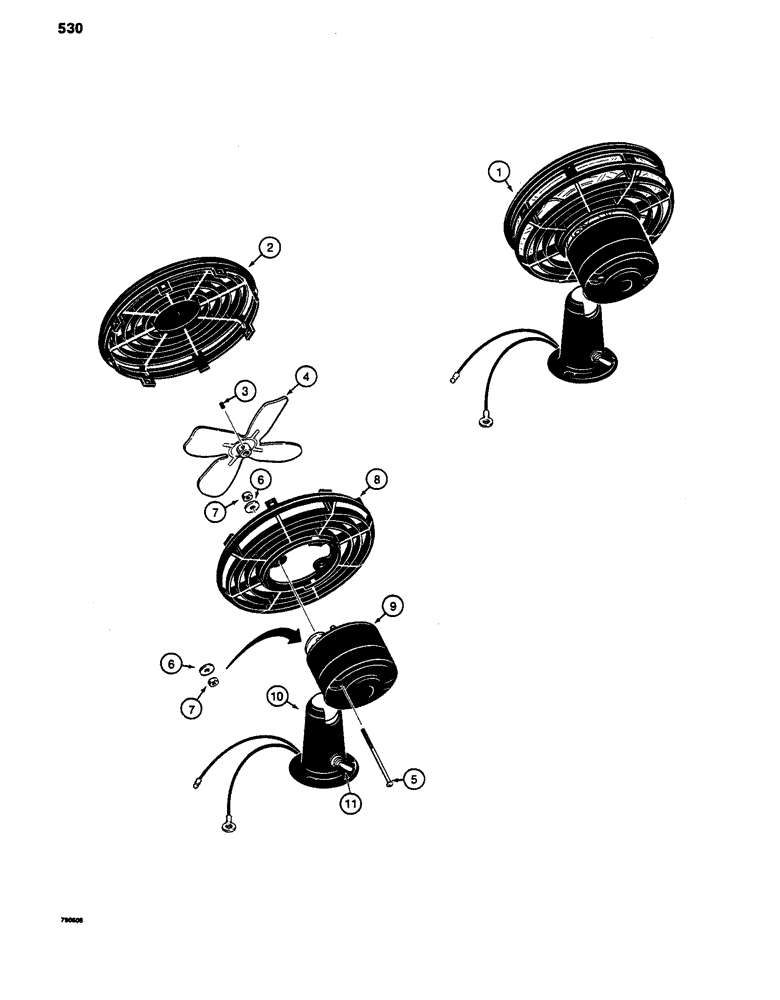

Запчасти Case 480D (530) - WINDOW DEFROSTER FAN, WITH THREE BOLT BASE, 480D MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D87694

FAN

- defroster, three bolt base, Includes: Ref. 2 - 11

1шт.

2

N6272

GUARD

GRILLE - fan, front

1шт.

3

178-819

SET SCREW,Hex Soc, #10-32 x 3/16"

- hex headless, No. 10 - 32 NF x 3/16", cup point

1шт.

4

N6273

FAN

BLADE - fan, with spacer

1шт.

5

182-576

SCREW,Slotted Pan Hd, #10-32 x 3"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 3", plated

2шт.

6

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

7

129-37

NUT,#10-32

4шт.

8

N6274

GUARD

GRILLE - fan, rear

1шт.

9

NSS

NOT SOLD SEPARAT

MOTOR - fan

1шт.

10

NSS

NOT SOLD SEPARAT

BASE - fan

1шт.

11

N6275

SWITCH

- control

1шт.
