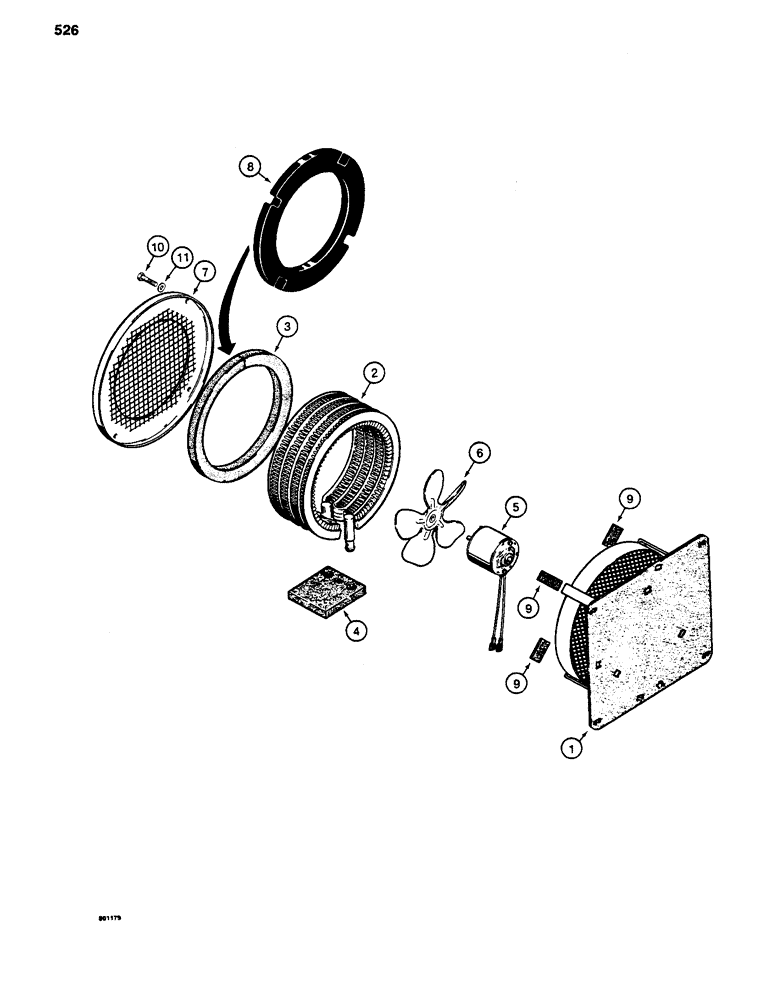

Запчасти Case 480D (526) - CAB HEATER, 480D MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

F93834

HEATER

ASSEMBLY - cab, no longer available, for service order D120191 heater, Includes: Ref. 1 - 11

1шт.

D120191

HEATER

ASSEMBLY - cab, Includes: Ref. 1 - 11

1шт.

1

F43809

CASE

HOUSING - F93834 heater

1шт.

1a

NSS

NOT SOLD SEPARAT

HOUSING - D120191 heater, not shown

1шт.

2

N6518

HEATER ASSY.

CORE - heater

1шт.

3

D83118

ISOLATOR

INSULATOR - heater

1шт.

P/N D83118 is not correct as shown... D83118 is a motor insulator that wraps around the body of the motor. Refer to W30 wheel loader for correct depiction of this. DJS - TSG 1/5/01.

1шт.

4

N6519

SEAL

GASKET - heater core

1шт.

5

F43811

MOTOR

- heater

1шт.

6

F43812

FAN

- heater, 8" (203 mm) diameter

1шт.

7

F43813

GRILLE

COVER - heater

1шт.

8

D83121

GASKET

- cover

1шт.

9

D83120

FELT

SEAL - felt

3шт.

10

187-996

SELF-TAP SCREW,1/4" x 1"

SCREW - hex head, self-tapping, 1/4" - 14 thread x 1"

4шт.

11

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.
