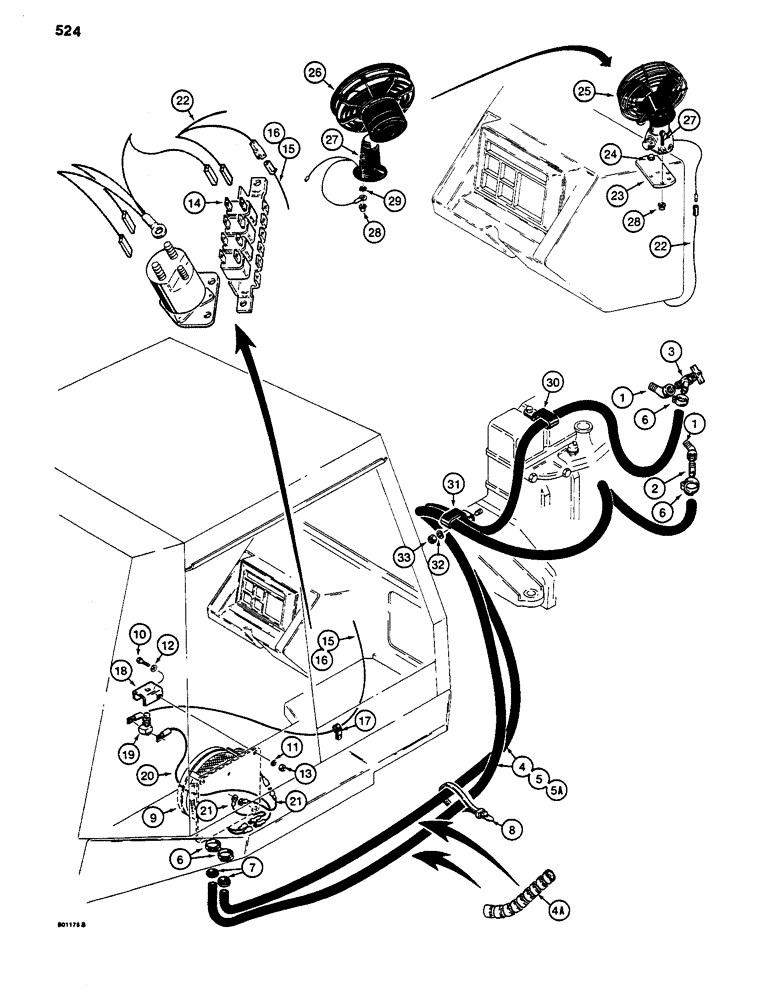

Запчасти Case 480D (524) - CAB HEATER LINES AND DEFROSTER, 480D MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D73369

FITTING

STREET ELBOW - 45 degree, 3/8" NPT

2шт.

2

L17985

FITTING,3/8" - 18 NPT

NIPPLE - 3/8" NPT

1шт.

3

A16764

VALVE

SHUTOFF VALVE - water

1шт.

4

REF

INSTRUCTION

HOSE - heater, models with heater on right-hand side of cab, 102" (2951 mm) long, cut to required length from A42610 bulk hose, see below, if used

2шт.

4a

D120221

GUARD

- hose

2шт.

5

REF

INSTRUCTION

HOSE - heater, models with heater on left-hand side of cab, 151" (3835 mm) long, cut to required length from A42610 bulk hose, see below, if used

2шт.

5a

REF

INSTRUCTION

HOSE - heater, models with heater on left-hand side of cab, 126" (3200 mm) long, cut to required length from A42610 bulk hose, see below, if used

2шт.

6

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - heater hose

4шт.

7

D73137

GROMMET

- heater hose

2шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

9

REF

INSTRUCTION

HEATER - cab, parts list Figure 526

1шт.

10

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3-4шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3-4шт.

12

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

3-4шт.

13

9635082

NUT,5/16" - 18, Gr 5

3-4шт.

14

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

1шт.

15

D75588

ELECTRICAL WIRE

WIRE - circuit breaker to heater switch, models with heater on right-hand side of cab, 80" (2032 mm) long, if used

1шт.

16

D75817

ELECTRICAL WIRE

WIRE - circuit breaker to heater switch, models with heater on left-hand side of cab, 95" (2413 mm) long, if used

1шт.

17

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, if used

3шт.

18

D86924

BRACKET

- heater switch mounting

1шт.

19

D75650

SWITCH

- heater

1шт.

20

D75652

ELECTRICAL WIRE

WIRE -, Serial Range: switch-heater

1шт.

21

D69902

ELECTRICAL WIRE

WIRE - heater ground

1шт.

22

D75454

ELECTRICAL WIRE

WIRE - circuit breaker to defroster fan

1шт.

23

D80897

LARGE PLATE

PLATE - mounting

1шт.

24

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , See Figure 100, Ref. 3A Int Tooth, 5/16"

1шт.

25

L13468

FAN

- defroster, four bolt base, parts list Figure 528

1шт.

26

D87694

FAN

- defroster, three bolt base, parts list Figure 530

1шт.

27

169-99

SCREW,Sl Fil Hd, #10 - 24 x 5/8"

MACHINE SCREW - Fillister head, No. 10 - 24 NC x 5/8"

3-4шт.

28

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT AND LOCK WASHER - No. 10 - 24 NC, plated, if used

3-4шт.

29

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, , If used Ext-Int Tooth, #10

1шт.

30

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- uses valve cover mounting hardware, if used

1шт.

31

D120080

COLLAR CLAMP

CLAMP - models with heater on left-hand side of cab, bend clamp 90 degrees as shown after installing on left-hand bell housing stud, if used

1шт.

32

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , If used 5/8"

1шт.

33

129-107

NUT,5/8"-11, G5

If used 5/8"-11, G5

1шт.

A42610

LARGE HOSE

HOSE - bulk, 50 ft (1524 cm) long

1шт.
