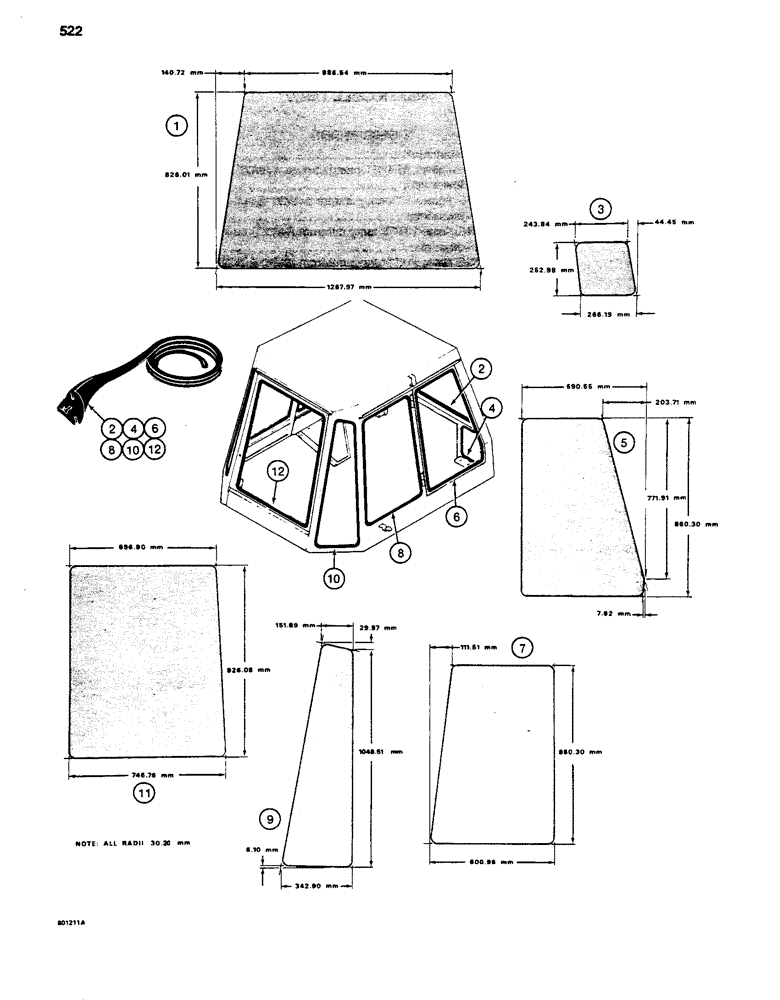

Запчасти Case 480D (522) - CAB GLASS AND MOLDING, METRIC DIMENSIONS, 480D MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

MOLDING - glass, 3950 mm long, cut from A42677 bulk

1шт.

3

REF

INSTRUCTION

GLASS - lower front

1шт.

4

REF

INSTRUCTION

MOLDING - glass, 1041 mm long, cut from A42677 bulk

1шт.

5

REF

INSTRUCTION

GLASS - side, front

2шт.

6

REF

INSTRUCTION

MOLDING - glass, 2718 mm long, cut from A42677 bulk

2шт.

7

REF

INSTRUCTION

GLASS - side, rear

2шт.

8

REF

INSTRUCTION

MOLDING - glass, 2819 mm long, cut from A42677 bulk

2шт.

9

REF

INSTRUCTION

GLASS - rear quarter

2шт.

10

REF

INSTRUCTION

MOLDING - glass, 2642 mm long, cut from A42677 bulk

2шт.

11

REF

INSTRUCTION

GLASS - rear window

1шт.

12

REF

INSTRUCTION

MOLDING - glass, 3287 mm long, cut from F43628 bulk

1шт.

A42677

MOLDING

- bulk roll, 1524 cm

1шт.

F43628

MOLDING

- bulk roll, 3048 cm

1шт.
