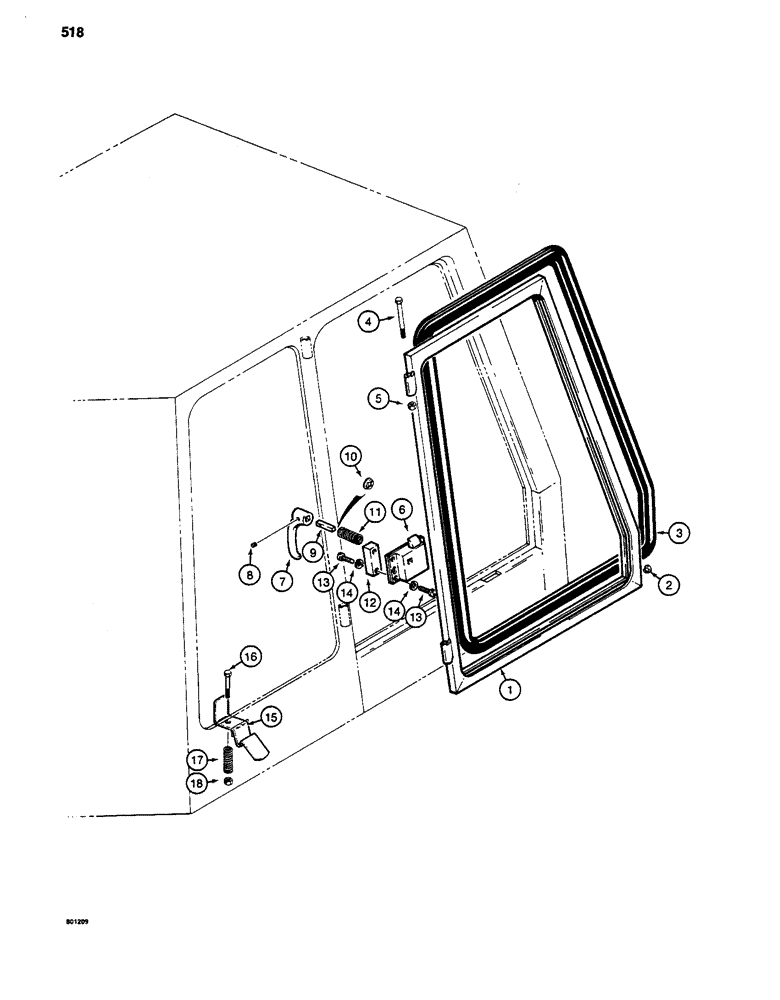

Запчасти Case 480D (518) - CAB RIGHT-HAND WINDOW, 480D MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F96694

WINDOW

FRAME - front window, right-hand

1шт.

2

353-62

PLUG,Cap, .302" OD

- plastic, black, window frame sides and top

8шт.

3

REF

INSTRUCTION

SEAL - right-hand window, 113" (2870 mm) long, cut from F43086 bulk

1шт.

4

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

5

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

6

F93884

LOCK

- window, right-hand

2шт.

7

F43966

HANDLE

- window, Includes: Ref. 8

1шт.

8

178-1102

SET SCREW,Hex Soc, #10-32 x 1/4"

- hex socket headless, No. 10 - 32 NF x 1/4", cone point

1шт.

9

F93880

SHAFT

- window latch, Includes: Ref. 10

1шт.

10

131-638

PUSH-ON NUT

- push-on, 5/16", shaft

1шт.

11

F43968

SPRING

- window latch

1шт.

12

F43980

BLOCK

- tapped, window latch

1шт.

13

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

- pan head slotted, 1/4" - 20 NC x 3/8", plated

8шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

15

F44590

SUPPORT

LATCH - window, rear swing back

2шт.

16

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

17

D36669

SPRING

- window latch

2шт.

18

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

F43086

SEAL

- bulk roll, 100 ft (3048 cm) long

1шт.
