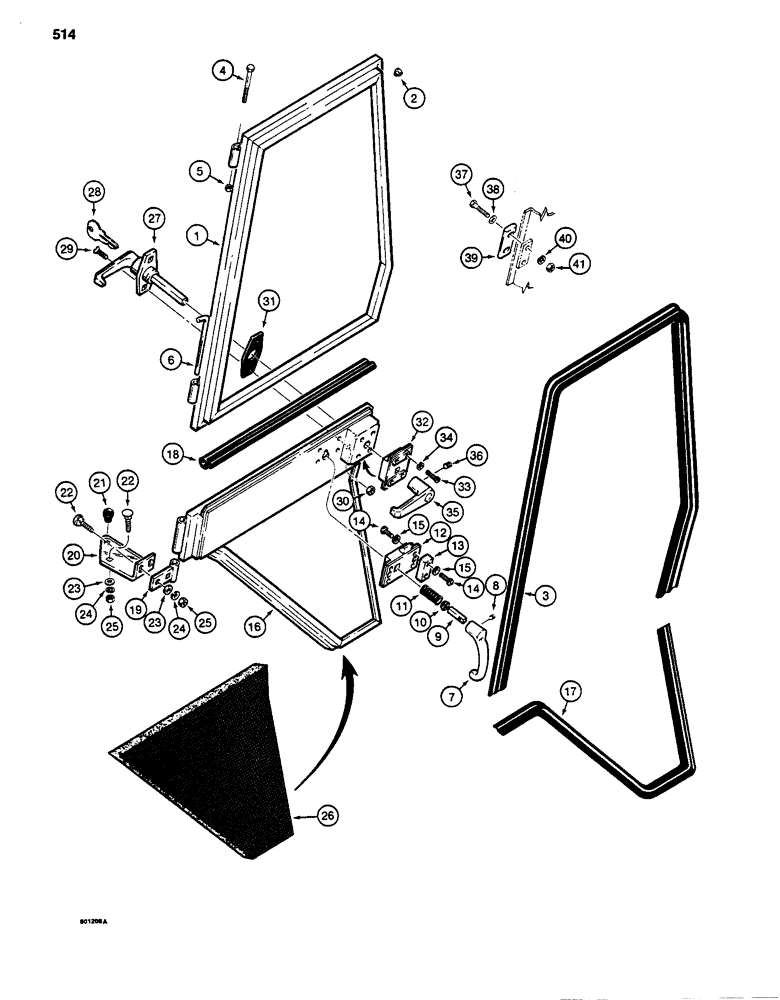

Запчасти Case 480D (514) - CAB DOOR AND LEFT-HAND WINDOW, 480D MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F96695

WINDOW

FRAME - front window, left-hand

1шт.

2

353-62

PLUG,Cap, .302" OD

- plastic, black, window frame sides and top

8шт.

3

REF

INSTRUCTION

SEAL - left-hand window, 90" (2286 mm) long, cut from F43086 bulk

1шт.

4

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

1шт.

5

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

6

F42100

PIN

- window and door

1шт.

7

F43966

HANDLE

- window, Includes: Ref. 8

1шт.

8

178-1102

SET SCREW,Hex Soc, #10-32 x 1/4"

- hex socket headless, No. 10 - 32 NF x 1/4", cone point

1шт.

9

F93880

SHAFT

- window latch, Includes: Ref. 10

1шт.

10

131-638

PUSH-ON NUT

- push on, shaft

1шт.

11

F43968

SPRING

- window latch

1шт.

12

F93892

LOCK

- window, left-hand

1шт.

13

F43964

BLOCK

- tapped, window latch

2шт.

14

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

MACHINE SCREW - pan head slotted, 1/4" - 20 NC x 3/8", plated

8шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

16

F93883

DOOR

- cab, does not include latches

1шт.

17

REF

INSTRUCTION

SEAL - lower door, 61-1/2" (1562 mm) long, cut from F44619 bulk

1шт.

18

REF

INSTRUCTION

SEAL - top of door, 23-3/4" (602 mm) long, cut from F43086 bulk

1шт.

19

F44591

HINGE

- door

1шт.

20

R37339

BRACKET

- door stop

1шт.

21

L60224

BUMPER

CUSHION - rubber, door stop

1шт.

22

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

3шт.

23

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

3шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

26

F45256

FOAM

PAD - foam, door panel

1шт.

F43086

SEAL

- bulk roll, 100 ft (3048 cm) long

1шт.

F44619

SEAL

- bulk roll, 100 ft (3048 cm) long

1шт.

345-44

ADHESIVE

- spray can, 23 oz, for attaching rubber pads to metal surface, not shown

1шт.

27

F93842

HANDLE

- door, outside, includes keys, Includes: Ref. 28

1шт.

28

A42653

SET OF 2 KEYS

KEY - handle

2шт.

29

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

MACHINE SCREW - oval Phillips head, No. 10 - 24 NC x 5/8", plated

2шт.

30

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

31

F63860

GASKET

- door handle

1шт.

32

F98123

LATCH

LOCK - door

1шт.

33

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 1/2", plated

4шт.

34

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

35

F63925

HANDLE

- door, inside, Includes: Ref. 36

1шт.

36

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

37

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

38

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

39

F63783

CATCH

STRIKER - latch

1шт.

40

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

41

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.
