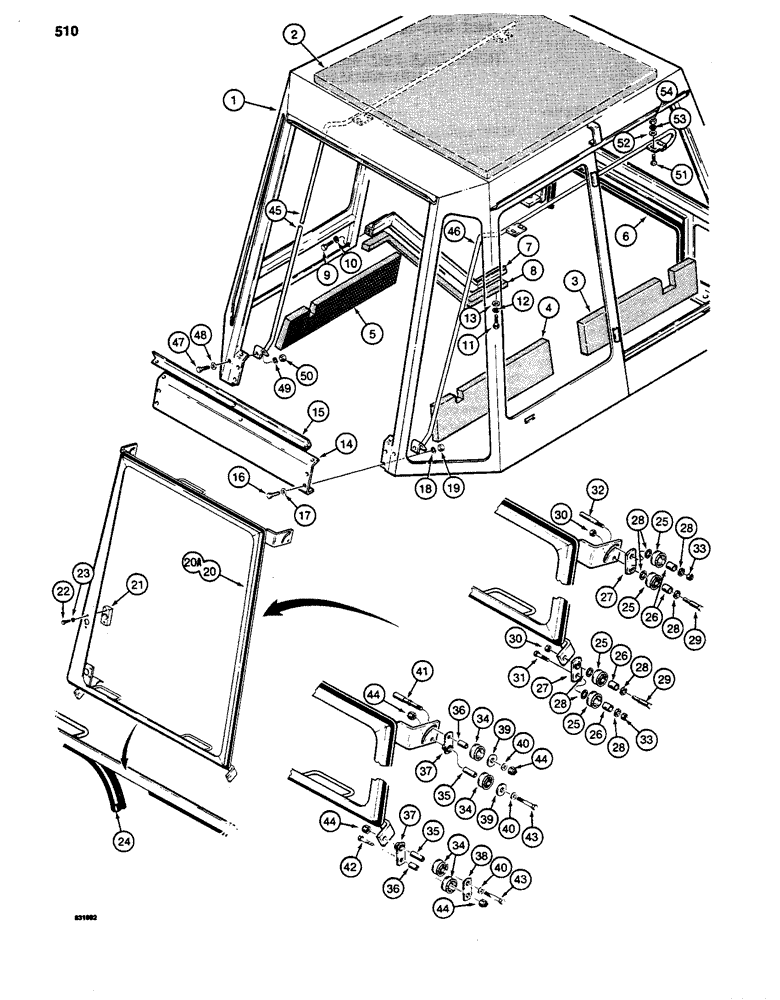

Запчасти Case 480D (510) - CAB FRAME AND REAR WINDOW, 480D MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

F44617

ROOF

PAD - headliner, cab top

1шт.

3

F43953

PLATE ASSY.

PAD - foam, right-hand, front panel

1шт.

4

F43951

FOAM

PAD - foam, right-hand rear panel

1шт.

5

F43952

PLATE ASSY.

PAD - foam, left-hand rear panel

1шт.

6

REF

INSTRUCTION

SEAL- cowl, 55" (1397 mm) long, cut from F43086 bulk

1шт.

7

F93886

FRAME

- door

1шт.

8

REF

INSTRUCTION

SEAL - door frame to fender, 34-1/2" (876 mm) long, cut from F44595 bulk

1шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

14

F43958

PANEL

- lower, rear

1шт.

15

F43959

ANGLE

- seal, lower panel

1шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

7шт.

17

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

7шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

7шт.

19

9635082

NUT,5/16" - 18, Gr 5

7шт.

20

REF

INSTRUCTION

FRAME - rear window, uses 5/6" hardware, no longer used, order F96874 frame and F96873 roller rework kit

1шт.

20a

F96874

FUNNEL

FRAME - rear window, requires 3/8" hardware

1шт.

21

R37439

BLOCK

- wiper mounting

1шт.

22

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

24

REF

INSTRUCTION

SEAL - rear window, 144" (3658 mm) long, cut from F43086 bulk

1шт.

25

REF

INSTRUCTION

ROLLER - rear window, uses 5/16" hardware, no longer used, order F96873 roller rework kit

8шт.

26

REF

INSTRUCTION

SPACER - roller, uses 5/16" hardware, no longer used, order F96873 roller rework kit

8шт.

27

REF

INSTRUCTION

ARM - roller, uses 5/16" hardware, no longer used, order F96873 roller rework kit

4шт.

28

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

16шт.

29

REF

INSTRUCTION

PIN - roller, 5/16", no longer used, order F96873 roller rework kit

4шт.

30

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

31

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

32

REF

INSTRUCTION

PIN - roller, 5/16", no longer used, order F96873 roller rework kit

2шт.

33

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

F43086

SEAL

- bulk roll, 100 ft (3048 cm)

1шт.

F44595

SEALING STRIP

- bulk roll, 50 ft (1524 cm)

1шт.

ref

345-44

ADHESIVE

- spray can, 23 oz., for attaching rubber pads to metal surfaces, not shown

1шт.

F96873

ROLLER

KIT - roller rework, rear window, includes instruction sheet, Includes: Ref. 34 - 44

1шт.

34

F43589

ROLLER

- rear window, uses 3/8" hardware

8шт.

35

F45286

BUSHING

SPACER - roller, long, uses 3/8" hardware

4шт.

36

F45287

BUSHING

SPACER - roller, short, uses 3/8" hardware

4шт.

37

F96872

ARM

- roller, uses 3/8" hardware

4шт.

38

F45288

PLATE

LINK - rear window, lower, uses 3/8" hardware

2шт.

39

F45290

WASHER

- special

4шт.

40

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

6шт.

41

F45289

PIN,9.53mm OD x 91.44mm L

- roller lock, 3/8" - 16 NC x 3-9/16"

2шт.

42

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

43

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

44

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

8шт.

45

F93879

TRACK CHAIN

TRACK - left-hand, rear window

1шт.

46

F93878

TRACK CHAIN

TRACK - right-hand, rear window

1шт.

47

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

48

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

49

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

50

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

51

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

8шт.

52

195-102

WASHER,1/4"

- flat, 5/16" ID x 3/4" OD, plated

8шт.

53

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

54

9635082

NUT,5/16" - 18, Gr 5

8шт.
