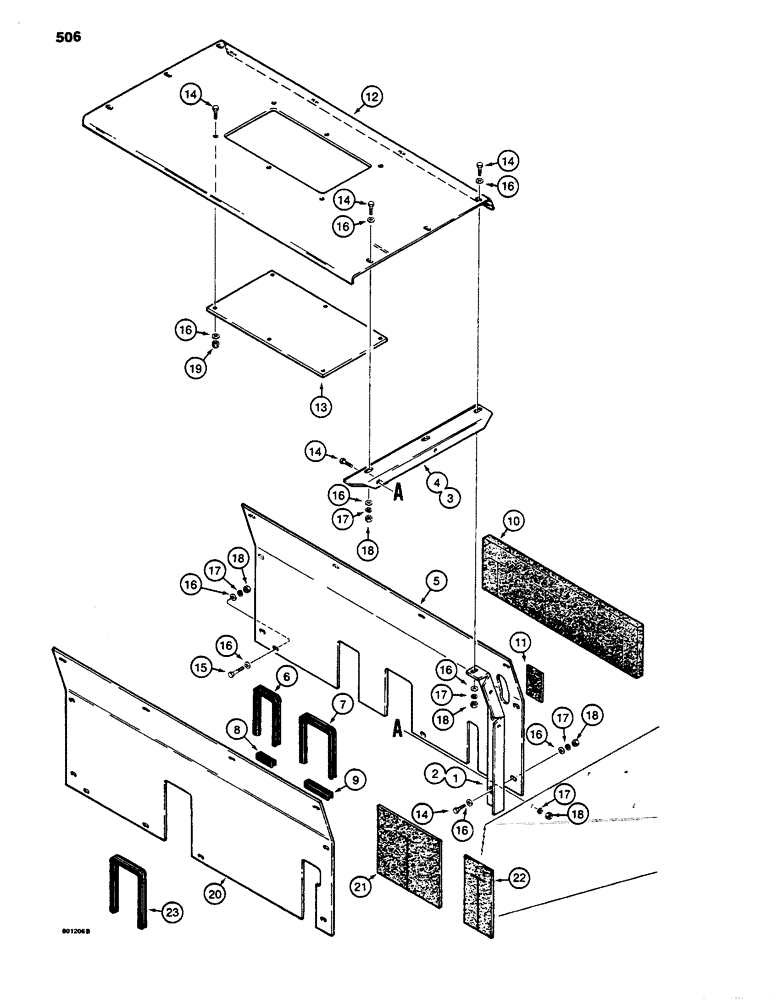

Запчасти Case 480D (506) - REAR CLOSURE PANELS, MODELS WITHOUT BACKHOE, 480D MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D71028

ANGLE

BRACKET - right-hand side

1шт.

2

D71029

ANGLE

BRACKET - left-hand side

1шт.

3

D71026

ANGLE

BRACKET - right-hand top

1шт.

4

D71027

ANGLE

BRACKET - left-hand top

1шт.

5

D73223

PANEL

CLOSURE PANEL - vertical, if used

1шт.

6

REF

INSTRUCTION

TRIM - edge, 12-1/2" (318 mm) long, cut from D52812, see below, if used

2шт.

7

REF

INSTRUCTION

TRIM - edge, 14-1/2" (368 mm) long, cut from D52812, see below, if used

2шт.

8

REF

INSTRUCTION

TRIM - edge, 3" (76 mm) long, cut from D52812, see below, if used

1шт.

9

REF

INSTRUCTION

TRIM - edge, 5" (127 mm) long, cut from D52812, see below, if used

1шт.

10

D74213

FOAM

PAD - foam, closure panel, if used

1шт.

11

D75251

FOAM

PAD - foam, closure panel, if used

1шт.

12

D74846

PANEL

CLOSURE PANEL - horizontal

1шт.

13

D74847

WINDOW

COVER - D74846 panel, see thru window

1шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

28шт.

15

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

16

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

40шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

25шт.

18

9635082

NUT,5/16" - 18, Gr 5

25шт.

19

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

6шт.

20

D122229

PANEL

CLOSURE PANEL - vertical, if used

1шт.

21

D99801

FOAM

PAD - foam, closure panel, if used

1шт.

22

D122818

PAD - foam, closure panel, cut from D99801 (Ref. 21), if used

1шт.

23

REF

INSTRUCTION

TRIM - edge, 18-5/8" (472 mm) long, cut from D52812, see below, if used

1шт.

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long

1шт.
