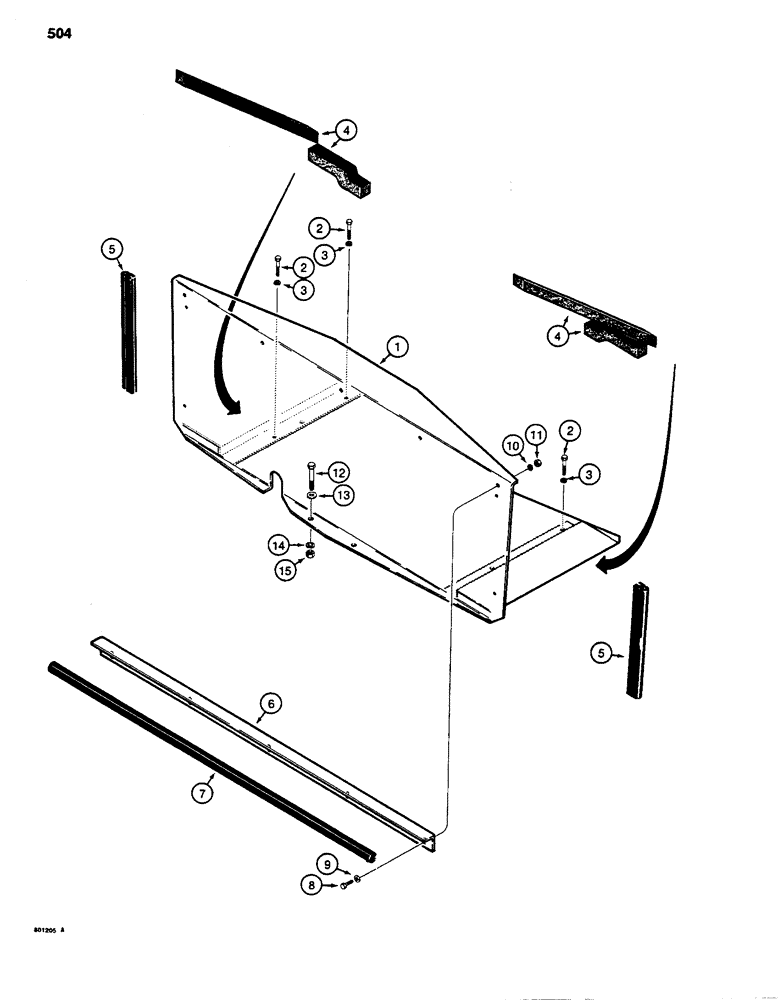

Запчасти Case 480D (504) - REAR CLOSURE PANELS, MODELS WITH BACKHOE, 480D MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D123223

PANEL

CLOSURE PANEL - rear, complete with paint and decals

1шт.

2

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

4

REF

INSTRUCTION

SEAL - rear closure panel, 22" (559 mm) long, cut from L35741 bulk, see below

2шт.

5

REF

INSTRUCTION

SEAL - rubber, rear closure panel, 10-13/16" (275 mm) long, cut from F64773 bulk, see below

2шт.

6

D99720

ANGLE

BRACKET - top, rear closure panel

1шт.

7

D121240

MOLDING

TRIM - edge, 38" (965 mm) long

1шт.

8

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

5шт.

9

195-102

WASHER,1/4"

- flat, , plated 1/4"

5шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

5шт.

12

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

13

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

L35741

FOAM

SEAL - foam, bulk, 50 ft (1524 cm) long

1шт.

F64773

DOOR SEAL

- rubber, bulk, 15 ft (457 cm) long

1шт.
