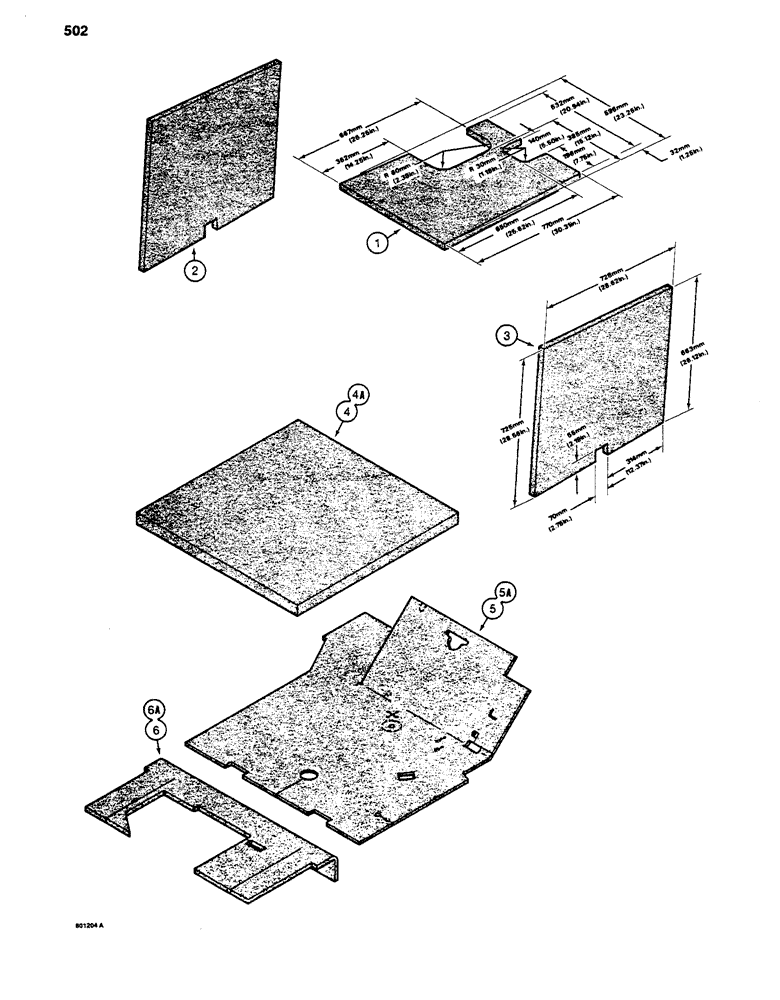

Запчасти Case 480D (502) - NOISE REDUCTION PADS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

PAD - hood, cut from D89609 bulk

1шт.

2

REF

INSTRUCTION

PAD - engine side panel, left-hand, cut from D89609 bulk, see Ref. 3 for cutting dimensions

1шт.

3

REF

INSTRUCTION

PAD - engine, side panel, right-hand, cut from D89609 bulk

1шт.

4

D74589

PAD

- ROPS canopy roof, black, if used

1шт.

4a

D124290

ROOF

PAD - ROPS Canopy roof, brown, if used, not shown

1шт.

5

D69730

FLOOR MAT

FLOORMAT - front, black, if used

1шт.

5a

D124289

FLOOR MAT

FLOORMAT - front, brown, if used, not shown

1шт.

6

D99768

FLOOR MAT

FLOORMAT - backhoe floor plate, black, if used

1шт.

6a

D124291

FLOOR MAT

FLOORMAT - backhoe floor plate, brown, if used, not shown

1шт.

D89609

PAD

- bulk, adhesive back, 54" (1372 mm) x 36" (914 mm) x 1" (25 mm), not shown

1шт.

345-44

ADHESIVE

- spray can, 23 oz., for attaching rubber pads to metal surface, use with Refs. 4 and 4A above

1шт.
