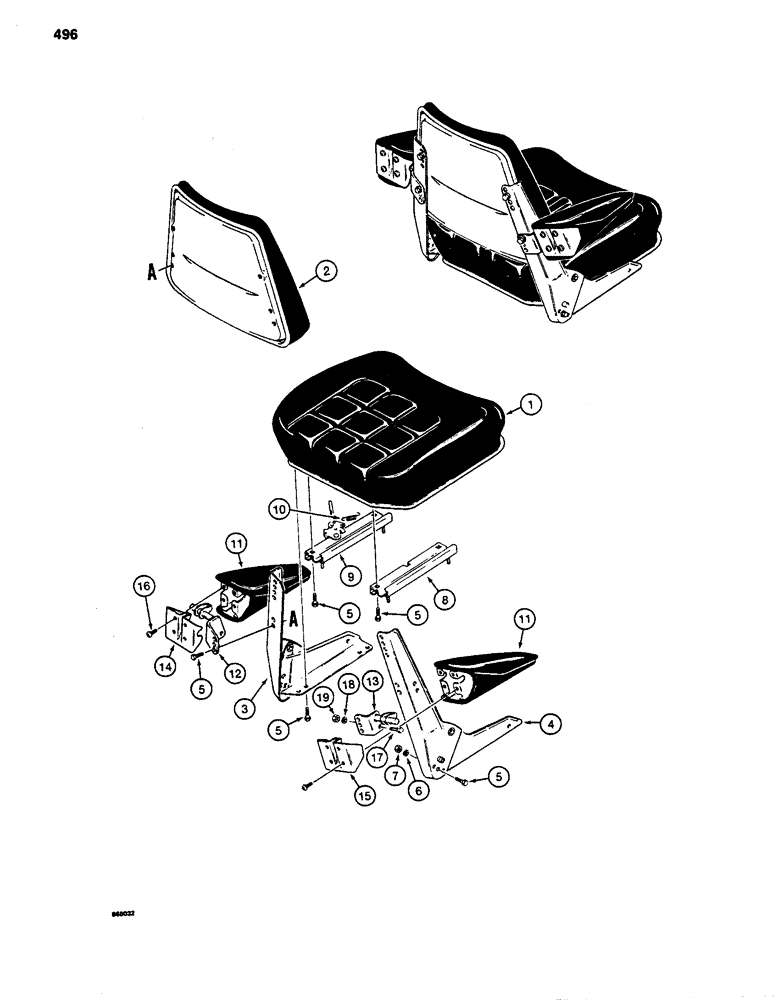

Запчасти Case 480D (496) - D76157 SEAT AND ARMRESTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

D76157

SEAT

ASSEMBLY - operator, black, with optional armrest, Includes: Ref. 1 - 10

1шт.

See Figures 498 and 500 for other seats.

1шт.

D81519

SEAT

ASSEMBLY - operator, black, no longer available, order D123196 seat for service, see Figure 498, Includes: Ref. 1 - 7

1шт.

1

D56883

SEAT

CUSHION - seat, black

1шт.

2

D56884

BACKREST

- seat, black

1шт.

3

D56885

RAIL ASSY.

SUPPORT - seat, left-hand

1шт.

4

D56886

RAIL ASSY.

SUPPORT - seat, right-hand

1шт.

5

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

14шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

D56887

SEAT

SLIDE - seat, right-hand, uses 5/8" long bolt

1шт.

9

D56888

ADJUSTER

SLIDE - seat, left-hand, adjustment side, uses 5/8" long bolt, Includes: Ref. 10

1шт.

10

L35503

SPRING

- adjustment lever

1шт.

D56424

ARMREST

KIT - armrest, Includes: Ref. 11 - 19

1шт.

11

D56898

ARMREST

- operator

2шт.

12

D56899

BRACKET

- mounting, left-hand

1шт.

13

D56900

BRACKET

- mounting, left-hand

1шт.

14

D56901

BRACKET

PLATE - mounting, left-hand

1шт.

15

D56902

BRACKET

PLATE - mounting, right-hand

1шт.

16

187-1004

SELF-TAP SCREW,Cross Flat Hd, #8 x 3/8"

SCREW - flat Phillips head, self-tapping, No. 8 - 32 NC x 3/8"

8шт.

17

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.
