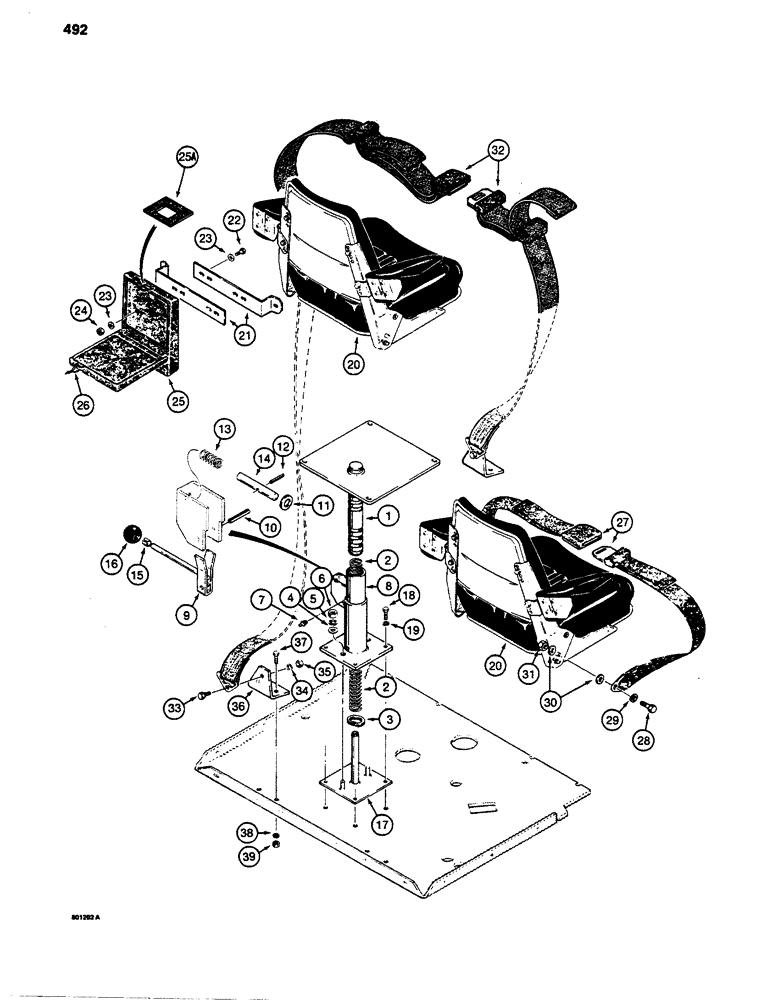

Запчасти Case 480D (492) - SEAT MOUNTING PARTS AND SEAT BELTS, 480D MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D87657

POST

- seat mounting

1шт.

2

D84284

SPRING

- seat

1шт.

3

D49776

SNAP RING,#187, 2.008", Int, Spiral

- spring retaining

1шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

8

D64776

POST

- seat base

1шт.

9

D38258

LOCK

LEVER - seat height adjustment

1шт.

10

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

11

D49941

SPRING WASHER

- flat

1шт.

12

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

13

D49774

SPRING

- lock

1шт.

14

D84285

PIN,12.7mm OD x 84.07mm L

- post latch

1шт.

15

D38673

RING

- knob retaining

1шт.

16

D38643

KNOB

- height adjustment lever

1шт.

17

D62012

POST

BASE - seat post

1шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

REF

INSTRUCTION

SEAT ASSEMBLY - operators, see Figures 496, 498 or 500 for correct seat

1шт.

21

D79933

BRACKET

- operators manual box, if used, for models with fender mounted box, see Figure 474 or 476

2шт.

22

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex head, 1/4" - 20 NC x 7/8", plated

2шт.

23

195-18

WASHER,1/4"

- flat, 1/4"

4шт.

24

193-1006

NUT,Keps, w/LW, 1/4"-20

AND LOCK WASHER - 1/4" - 20 NC, plated

2шт.

25

R38893

CASE

MANUAL BOX - operators, if used, see Figure 474 for models with box mounted on fender, Includes: Ref. 25A

1шт.

25a

N7120

LATCH

- manual box

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

D87964

SAFETY BELT

SEAT BELT - 2" (51 mm) wide, fastens to seat, if used

1шт.

28

114-302

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- hex head, 7/16" - 20 NF x 1-1/4", plated

2шт.

29

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

30

195-529

WASHER,7/16", SAE

plated 7/16", SAE

4шт.

31

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

2шт.

32

D83760

SAFETY BELT

SEAT BELT - 3" (76 mm) wide, fastens to brackets on floor plate, if used

1шт.

33

F42236

STEP BOLT

BOLT - shoulder, 7/16" - 20 NF x 1-1/4", plated

2шт.

34

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

35

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 24 NF, plated

2шт.

36

D75008

BRACKET

- mounting, seat belt

2шт.

37

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
