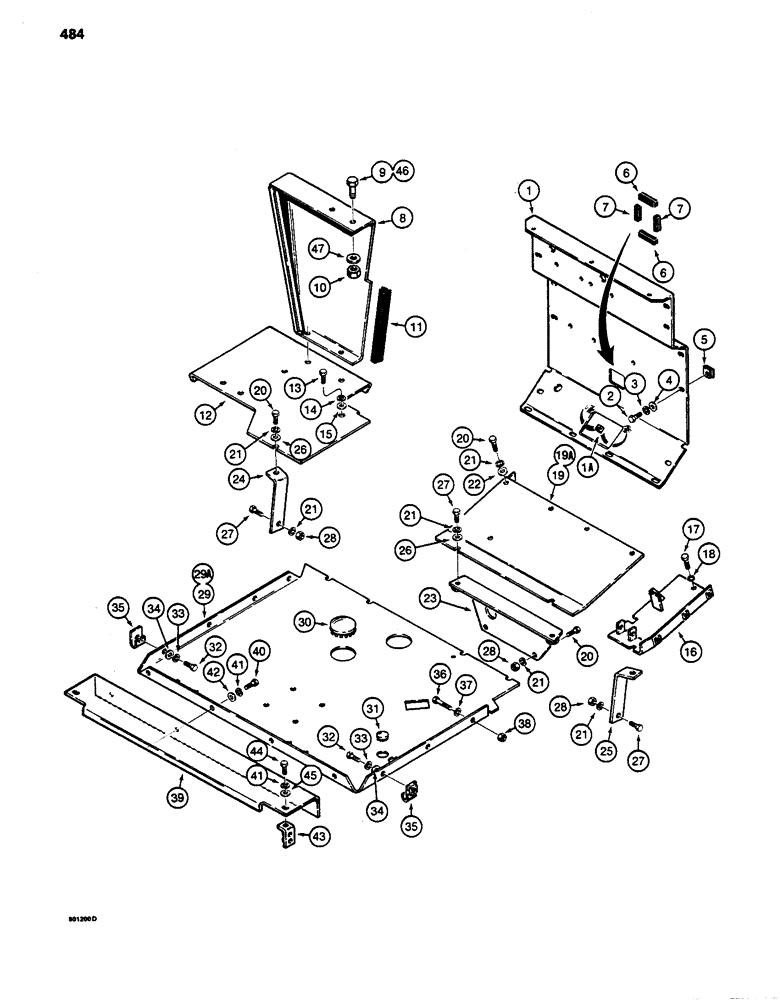

Запчасти Case 480D (484) - FLOOR PLATES AND FIREWALL, 480D MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D99527

PANEL ASSY.

FIREWALL - pedal mounting, Includes: Ref. 1A

1шт.

1a

25-226

SQUARE NUT,Sq, 3/8"-16

- square, cage, 3/8" - 16 NC

2шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

12шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

12шт.

5

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, Ret, J, 3/8"-16

12шт.

6

REF

INSTRUCTION

TRIM - edge, firewall opening, horizontal, 2-1/4" (57 mm) long, cut from D52812 bulk, see below

2шт.

7

D72356

LINING

TRIM - edge, firewall opening, vertical

2шт.

8

D68362

PANEL

- front, left-hand

1шт.

9

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

Used on models with cab or canopy Hex, 5/8"-11 x 2", G8

2шт.

10

129-183

NUT,5/8"-11, G8

2шт.

11

D95812

CHANNEL

TRIM - edge, panel

1шт.

12

D70774

FLOOR

PLATE - floor entrance

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

16

D66769

PLATE

- floor, front, right-hand

1шт.

17

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

D84332

FLOOR

PLATE - floor, front, with clutch cutout switch mounting bracket, no longer available, for service order D127013 plate, D124618 clutch cutout switch, and D126116 washer, see Figure 106 for switch and washer

1шт.

19a

D127013

PLATE ASSY.

PLATE - floor, front, without clutch cutout switch mounting bracket

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

22

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

23

D68457

BRACKET

- crossmember

1шт.

24

D70276

BRACKET

- left-hand

1шт.

25

D70277

BRACKET

- right-hand

1шт.

26

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

27

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

29

D75146

PLATE

- floor, rear, used on models with differential lock rod, see Figure 176

1шт.

29a

D133310

PLATE

- floor, rear, used on models with differential lock pedal, see Figure 178, not shown

1шт.

30

205-72

HOLE PLUG BUTTON,3"

PLUG - button, (76 mm) diameter 3"

1шт.

31

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2" (38 mm) diameter

3шт.

32

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

34

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

6шт.

35

131-636

SPRING NUT,J, Ret, 5/16"-18

- J-type, 5/16" - 18 NC

6шт.

36

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

37

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

38

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

39

D70066

PANEL

PLATE - spacer, rear floor plate to backhoe frame, if used

1шт.

40

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

41

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

42

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

43

D77105

BRACKET

- spacer plate

2шт.

44

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

45

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

46

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Used on models without cab or canopy Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

47

195-541

WASHER,5/8", SAE

- flat, 5/8", plated, used on models without cab or canopy

2шт.

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long

1шт.
