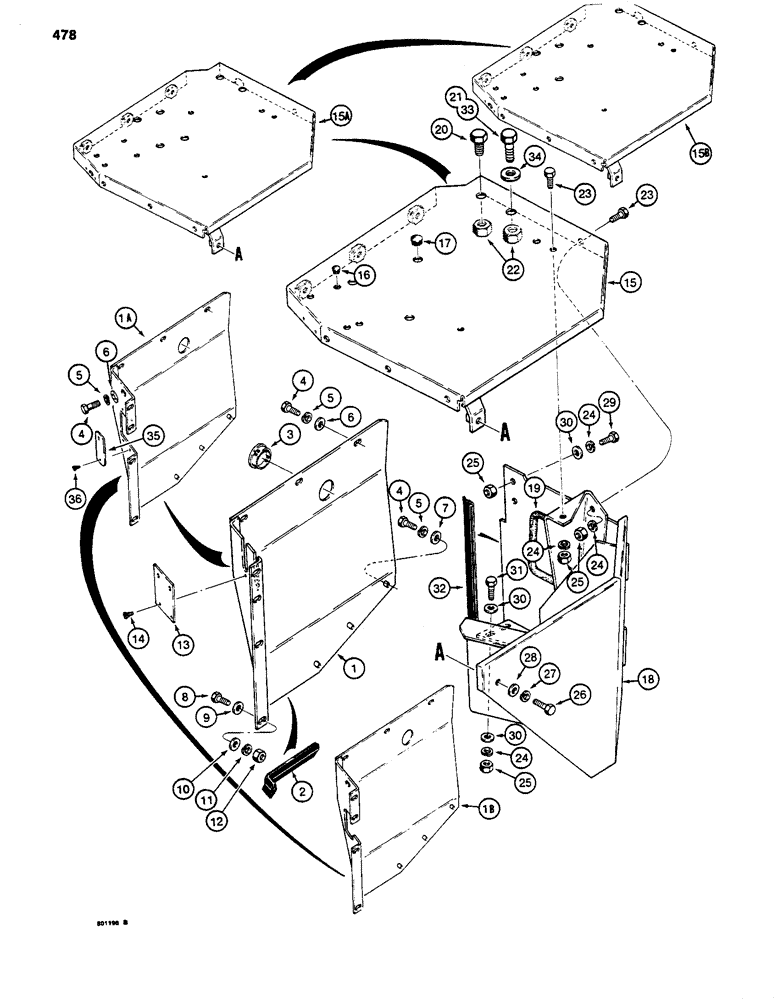

Запчасти Case 480D (478) - BATTERY COMPARTMENT AND VALVE MOUNTING PLATE, 480D MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D78078

PANEL

SHIELD - plastic, used on models with dual control levers

1шт.

1b

D127146

PANEL

SHIELD - plastic, used on models with Case control valve with single control lever

1шт.

2

D72862

HOSE

TRIM - edge, shield

1шт.

3

353-417

PLUG,Dome, 2.000" hole, Nylon

- button, 2" (51 mm) diameter

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6-7шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6-7шт.

6

195-524

WASHER,5/16"

- flat, , x 1-1/8" (29 mm) OD, plated 5/16"

5-6шт.

7

195-521

WASHER,5/16", SAE

- flat, 5/16" x 11/16" (17 mm) OD, plated

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

9

95-6

WASHER,3/8"

- flat, x 1" (25 mm) OD 3/8"

4шт.

10

195-525

WASHER,3/8", SAE

- flat, 3/8" x 13/16" (21 mm) OD, plated

4шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

13

D75045

PLATE

- cover, valve lever slots, used on models without loader

1шт.

14

187-1325

SELF-TAP SCREW,Sltd Pan Hd, #10 x 1/2"

SCREW - pan head, slotted, self-tapping, No. 10 - 16 NC x 1/2", plated

4шт.

15

D93916

COVER

PLATE - valve mounting, used on models with dual control levers

1шт.

15a

D121464

COVER

PLATE - valve mounting, used on models with Parker control valve with single control lever, includes decals, for decals see Figures 542 and 544 , items 17, 24, 27, and 28

1шт.

15b

D128769

VALVE COVER

PLATE - valve mounting, used on models with Case control valve with single control lever, includes decals, for decals see Figures 542 and 544, items 17, 24, 27, and 28

1шт.

16

205-75

PLUG,13/32"

- button, (10 mm) diameter, used on models without loader 13/32"

4шт.

17

205-33

HOLE PLUG BUTTON,25/32"

PLUG - button, (20 mm) diameter, used on models without loader 25/32"

3шт.

18

D68445

BOX

COVER - hinged, battery and control valve

1шт.

19

REF

INSTRUCTION

TRIM - edge, hose opening, 18-5/8" (473 mm) long, cut from D52812, see below

1шт.

20

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

Used on models with cab or canopy Hex, 5/8"-11 x 2", G8

1шт.

21

113-684

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

Used on models with cab or canopy Hex, 5/8"-11 x 2 1/2", G8

1шт.

22

129-183

NUT,5/8"-11, G8

2шт.

23

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

26

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

28

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

29

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

30

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

31

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

32

D95811

CHANNEL

TRIM - edge, battery and control valve cover, if used, not required

1шт.

33

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Used on models without cab or canopy Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

34

195-541

WASHER,5/8", SAE

- flat, 5/8", used on models without cab or canopy

2шт.

35

D72241

PLATE

- closure, used on models with single control lever

1шт.

36

187-1325

SELF-TAP SCREW,Sltd Pan Hd, #10 x 1/2"

SCREW - pan head, slotted, self-tapping, No. 10 - 16 NC x 1/2", plated

2шт.

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long

1шт.
