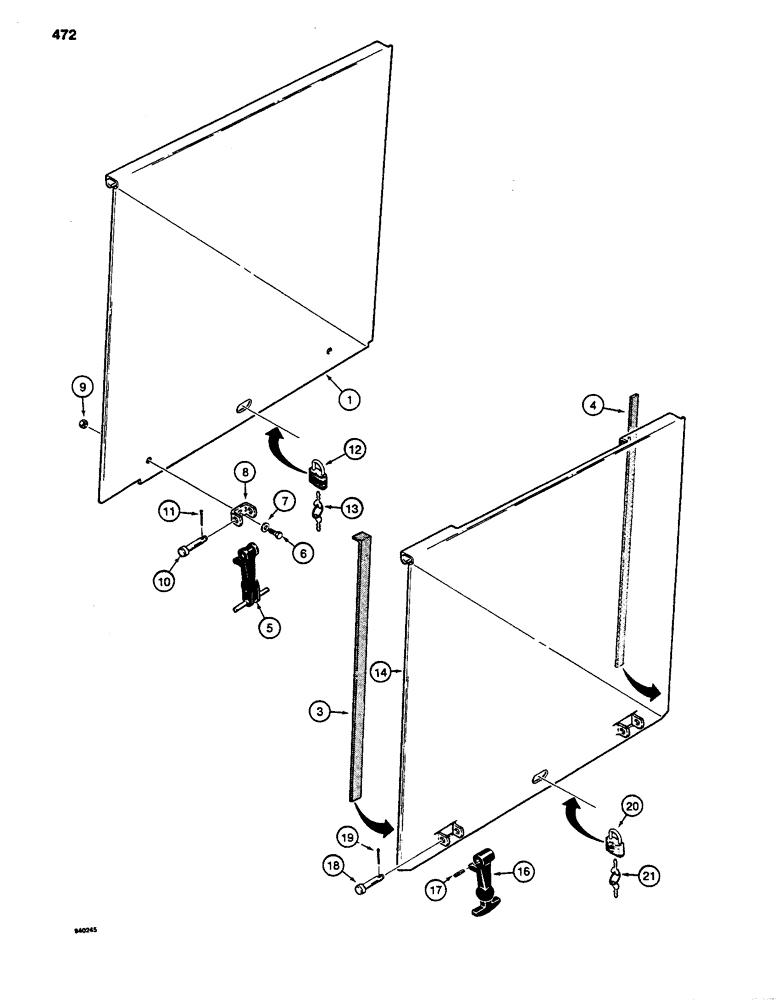

Запчасти Case 480D (472) - ENGINE SIDE PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D85909

SPARE PART

PANEL - engine side, right-hand, no longer used, for service order D123187 panel (Ref. 14), (2) H54890 pins (Ref. 18), (2) 132-3 cotter pins (Ref. 19), and (2) 138-55 roll pins (Ref. 17)

1шт.

Models with Bolt-On Bracket

1шт.

2

D85910

SPARE PART

PANEL - engine side, left-hand, no longer used, for service order D123818 panel (Ref. 15), (2) H54890 pins (Ref. 18), (2) 132-3 cotter pins (item 19), and (2) 138-55 roll pins (Ref. 17), not shown

1шт.

Models with Bolt-On Bracket

1шт.

3

D99064

FOAM

STRIP - rubber, rear of both side panels

2шт.

Models with Bolt-On Bracket

1шт.

4

D91137

STRIP

- rubber, front of both side panels

2шт.

Models with Bolt-On Bracket

1шт.

5

L47157

HOOK

- side panel retaining

4шт.

Models with Bolt-On Bracket

1шт.

6

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

Models with Bolt-On Bracket

1шт.

7

195-21

WASHER,5/16"

- flat, , No longer used 5/16"

4шт.

Models with Bolt-On Bracket

1шт.

8

L47159

BRACKET

- hook retaining, side panel

4шт.

Models with Bolt-On Bracket

1шт.

9

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

Models with Bolt-On Bracket

1шт.

10

141-66

CLEVIS PIN,5/16" x 1 13/16"

- 5/16", special length, plated, hook mounting

4шт.

Models with Bolt-On Bracket

1шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

Models with Bolt-On Bracket

1шт.

12

D93753

PADLOCK

- engine side panels, includes keys, if used, Includes: Ref. 13

2шт.

Models with Bolt-On Bracket

1шт.

13

R29555

KEY

- for Master padlock only

2шт.

Models with Bolt-On Bracket

1шт.

13

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

Models with Bolt-On Bracket

1шт.

14

D123817

PANEL

- engine side, right-hand

1шт.

Models with Welded Bracket

1шт.

15

D123818

PANEL

- engine side, left-hand, not shown

1шт.

Models with Welded Bracket

1шт.

16

D121323

LATCH ASSY.

HOOK - engine side panel

4шт.

Models with Welded Bracket

1шт.

17

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, , Hook bushing 1/8" x 5/8", Slotted

4шт.

Models with Welded Bracket

1шт.

18

H54890

CLEVIS PIN,4.76mm OD x 46.04mm L

PIN - hook mounting

4шт.

Models with Welded Bracket

1шт.

19

132-3

COTTER PIN,1/16" x 3/8"

Pin, Split (Cotter), 1/16" x 3/8"

4шт.

Models with Welded Bracket

1шт.

20

D93753

PADLOCK

- engine side panels, includes keys, if used, Includes: Ref. 21

2шт.

Models with Welded Bracket

1шт.

21

R29555

KEY

- for Master padlock only

2шт.

Models with Welded Bracket

1шт.

21

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

Models with Welded Bracket

1шт.
