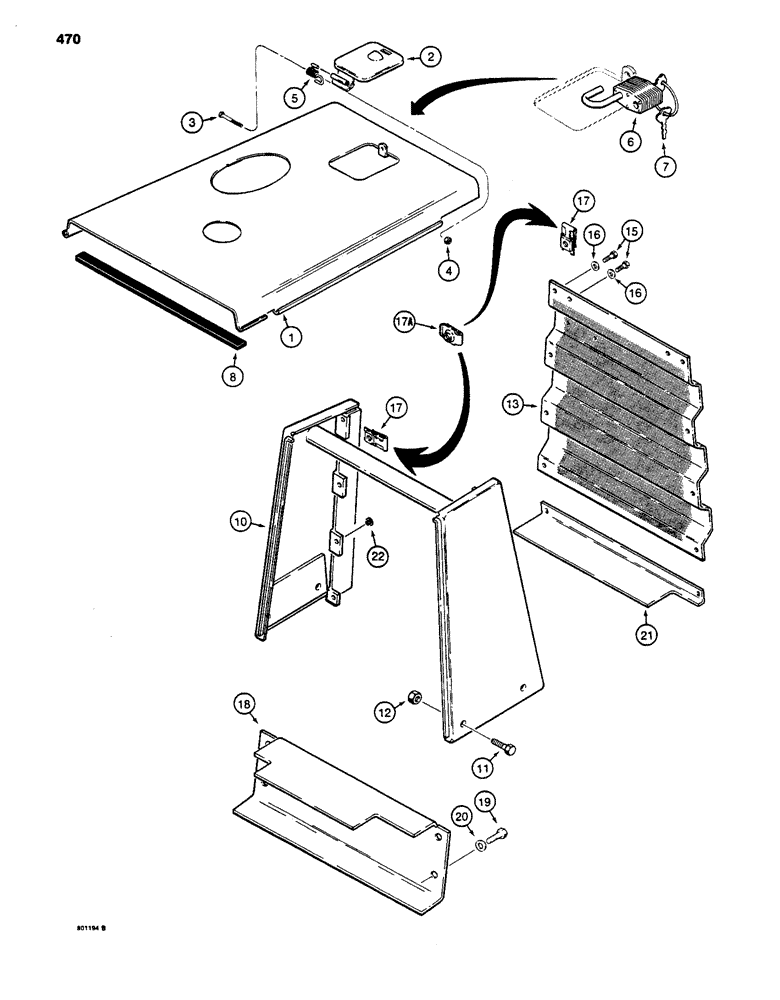

Запчасти Case 480D (470) - HOOD AND RADIATOR SHROUD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D85896

HOOD

- engine, used on models with vertical air cleaner intake tube

1шт.

1

D99760

HOOD

- engine, used on models with horizontal air cleaner intake tube, not shown

1шт.

2

D92446

DOOR

- access, radiator cap, includes decal, see Figure 542

1шт.

3

113-53

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

1шт.

4

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

1шт.

5

D121677

SPRING

- radiator access door

1шт.

6

D93753

PADLOCK

- radiator access, includes keys, if used, Includes: Ref. 7

1шт.

7

R29555

KEY

- for Master padlock only

2шт.

7

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

8

D99064

FOAM

STRIP - rubber, rear of hood

2шт.

9

RESERVED

1шт.

10

D88842

GUARD

SHROUD - radiator

1шт.

11

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

12

129-108

NUT,3/4"-10, G5

- hex, 3/4" - 16 NC, plated

4шт.

13

D91062

GUARD

GRILLE - radiator

1шт.

14

RESERVED

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6-10шт.

16

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

6-10шт.

17

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, , If used Ret, J, 3/8"-16

6-10шт.

17a

D122307

NUT

NUT - U-type, 3/8" - 16 NC, if used

6-10шт.

18

D99825

GUARD

- pump, not used with front counterweight

1шт.

19

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex head, 3/4" - 16 NC x 1-1/4", plated

4шт.

20

195-45

WASHER,3/4"

4шт.

21

D99779

PLATE

- radiator shroud, not used with pump guard

1шт.

22

L60224

BUMPER

- rubber, replaces four bolts and attaching hardware on some models

4шт.
