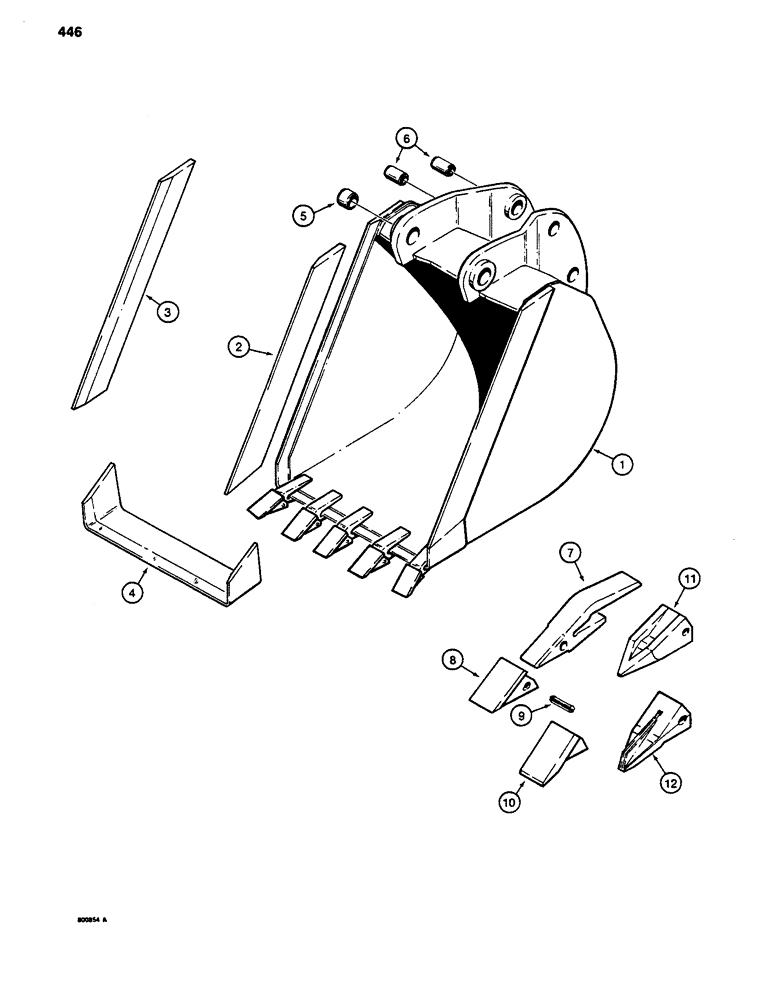

Запчасти Case 480D (446) - BACKHOE BUCKETS, 480D MODELS ONLY, TRENCHING BUCKETS - HEAVY DUTY (84) - BOOMS, DIPPERS & BUCKETS

1

D57546

BUCKET

ASSEMBLY - 18" (457 mm), machinery item - see Figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

2

D57550

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

3

D57551

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

4

D57594

EDGE, CUTTING

CUTTING EDGE - bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link

4шт.

1

D57544

BUCKET

ASSEMBLY- 24" (610 mm), machinery item - see Figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

2

D57550

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

3

D57551

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

4

D57591

EDGE, CUTTING

CUTTING EDGE - bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link

2шт.

D48035

TOOTH

ASSEMBLY - heavy duty bucket only, Includes: Ref. 7 - 9

1шт.

7

D48212

SHANK

- tooth assy

1шт.

8

D39093

TOOTH

POINT - tooth assy

1шт.

9

D39094

BUCKET TOOTH KEY

FLEX PIN - point, tooth assy

1шт.

10

D44193

TOOTH

POINT - tooth, heavy duty, flat end, service option, assy

1шт.

11

D80119

TOOTH

POINT - tooth, heavy duty, pointed end, service option, assy

1шт.

12

D79100

TOOTH

POINT - tooth, heavy duty, star point, service option, assy

1шт.
