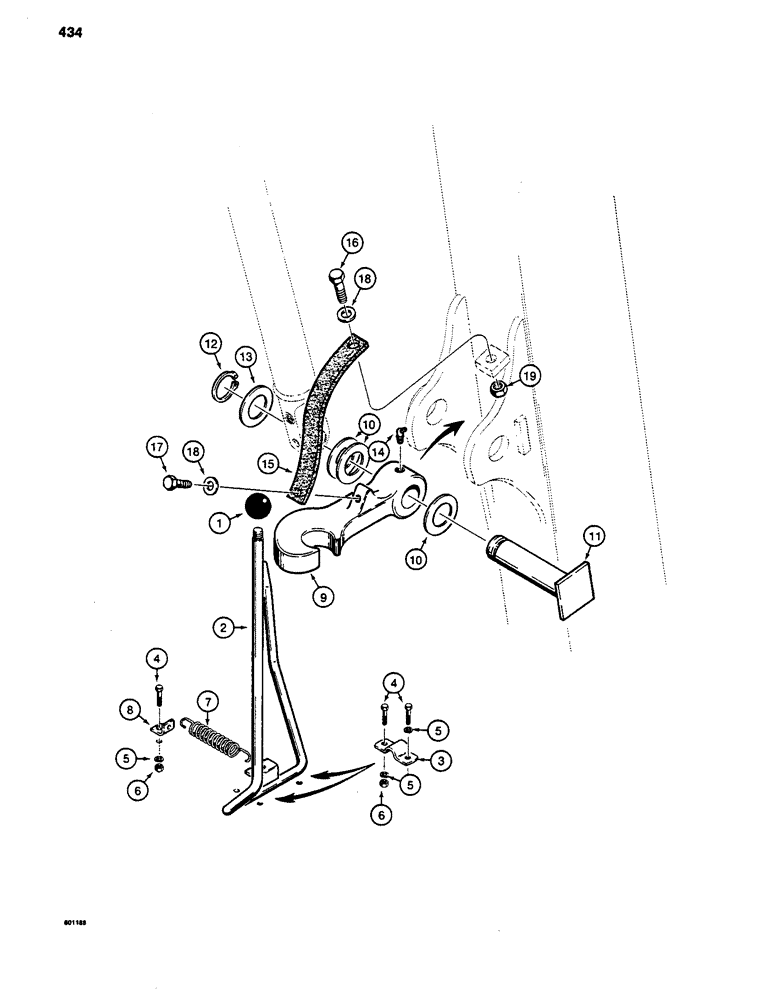

Запчасти Case 480D (434) - BACKHOE BOOM LATCH, 480D MODELS ONLY (84) - BOOMS, DIPPERS & BUCKETS

1

D59912

KNOB

- lever, boom latch release

1шт.

2

D99728

HANDLE

LEVER - boom latch release

1шт.

3

D99717

CLAMP

- control lever

2шт.

4

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

6

9635082

NUT,5/16" - 18, Gr 5

3шт.

7

F17468

SPRING

- control lever

1шт.

8

D99719

PLATE, LOCKING

BRACKET - spring retaining

1шт.

9

D99787

LATCH

- retaining, backhoe boom

1шт.

10

D31312

WASHER

- spacer, 2-3/4" (70 mm) OD x 1/16" (1.6 mm) thick

1шт.

11

D99037

PIN

- latch retaining

1шт.

12

D25279

SNAP RING,M35, Int

- pin retaining

1шт.

13

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- 2-1/2" (64 mm) OD x 1/8" (3.2 mm) thick

1шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, special short, 1/8" NPT

1шт.

15

D99039

STRAP

- boom latch

2шт.

16

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

18

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

19

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.
