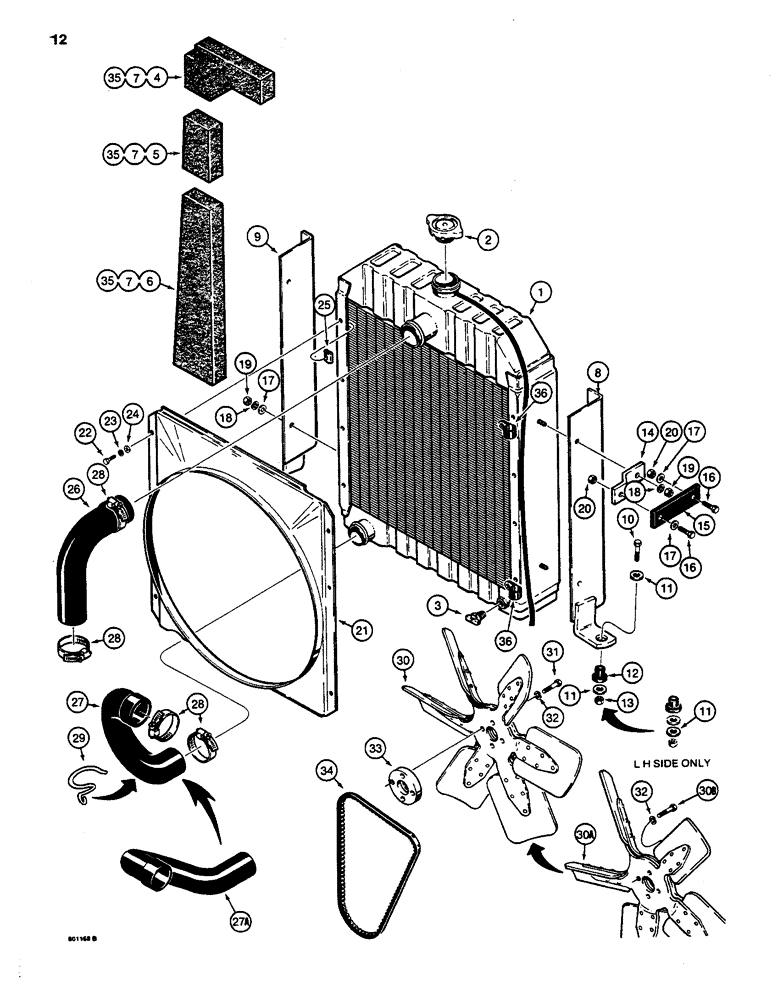

Запчасти Case 480D (012) - RADIATOR, FAN AND MOUNTING PARTS (10) - ENGINE

1

D81055

RADIATOR

- engine cooling

1шт.

2

F23120

CAP

- radiator

1шт.

3

217-103

COCK, DRAIN

VALVE - drain

1шт.

4

NSS

NOT SOLD SEPARAT

BAFFLE - radiator, top, cut from D92228, base size is 4-5/8" (118 mm) x 8-1/2" (215 mm)

2шт.

5

NSS

NOT SOLD SEPARAT

BAFFLE - radiator, upper, cut from D92228, base size is 3" (76 mm) x 5" (127 mm)

2шт.

6

NSS

NOT SOLD SEPARAT

BAFFLE - radiator, lower, cut from D92228, base size is 4-3/8" (110 mm) x 16-3/4" (425 mm)

2шт.

7

D92228

BAFFLE

- bulk pad, 35-1/2" (900 mm) x 55-1/8" (1400 mm) x 1-1/2" (38 mm), use to cut Ref. 3, 4 and 5, not shown, also see Ref. 35

1шт.

8

D99841

SUPPORT

- radiator, right-hand, lower bracket spot welded, uses Ref. 11 under bolt head only

1шт.

8

D121319

BRACKET

SUPPORT - radiator, right-hand, lower bracket fillet welded, uses Ref. 11 under bolt head and under insulator

1шт.

9

D99839

SUPPORT

- radiator, left-hand, lower bracket spot welded, uses Ref. 11 under bolt head only

1шт.

9

D121320

BRACKET

SUPPORT - radiator, left-hand, lower bracket fillet welded, uses Ref. 11 under bolt head and under insulator

1шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

11

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special, use one or two on right-hand side, use two or three on left-hand side, see Ref. 8 and 9

3-5шт.

12

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - vibration, rubber

2шт.

13

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

14

D99734

BRACKET

- radiator mounting, side

2шт.

15

D73500

STRAP

- radiator mounting, side

2шт.

16

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

17

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

20

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

21

D81056

SHROUD ASSY.

SHROUD - radiator, plastic

1шт.

22

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

24

195-102

WASHER,1/4"

- flat, , plated 1/4"

6шт.

25

131-620

SPRING NUT,J, 1/4" - 20, 0.025" Thk

- J-type, 1/4"

6шт.

26

D81057

RADIATOR HOSE,50.80 mm ID x 192.00 mm, SAE J20, SAE 20R4 CLASS D2

Upper 50.80 mm ID x 192.00 mm, SAE J20, SAE 20R4 CLASS D2

1шт.

27

D81058

HOSE

- radiator, lower, used with D82192 support, no longer available, order D122895 hose (Ref. 27A)

1шт.

27a

D122895

RADIATOR HOSE,44.50 mm ID, 50.80 mm ID x 300 mm, SAE 20R4 Class D2 per SAE J20

- Lower, D82192 support not required with this hose 44.50 mm ID, 50.80 mm ID x 300 mm, SAE 20R4 Class D2 per SAE J20

1шт.

28

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

29

D82192

SUPPORT

- lower radiator hose, used with D81058 hose (Ref. 27), if used

1шт.

30

D86230

FAN

- suction, six blades, uses Ref. 31 bolts, if used

1шт.

30a

D93696

FAN

- suction, five blades, uses Ref. 30B bolts, if used

1шт.

NOTE: Service blade 84262085 has 10 blades

1шт.

30b

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Used with Ref. 30A only

4шт.

31

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Used with ref. 30 only Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

33

D125149

SPACER

- fan

1шт.

34

D73446

V-BELT,0.50" W x 51.50" L

Engine 0.50" W x 51.50" L

1шт.

35

345-44

ADHESIVE

- spray can, 23 oz., for attaching foam pads to metal surface, not shown

1шт.

36

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- radiator overflow hose, if used

2шт.
