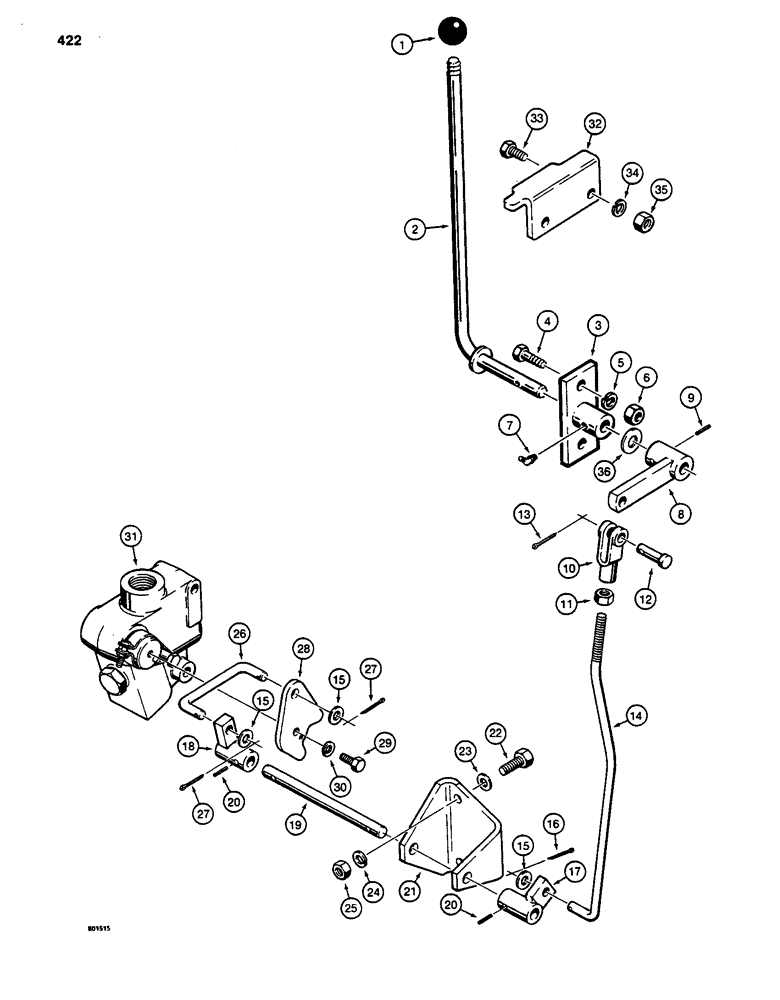

Запчасти Case 480D (422) - BACKHOE BOOM LOCK CONTROL, 480D MODELS ONLY (84) - BOOMS, DIPPERS & BUCKETS

1

D59912

KNOB

- control lever

1шт.

2

D89994

LEVER

CONTROL LEVER - boom lock

1шт.

3

D89341

BRACKET

SUPPORT - boom lock control

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

7

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 90 degree, 1/8" NPT

1шт.

8

D89344

CRANK

LEVER - pivot

1шт.

9

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

10

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - 3/8"

1шт.

11

129-123

NUT,3/8"-24, G5

1шт.

12

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

13

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

14

D99786

ROD

- boom lock control

1шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

3шт.

16

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

17

D99781

ARM

- inner

1шт.

18

D99782

ARM

- outer

1шт.

19

D99780

LINK

SHAFT - pivot, boom lock control

1шт.

20

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

21

D99783

BRACKET

- pivot shaft

1шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

23

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

26

D99785

LINK

- shaft arm to boom lock valve lever

1шт.

27

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

28

D89888

LEVER

- boom lock valve

1шт.

29

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

31

D88644

VALVE

- boom lock, parts list Figure 338, mounting parts on Figure 268

1шт.

32

D93422

BRACKET

- control lever latch

1шт.

33

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

35

9635082

NUT,5/16" - 18, Gr 5

2шт.

36

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.
