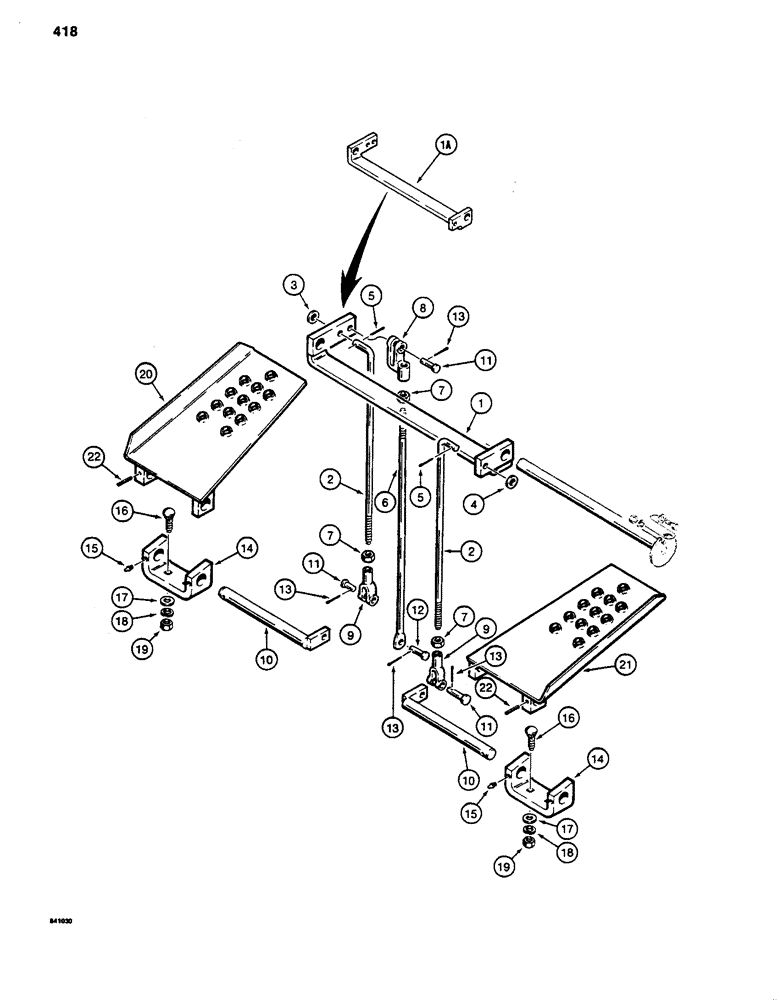

Запчасти Case 480D (418) - BACKHOE CONTROLS WITH FOOT SWING, SWING PEDALS AND MOUNTING, 480D MODELS ONLY (84) - BOOMS, DIPPERS & BUCKETS

1

D86082

BRACKET

- swing pivot, no longer used, order D129392 bracket

1шт.

1a

D129392

BRACKET

- swing pivot

1шт.

2

D81905

ROD

- swing pedal, Serial Range: shaft-bracket

2шт.

3

T40163

WASHER

- flat, left-hand rod

1шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, right-hand rod

1шт.

5

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

6

D30821

ROD

- swing bracket to valve, straight, uses offset clevis

1шт.

7

129-123

NUT,3/8"-24, G5

3шт.

8

L11182

YOKE,3/8" - 24

CLEVIS - 3/8", offset, used on models with or without extendable dipper

1шт.

9

213-41

ADJUSTABLE CLEVIS,3/8"-24

straight, metal, plated, replaces fiberglass clevis on some models 3/8"-24

2шт.

10

D89317

SHAFT

- swing pedal

2шт.

11

141-54

CLEVIS PIN,3/8" x 1 1/16"

3шт.

12

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

13

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

14

D92817

BRACKET

- swing pedal shaft

2шт.

15

219-17

LUBE NIPPLE,3/16" NPTF

NIPPLE, LUBE, , Straight 3/16" x .55" lg, Drive

4шт.

16

11-632

BOLT,Short NK, 3/8"-16 x 2", G2

CARRIAGE BOLT - 3/8" - 16 NC x 2"

4шт.

17

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

20

D87888

PEDAL

- swing, left-hand

1шт.

21

D87886

PEDAL

- swing, right-hand

1шт.

22

138-304

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2шт.
