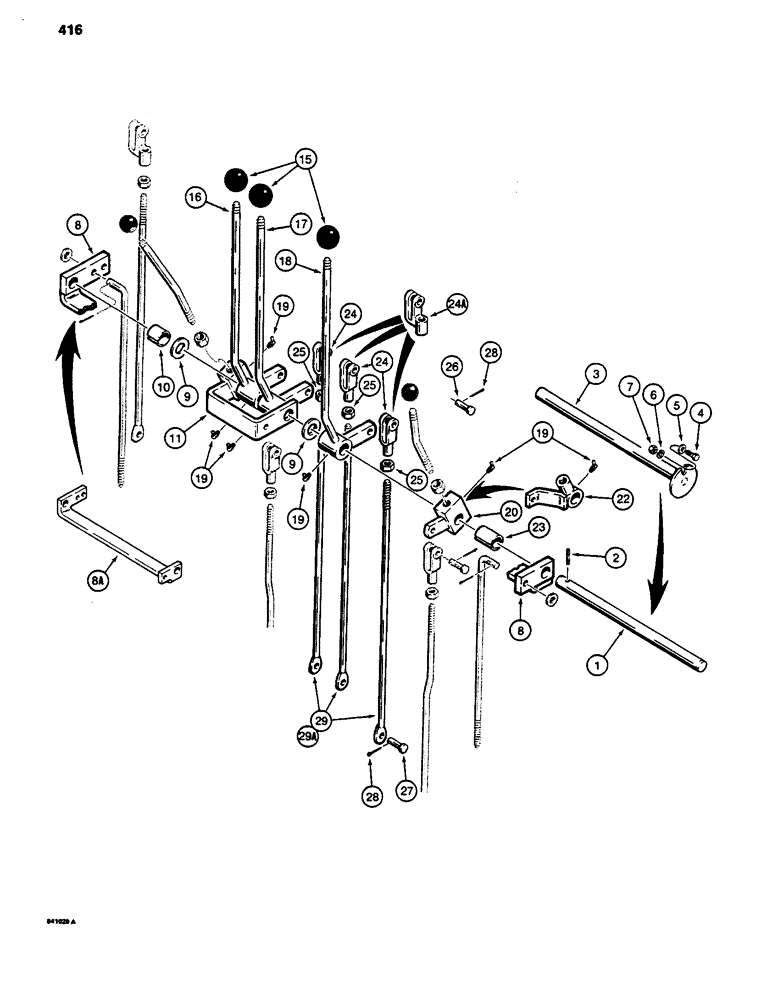

Запчасти Case 480D (416) - BACKHOE CONTROLS WITH FOOT SWING, BOOM, DIPPER, AND BUCKET CONTROL LEVERS & LINKAGE 480D MODELS ONLY (84) - BOOMS, DIPPERS & BUCKETS

1

D79526

ROD

SHAFT - control levers, used with D84083 control tower, see Figure 408, if used

1шт.

2

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , If used 1/4" x 1 1/4", Slotted

1шт.

3

D123224

SHAFT

- control levers, used with D123189 control tower, see Figure 408, if used

1шт.

4

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Teflon coated, if used Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

5

195-133

WASHER,5/16" x 3/4" x .065"

- flat, 1/4", black Teflon coated, if used

1шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used 1/4"

1шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, If used

1шт.

8

D86082

BRACKET

- swing pivot, no longer used, order D129392 bracket

1шт.

8a

D129392

BRACKET

- swing pivot

1шт.

9

195-545

WASHER,3/4", SAE

- flat, 3/4", plated, used as a shim

1шт.

10

D88212

BUSHING

SPACER - left-hand, not used with extendable dipper

1шт.

11

D92993

BRACKET

- left-hand stabilizer pivot

1шт.

12

RESERVED

1шт.

13

RESERVED

1шт.

14

RESERVED

1шт.

15

L54563

KNOB

- boom, dipper, and bucket control levers

3шт.

16

D99173

HANDLE

CONTROL LEVER - bucket

1шт.

17

D99172

HANDLE

CONTROL LEVER - dipper

1шт.

18

D99171

HANDLE

CONTROL LEVER - boom

1шт.

19

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 90 degree, 1/4" - 28 NF taper

3-6шт.

20

D92995

LEVER

- pivot, right-hand stabilizer on models without extendable dipper

1шт.

21

RESERVED

1шт.

22

D87834

LEVER

- pivot, right-hand stabilizer on models with extendable dipper

1шт.

23

D88213

SPACER

- right-hand, not used with extendable dipper

1шт.

24

213-41

ADJUSTABLE CLEVIS,3/8"-24

straight, metal, plated, replaces fiberglass clevis on some models, used on models without extendable dipper 3/8"-24

3шт.

24a

L11182

YOKE,3/8" - 24

CLEVIS - 3/8", offset, used on models with extendable dipper

3шт.

25

129-123

NUT,3/8"-24, G5

3шт.

26

141-54

CLEVIS PIN,3/8" x 1 1/16"

3шт.

27

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

3шт.

28

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

6шт.

29

D81902

ROD

- boom, dipper, and bucket control, straight, models without extendable dipper

3шт.

29a

D30821

ROD

- boom, dipper, and bucket control, straight, models with extendable dipper, uses offset clevis (item 24A)

3шт.
