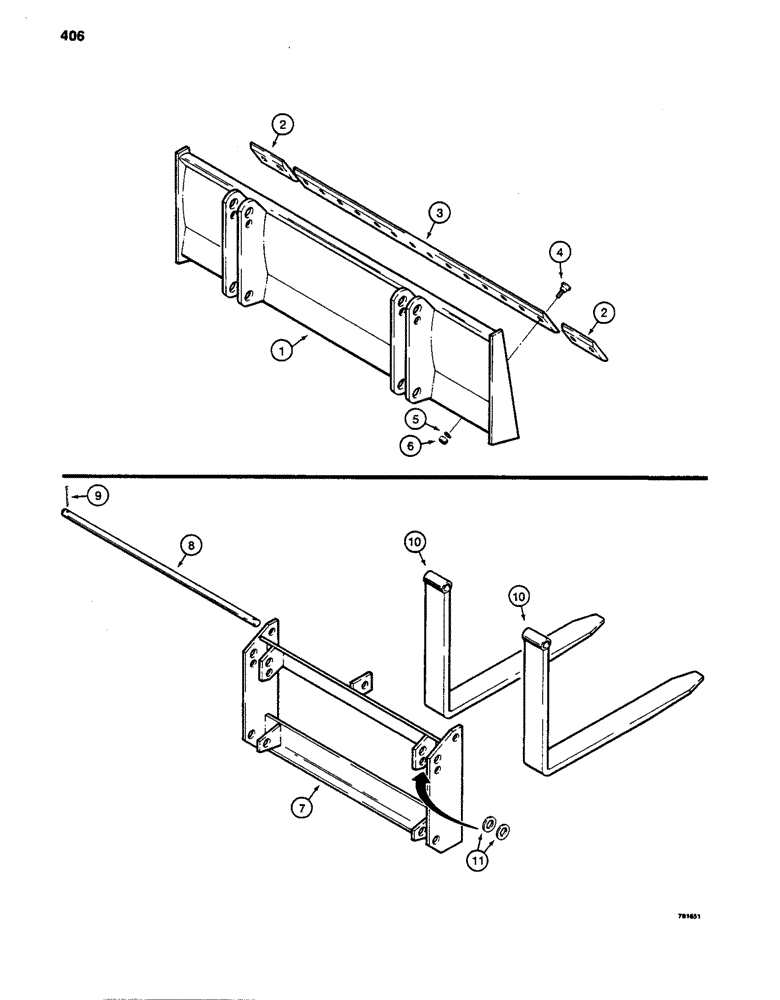

Запчасти Case 480D (406) - LOADER BLADE (82) - FRONT LOADER & BUCKET

REF

INSTRUCTION

BLADE ASSEMBLY - loader, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - loader

1шт.

2

38150

EDGE

CUTTING EDGE - blade, end

2шт.

3

NLS

NO LONGER SERVICED

CUTTING EDGE - blade, center

1шт.

4

118-331

PLOW BOLT,1/2"-13 x 1 3/4", G5

- cutting edge, 1/2" - 13 NC x 1-3/4", plated

18шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

18шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

18шт.

7

D69200

FRAME

- pallet forks

1шт.

8

D69201

BAR

SHAFT - fork mounting, pallet

1шт.

9

132-152

PIN

COTTER PIN - 1/4" x 1-3/4", pallet forks

2шт.

10

D47999

FORK

PALLET FORK - loader

2шт.

11

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

SPACER - cylinder rod eye, if used, pallet forks

4шт.
