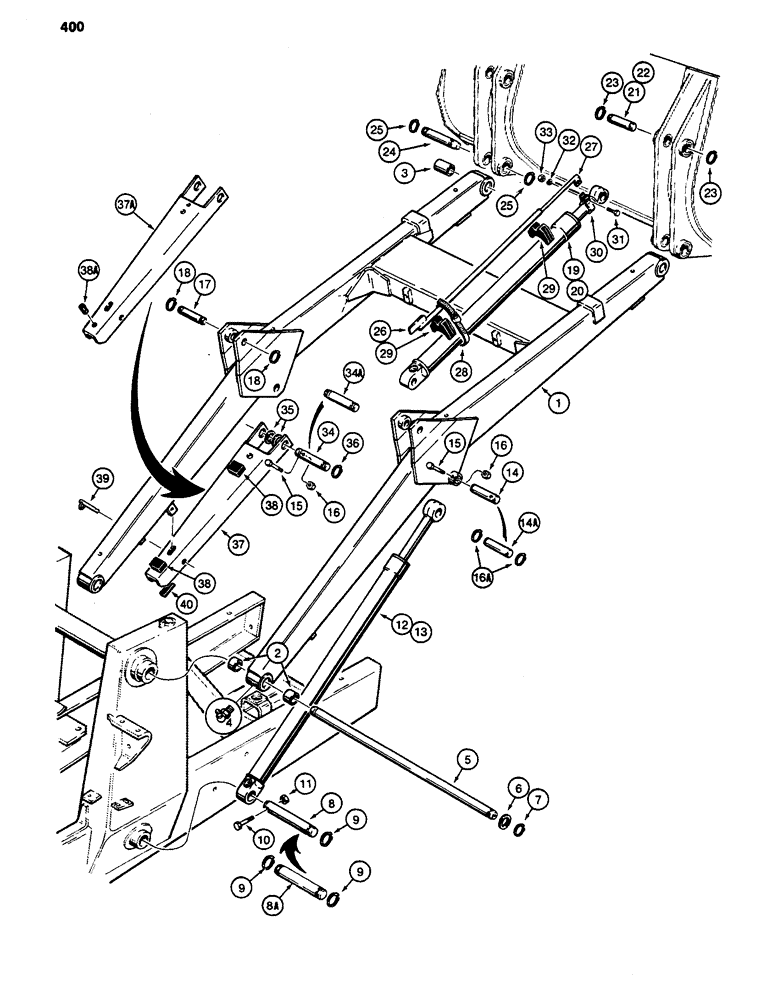

Запчасти Case 480D (400) - LOADER FRAME AND MOUNTING PARTS (82) - FRONT LOADER & BUCKET

1

D80087

ARM ASSY.

LOADER FRAME - lift, Includes: Ref. 2 and 3

1шт.

2

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- loader lift frame pivot

4шт.

3

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

- bucket pivot

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

2шт.

5

D129819

SHAFT

PIN - pivot

1шт.

6

D62194

WASHER

- flat, special

2шт.

7

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

8

D62193

PIN

- lift cylinder pivot, if used

2шт.

8a

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

PIN - lift cylinder pivot, if used

2шт.

9

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2-4шт.

10

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

If used Hex, 3/8"-16 x 3 1/4", G5

2шт.

11

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated, if used

2шт.

12

REF

INSTRUCTION

CYLINDER - loader lift, left-hand, parts list Figure 366

1шт.

13

REF

INSTRUCTION

CYLINDER - loader lift, right-hand, parts list Figure 366

1шт.

14

D67357

PIN

- right-hand lift cylinder to loader frame, with hole for bolt and nut, if used, see Figure 398 for pin used on models with antirollback

1шт.

14a

D44881

PIN,38.1mm OD x 136.4mm L

- right-hand lift cylinder to loader frame, without hole, used with Ref. 16A, if used

1шт.

15

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

If used Hex, 3/8"-16 x 2 3/4", G5

2шт.

16

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated, if used

2шт.

16a

D25279

SNAP RING,M35, Int

- pin retaining, if used

2шт.

17

D32933

PIVOT PIN,31.75mm OD x 127mm L

PIN - tilt cylinder pivot

2шт.

18

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

19

REF

INSTRUCTION

CYLINDER - bucket, right-hand, parts list Figure 368

1шт.

20

REF

INSTRUCTION

CYLINDER - bucket, left-hand, parts list Figure 368

1шт.

21

D34316

PIN

-, Serial Range: cylinder-bucket

2шт.

22

D32933

PIVOT PIN,31.75mm OD x 127mm L

PIN - cylinder to blade or pallet forks

2шт.

23

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

24

NLS

NO LONGER SERVICED

-, Serial Range: frame-bucket

2шт.

25

D25279

SNAP RING,M35, Int

- pin retaining

4шт.

26

D80277

TUBE

- bucket level indicator

1шт.

27

D80275

ROD

- bucket level indicator

1шт.

28

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - indicator tube to cylinder tube

2шт.

29

D38648

BLOCK

SPACER - rubber, tube

2шт.

30

D74356

CLAMP

- indicator rod to cylinder rod

1шт.

31

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

34

D80739

PIN

- left-hand lift cylinder to loader frame, with hole for bolt and nut, if used

1шт.

34a

D28649

PIN

- left-hand lift cylinder to loader frame, without hole, if used

1шт.

35

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

1шт.

36

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

37

D77765

STRUT

- support, loader frame, no longer available, for service order D121846 strut and (2) D121047 grommet

1шт.

37a

D121846

STRUT

- support, loader frame

1шт.

38

D79692

PAD

- strut, used with D77765 strut

2шт.

38a

D121047

GROMMET

- strut, used with D121846 strut

2шт.

39

L78801

AXLE PIN

PIN - 1/2" (13 mm) diameter

1шт.

40

D89691

STRIP

PAD - rubber, cylinder rod protection, used with D77765 strut

1шт.

41

345-44

ADHESIVE

- spray can, 23 oz., for attaching rubber pads to metal surface, not shown

1шт.
