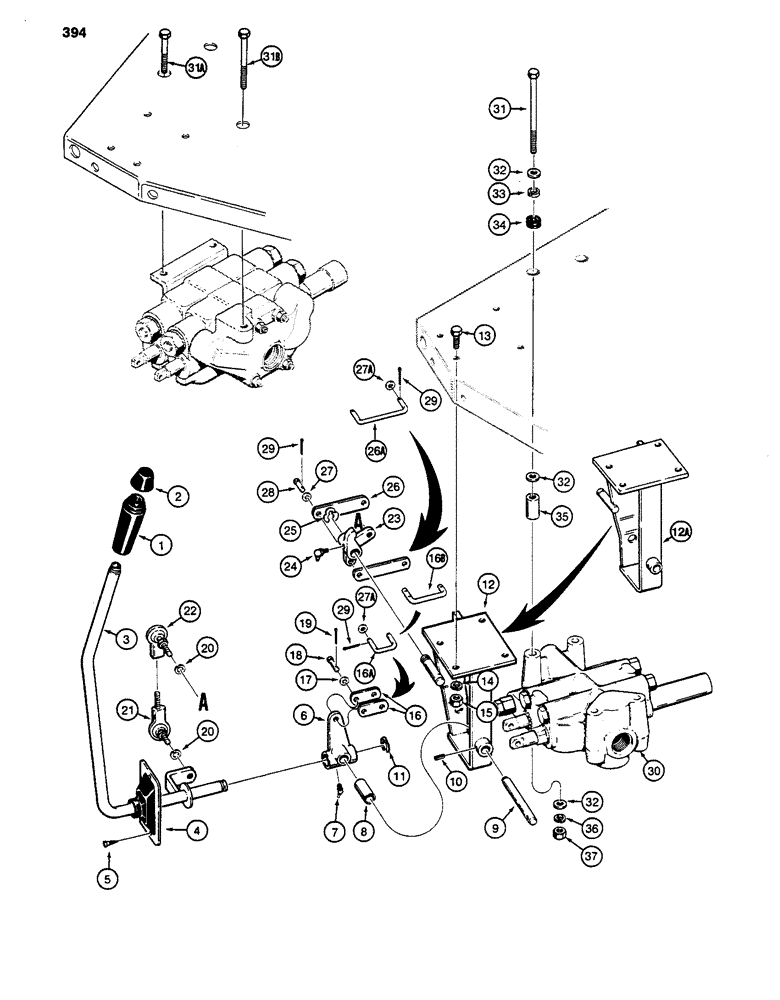

Запчасти Case 480D (394) - LOADER CONTROLS - SINGLE CONTROL LEVER (82) - FRONT LOADER & BUCKET

1

D91439

TUBE

KNOB - control lever, see Figure 106 for clutch cutout switch and wire

1шт.

2

D125880

BOOT

COVER - switch, see Figure 106 for switch

1шт.

3

D99749

LEVER

CONTROL LEVER - loader lift and bucket

1шт.

4

D72302

BOOT

- control lever, used on 480D models only

1шт.

5

187-329

SELF-TAP SCREW,Pan, 0.19"-16 x 1/4"

SCREW - pan head, self-tapping, No. 10 x 1/2", used on 480D models only

2шт.

6

D99750

BLOCK

- pivot

1шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, special short, 1/8" NPT

1шт.

8

D81147

SPACER

SLEEVE - spacer, shaft

1шт.

9

D64790

SHAFT

- pivot block

1шт.

10

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

11

D95097

RING, SNAP

RING - retaining, control lever

1шт.

12

D67594

MOUNTING PARTS

BRACKET - control lever and linkage, used on models with Parker control valve

1шт.

12a

D128700

BRACKET

- control lever and linkage, used on models with Case control valve

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

16

D69601

LINK

- connecting, lift spool, used on models with Parker control valve, if used

2шт.

16a

D122561

DRAG LINK

LINK - connecting, lift spool, used on models with Parker control valve, if used

1шт.

16b

D127648

LINK

- connecting, lift spool, used on models with Case control valve

1шт.

17

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, spacer, if used

1шт.

18

141-53

CLEVIS PIN,5/16" x .940"

plated, used with Ref. 16 link 5/16" x .940"

2шт.

19

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

D64789

JOINT

BALL JOINT - 3/8", long, bucket spool

1шт.

22

D64925

JOINT

BALL JOINT - 3/8", short, bucket spool

1шт.

23

D72232

CRANK

BELLCRANK - bucket spool

1шт.

P/N D72232 pin (shaft) coming off P/N D72232, weldment shaft P/N D64791 or complete bracket P/N D146674

1шт.

24

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 90 degree, 1/4" - 28 NF taper

1шт.

25

D95096

SNAP RING,M15.88 x 1.27mm Thk

- retaining

1шт.

26

D64746

LINK

- connecting, bucket spool, if used

2шт.

26a

D121193

LINK

- connecting, bucket spool, if used

1шт.

27

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, spacer

1шт.

27a

195-102

WASHER,1/4"

- flat, , plated, if used 1/4"

4шт.

28

141-53

CLEVIS PIN,5/16" x .940"

plated, used with Ref. 26 link 5/16" x .940"

2шт.

29

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

30

REF

INSTRUCTION

CONTROL VALVE - loader, two spool, parts list Figures 296 and 306

1шт.

31

113-258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

Used with Parker control valve Hex, 3/8"-16 x 6", G5

4шт.

31a

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Used with Case control valve Hex, 3/8"-16 x 2 3/4", G5

2шт.

31b

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

Used with Case control valve Hex, 3/8"-16 x 3 1/4", G5

1шт.

32

95-6

WASHER,3/8"

- flat, , 9 used with Case, 12 used with Parker control valve 3/8"

9-12шт.

33

D123465

SPACER

- split, 3 used with Case, 4 used with Parker control valve

3-4шт.

34

D64797

GROMMET

T - control valve mounting, 3 used with Case, 4 used with Parker control valve

3-4шт.

35

D64745

SPACER

- control valve mounting, 3 used with Case, 4 used with Parker control valve

3-4шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 3 used with Case; 4 used with Parker control valve 3/8"

3-4шт.

37

R129-103

NUT - hex, 3/8" - 16 NC, plated, 3 used with Case, 4 used with Parker control valve

3-4шт.
